About the product

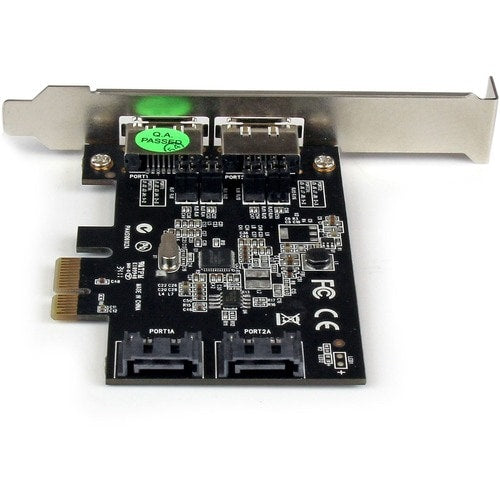

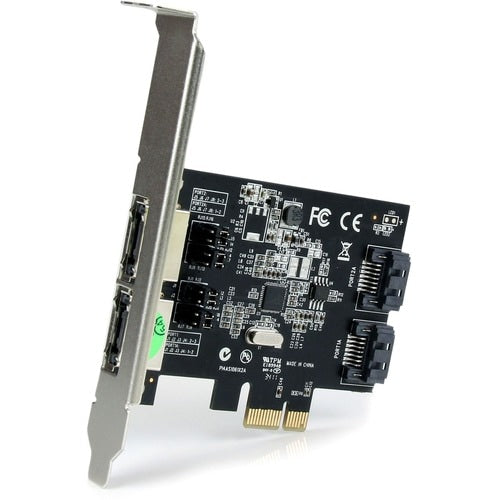

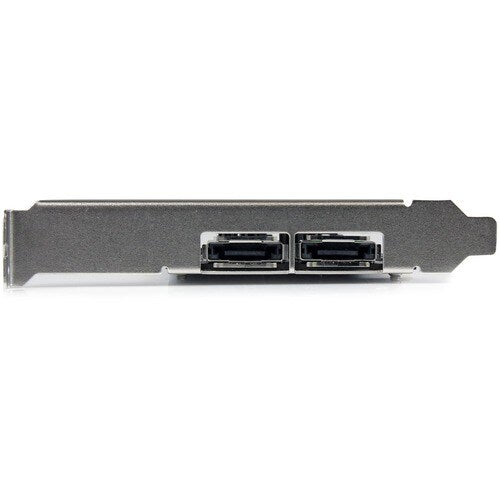

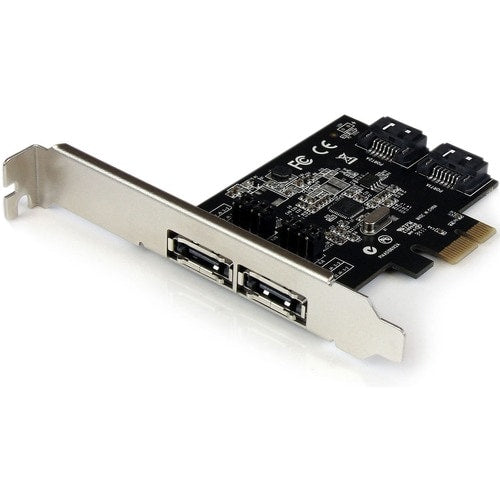

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.
More from the Manufacturer
- Two internal/external switchable SATA ports
- Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth
- Support for SATA-based optical drives (CD/DVD/BD)
- Uses existing SATA I/II cabling
- Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands
- Port Multiplier FIS-based and Command-based switching supported
- Compliant with PCI Express 2.0 standards
- Includes Low Profile/Half-Height installation bracket
Technical Specifications
| Technical Information | |
| Host Interface | PCI Express x1 |
| Controller Type | Serial ATA/600 |
| Interfaces/Ports | |
| Total Number of SATA Ports | 4 |
| Number of SATA Ports (Internal) | 2 |
| Number of SATA Ports (External) | 2 |
| Physical Characteristics | |
| Weight (Approximate) | 1.70 oz (48.19 g) |
| Form Factor | Plug-in Card |
| Length | 4.80" (121.92 mm) |
| Height | 0.80" (20.32 mm) |
| Width | 3.60" (91.44 mm) |
| General Information | |
| Product Type | SATA Controller |
| Manufacturer Part Number | PEXESAT322I |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | PCIe SATA Controller |
| Brand Name | StarTech.com |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | PC |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| WEEE | |
| RoHS | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
