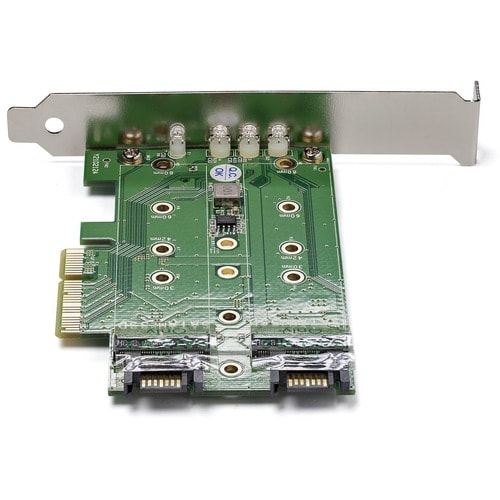

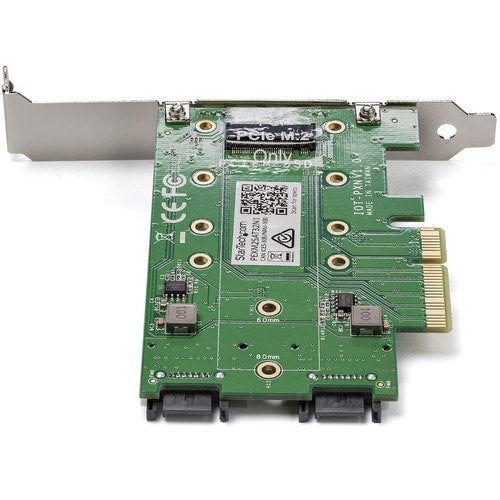

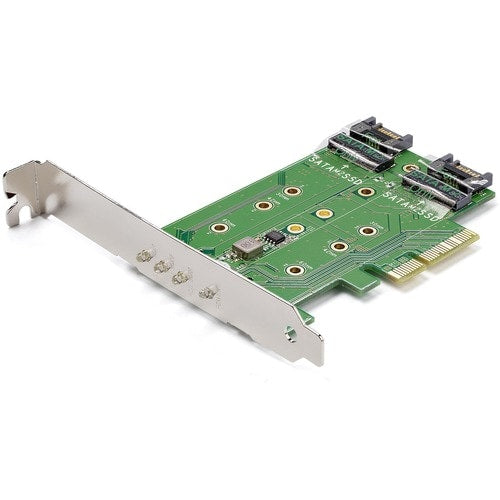

StarTech.com M.2 Adapter - 3 Port - 1 x PCIe (NVMe) M.2 - 2 x SATA III M.2

StarTech.com M.2 Adapter - 3 Port - 1 x PCIe (NVMe) M.2 - 2 x SATA III M.2

Regular price $54.24 CAD
Regular price $62.38 CAD Sale price $54.24 CAD
-13% OFF Ask for quote
Shipping calculated at checkout.
StarTech.com M.2 Adapter - 3 Port - 1 x PCIe (NVMe) M.2 - 2 x SATA III M.2 - SSD PCIE M.2 Adapter - M2 SSD - PCI Express SSD - Mount both PCIe (NVMe) and SATA based M.2 SSDs inside your computer using this PCI Express adapter card - 3-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe (NVMe) 2 x SATA III M.2 - PCIe 3.0 - PCI Express 3.0 M.2 NGFF card expands your computer's storage

VPN:PEXM2SAT32N1SKU:2489CQCM UPC:65030865708

  • INCREASED PRODUCTIVITY: The M.2 NVME card provides a platform for up to 3x M.2 SSDs (solid-state drives) to any computer that has a PCIe slot. It supports common M.2 SATA SSDs and newer high-performance M.2 PCIe drives
  • BETTER PERFORMANCE: This 3-port PCIe M.2 adapter card works two M.2 SATA drives and a single NVMe M.2 drive with support for PCIe 3.0 x4 (40Gbps); Includes standard and low-profile brackets; Power and Activity LED Indicators
  • MAXIMUM COMPATIBILITY: This PCI express card lets you take advantage of NGFF M.2 SSDs. M.2 drives that are smaller than typical platter drives; Supports most drive sizes: 2280, 2260, 2242 and 2230; Compatible with PCIe x4 slot or greater

Volume discount available - Ask for quote..

View full details

Recently Viewed

StarTech.com M.2 Adapter - 3 Port - 1 x PCIe (NVMe) M.2 - 2 x SATA III M.2

Product information summary

StarTech.com M.2 Adapter - 3 Port - 1 x PCIe (NVMe) M.2 - 2 x SATA III M.2

About the product

  • INCREASED PRODUCTIVITY: The M.2 NVME card provides a platform for up to 3x M.2 SSDs (solid-state drives) to any computer that has a PCIe slot. It supports common M.2 SATA SSDs and newer high-performance M.2 PCIe drives
  • BETTER PERFORMANCE: This 3-port PCIe M.2 adapter card works two M.2 SATA drives and a single NVMe M.2 drive with support for PCIe 3.0 x4 (40Gbps); Includes standard and low-profile brackets; Power and Activity LED Indicators
  • MAXIMUM COMPATIBILITY: This PCI express card lets you take advantage of NGFF M.2 SSDs. M.2 drives that are smaller than typical platter drives; Supports most drive sizes: 2280, 2260, 2242 and 2230; Compatible with PCIe x4 slot or greater
  • HELPS WITH DATA RECOVERY: For your failed laptop with functioning M.2 drive, plug this M.2 SATA card to your desktop/workstation to recover your data; A pass-through SATA port connects to an additional drive for convenient data transfer or drive recovery
  • THE IT PRO'S CHOICE: Designed and built for IT professionals, this TAA compliant 3-port PCIe M.2 adapter card is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
  • Technical Specifications

    Miscellaneous
    Additional InformationConnector(s)
    • Connector Type(s): 1 - PCI Express x4
    • Internal Ports: 2 - M.2 (SATA, B-Key, NGFF); 1 - M.2 (PCIe, M-Key, AHCI/NVMe, NGFF); 2 - SATA (7 pin, Data)
    Environmental
    • Operating Temperature: 5°C to 50°C (41°F to 122°F)
    • Storage Temperature: -25°C to 70°C (-13°F to 158°F)
    • Humidity: 20%~80% RH (Non-condensing)
    Hardware
    • Ports: 3
    • Interface: M.2 SATA; SATA; M.2 PCIe;
    • Bus Type: PCI Express
    • Card Type: Standard Profile (LP bracket incl.)
    • Port Style: Integrated on Card
    • Industry Standards: Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps); PCI Express 3.0
    Indicators

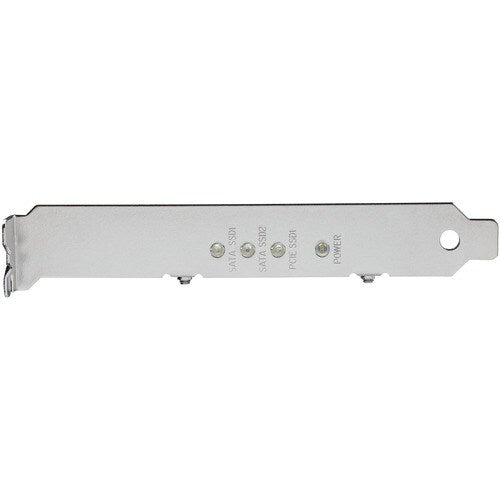

    • LED Indicators: 3 - M.2 drive status/activity; 1 - Power
    Package Contents
    • 3-port M.2 NGFF SSD Adapter Card
    • 1 x Low-Profile Bracket
    • 3 x M.2 Mounting Screws
    • 3 x M.2 Mounting Standoffs
    • 3 x M.2 Mounting Nuts
    • 1 x Screw Driver
    • 1 x Quick Start Guide
    Certifications & Standards
    • CE
    • FCC
    Country of OriginTaiwan
    Environmentally FriendlyYes
    TAA CompliantYes
    General Information
    Product TypeM.2 NVMe to PCIe Adapter
    Manufacturer Part NumberPEXM2SAT32N1
    Manufacturer Website Addresshttp://www.startech.com
    Packaged Quantity1 Each
    ManufacturerStarTech.com
    Product Name3-port M.2 NGFF SSD Adapter Card
    Brand NameStarTech.com
    Physical Characteristics
    Weight (Approximate)2.29 oz (65 g)
    Length4.70" (119.38 mm)
    Height4.70" (119.38 mm)
    Width0.80" (20.32 mm)
    Product ColorGreen
    Color FamilyGreen
    Product MaterialSteel
