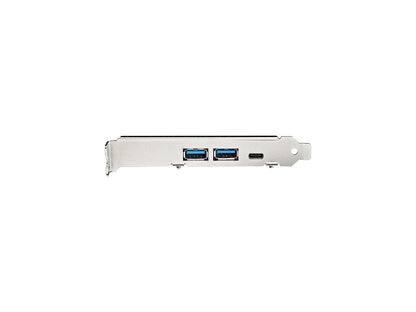

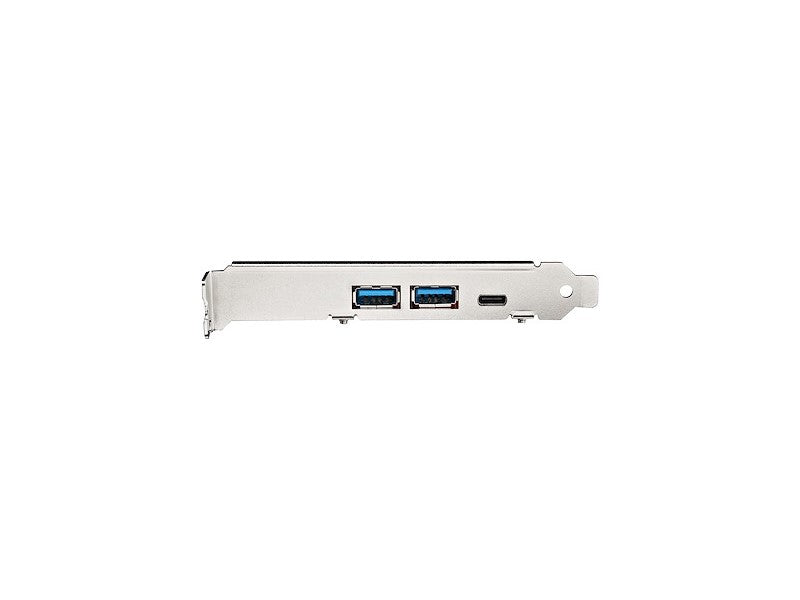

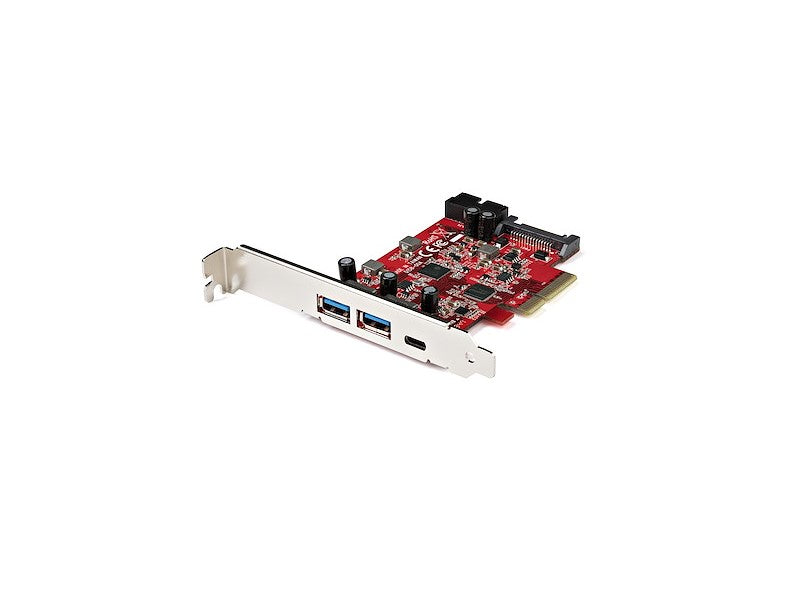

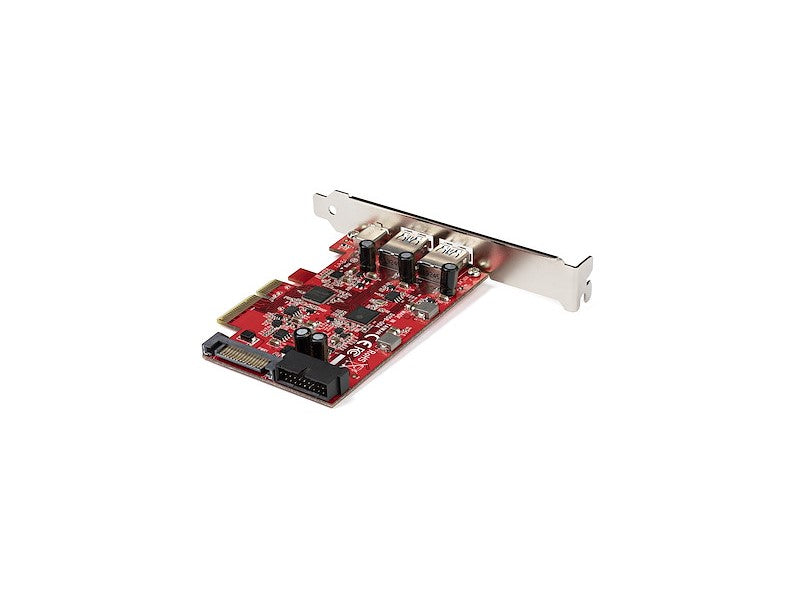

Startech.Com 5-Port Usb Pcie Card, 10Gbps Usb 3.1 Gen 2 Pcie Card

Name: Startech.Com 5-Port Usb Pcie Card, 10Gbps Usb 3.1 Gen 2 Pcie Card
Brand: Startech
SKU: T295579
Price: 97.66 CAD
Availability: InStock

$97.66 CAD

~~$107.42 CAD~~ $97.66 CAD

-9% OFF Ask for quote

Shipping calculated at checkout.

Startech.Com 5-Port Usb Pcie Card, 10Gbps Usb 3.1 Gen 2 Pcie Card W/ 1X Usb-C & 2X Usb-A, 1X 2 Port Idc (Internal 5Gbps Usb Header Expansion), Usb C Pcie Card, Pci Express Usb Controller - Windows/Macos/Linux (Pexusb312A1C1H) - Usb Adapter - Pcie 3.0 X4 - Usb-C 3.1 Gen 2 X 2 + Usb-C 3.2 Gen 2 X 1

VPN:PEXUSB312A1C1H SKU:T295579 UPC:65030888325

Quantity

Volume discount available - Ask for quote..

View full details

Product information summary

Startech.Com 5-Port Usb Pcie Card, 10Gbps Usb 3.1 Gen 2 Pcie Card

About the product

2x USB 3.2 Gen 2x1 (10Gbps) Type-A - 1x USB 3.2 Gen 2x1 (10Gbps) Type-C 2x1 - 2x USB 3.2 Gen 1x1 (5Gbps) IDC.

Technical Specifications

Primary Information
Product Description:	StarTech.com 5-Port USB PCIe Card, 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A, 1x 2 Port IDC (Internal 5Gbps USB Header Expansion), USB C PCIe Card, PCI Express USB Controller - Windows/macOS/Linux (PEXUSB312A1C1H) - USB adapter - PCIe 3.0 x4 - USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1
Device Type:	USB adapter
Form Factor:	Plug-in card
Interface (Bus) Type:	PCI Express 3.0 x4
Ports:	USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1
Dimensions (WxDxH):	2.7 in x 4 in x 0.6 in
Weight:	2.12 oz
Data Link Protocol:	USB 3.2 Gen 2, USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 1
Data Transfer Rate:	10 Gbps
Processor:	ASMedia ASM1142
Compliant Standards:	USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 1, USB 3.2 Gen 2
Color:	Red
System Requirements:	Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 3.5 or later, Linux LTS versions only, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0
Manufacturer Warranty:	2-year warranty
General
Device Type:	USB adapter
Form Factor:	Plug-in card
Interface (Bus) Type:	PCI Express 3.0 x4
Networking
Ports:	USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1
Connectivity Technology:	Wired
Data Link Protocol:	USB 3.2 Gen 2, USB 2.0, SuperSpeed USB 3.0, USB 3.1, USB 3.2 Gen 1
Data Transfer Rate:	10 Gbps
Features:	UASP
Compliant Standards:	USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 1, USB 3.2 Gen 2
Processor / Memory
Processor:	ASMedia ASM1142
Expansion / Connectivity
Interfaces:	2 x USB 3.1 Gen 2 - 9 pin USB Type A ¦ 1 x USB 3.2 Gen 2 - 24 pin USB-C ¦ 1 x SATA power - 15 pin Serial ATA power (internal) ¦ 1 x USB 3.0 - 20 pin IDC (internal)
Miscellaneous
Included Accessories:	Low-profile bracket
MTBF:	1,677,495 hours
Compliant Standards:	UASP (USB Attached SCSI Protocol), RoHS, WEEE, FCC
Color:	Red
Software / System Requirements
OS Required:	Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019, Linux 3.5 or later, Linux LTS versions only, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Apple macOS Ventura 13.0
