About the product

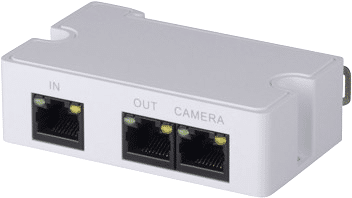

Dahua POE Passive Extender Features:
- Supports Passive PoE Cascade Power Supply and Ethernet Data Exchange
- Supports IEEE 802.3af/at Standard Power Supply for Network Cameras
- Interfaces with Hi-PoE Midspan (DH-PFT1200)
- Cascade Level 2 PoE Extender
- Connect to Three Network Cameras with a Maximum Transmission Distance of 300 m (984 ft)
- One (1) RJ45 10/100 Mbps PoE Power Supply Input
- One (1) RJ45 10/100 Mbps Power Supply for Network Camera
- One (1) RJ45 10/100 Mbps Power Supply for Subsequent Extender
- Junction Box Internal Mounting or DIN Rail Mounting
Dahua POE Passive Extender Specifications:
- Ethernet port 1*10/100 Base-T PoE power receiving port 1*10/100 Base-T PoE power supply port, supply power for the next extender 1*10/100 Base-T PoE power supply port, supply power for IPC
- Transmission Distance Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, IPC power consumption <=8W), transmission distance is 300m
- Power Consumption <=3W
- Application Humidity 10%-90%
- High&Low temperature -30°-65°
- Weight 57g
- Dimension(W × D×H) 79mm× 52mm× 23mm
Technical Specifications
Dahua POE Passive Extender Features:
- Supports Passive PoE Cascade Power Supply and Ethernet Data Exchange
- Supports IEEE 802.3af/at Standard Power Supply for Network Cameras
- Interfaces with Hi-PoE Midspan (DH-PFT1200)
- Cascade Level 2 PoE Extender
- Connect to Three Network Cameras with a Maximum Transmission Distance of 300 m (984 ft)
- One (1) RJ45 10/100 Mbps PoE Power Supply Input
- One (1) RJ45 10/100 Mbps Power Supply for Network Camera
- One (1) RJ45 10/100 Mbps Power Supply for Subsequent Extender
- Junction Box Internal Mounting or DIN Rail Mounting
Dahua POE Passive Extender Specifications:
- Ethernet port 1*10/100 Base-T PoE power receiving port 1*10/100 Base-T PoE power supply port, supply power for the next extender 1*10/100 Base-T PoE power supply port, supply power for IPC
- Transmission Distance Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, IPC power consumption <=8W), transmission distance is 300m
- Power Consumption <=3W
- Application Humidity 10%-90%
- High&Low temperature -30°-65°
- Weight 57g
- Dimension(W × D×H) 79mm× 52mm× 23mm
