About the product

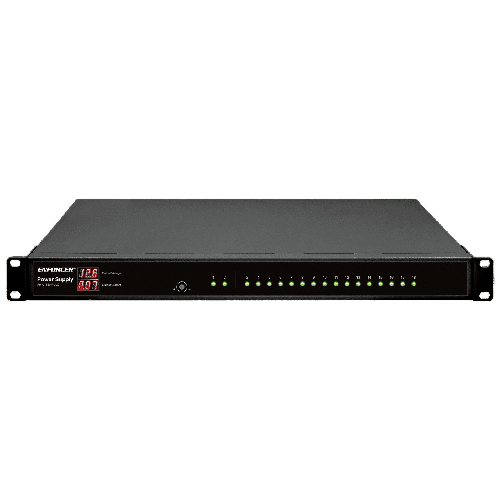

The ENFORCER Rack-Mount DC CCTV Power Supply includes a LCD display of output current and voltage and fits into standard 19” IT racks to integrate smoothly into an existing rack-mount setup. The unit provides flexible power and mounting options to best suit a company’s CCTV power needs in an attractive, compact package.
Seco-Larm Rack-Mount DC CCTV Power Supply - 18 Outputs, 20 Amps Features:
- 18 Outputs, 20A total
- PTC fuse protected outputs, 16 outputs at 1.6A and 2 outputs at 5A
- 11.7~13.6 VDC field-adjustable output
- 110/220 VAC Input with selection switch
- LCD Display of output voltage and total output current
- LED Status indicators for each output
- Removable screw terminal blocks for convenient installation and reliable connections
- For rack mounting or stacking on a shelf
- Compact 1U size fits standard racks
- Attractive, high-tech industrial design
Seco-Larm Rack-Mount DC CCTV Power Supply - 18 Outputs, 20 Amps Specifications:
- Input Voltage 110~220 VAC
- Fuse type PTC*
- Adjustable Output Voltage Range 11.7~13.6 VDC
- Number of Outputs 18
- Max. Current per Output Ch. 1~2: 5A Ch. 3~18: 1.6A
- Total Supply Current 20A@12VDC max.
- Dimensions 1-3/4? x 17-1/2? x 7-7/8? (45 x 445 x 200 mm)
- Rack-Mount Height 1U
- Weight 5-lb 7-oz (2.47kg)
Technical Specifications
The ENFORCER Rack-Mount DC CCTV Power Supply includes a LCD display of output current and voltage and fits into standard 19” IT racks to integrate smoothly into an existing rack-mount setup. The unit provides flexible power and mounting options to best suit a company’s CCTV power needs in an attractive, compact package.
Seco-Larm Rack-Mount DC CCTV Power Supply - 18 Outputs, 20 Amps Features:
- 18 Outputs, 20A total
- PTC fuse protected outputs, 16 outputs at 1.6A and 2 outputs at 5A
- 11.7~13.6 VDC field-adjustable output
- 110/220 VAC Input with selection switch
- LCD Display of output voltage and total output current
- LED Status indicators for each output
- Removable screw terminal blocks for convenient installation and reliable connections
- For rack mounting or stacking on a shelf
- Compact 1U size fits standard racks
- Attractive, high-tech industrial design
Seco-Larm Rack-Mount DC CCTV Power Supply - 18 Outputs, 20 Amps Specifications:
- Input Voltage 110~220 VAC
- Fuse type PTC*
- Adjustable Output Voltage Range 11.7~13.6 VDC
- Number of Outputs 18
- Max. Current per Output Ch. 1~2: 5A Ch. 3~18: 1.6A
- Total Supply Current 20A@12VDC max.
- Dimensions 1-3/4? x 17-1/2? x 7-7/8? (45 x 445 x 200 mm)
- Rack-Mount Height 1U
- Weight 5-lb 7-oz (2.47kg)
