About the product

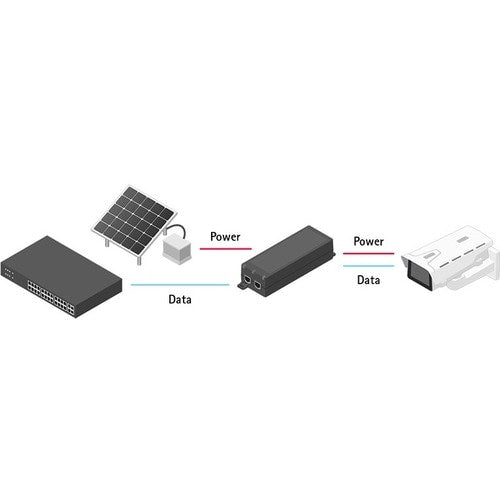

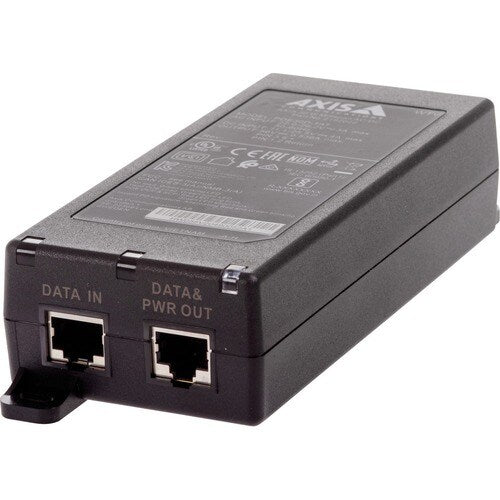

AXIS 30 W Midspan AC/DC is ideal for installations where mains power is not an option. With a power input of either 10-28 V DC or 24 V AC, it can deliver up to IEEE 802.3at (30 W) to your network device. AXIS 30 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 30 W power.
24 V AC can be needed in harsh environments where new cabling or installations are not possible and you need to retrofit box, dome or PTZ cameras.
10-28 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it, for example, in an ATM.
Technical Specifications
| Interfaces/Ports | |
| Input Ports | Gigabit Ethernet |
| Output Ports | PoE |
| Power Description | |
| Maximum Output Power | 30 W |
| Maximum Output Voltage | 56 V DC |
| Miscellaneous | |
| Additional Information |
|
| Compatibility | Network Device |
| NDAA Compliant | Yes |
| General Information | |
| Product Type | PoE Injector |
| Manufacturer Part Number | 02208001 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Name | 30 W Midspan AC/DC |
| Brand Name | AXIS |
| Physical Characteristics | |
| Weight (Approximate) | 233 g |
| Mount Type | Wall/Shelf/DIN Rail-mountable |
| Height | 6.46" (164 mm) |
| Width | 2.56" (65 mm) |
| Depth | 1.46" (37 mm) |
| Product Color | Black |
