About the product

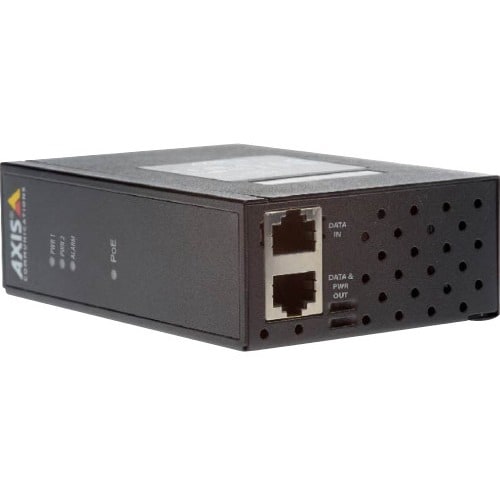

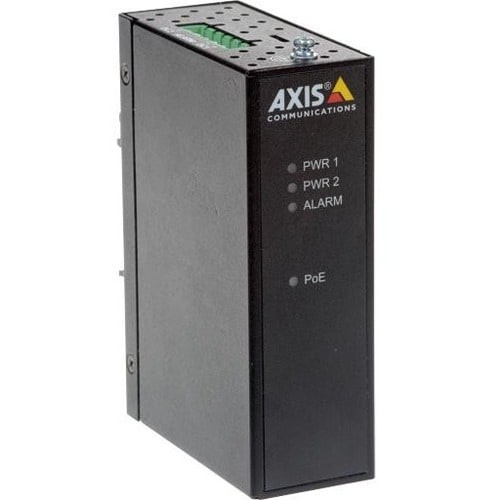

AXIS T8144 60 W Industrial Midspan is an industrial grade 1-port midspan offering an easy, fast and cost-effective solution for powering network products. With a wide operating temperature, from -40 °C to 75 °C (-40 °F to 167 °F), AXIS T8144 is robust in harsh environments. A typical configuration would be to enable PoE to a non-PoE based system (switch, 3G/4G router, or wi-fi access point) creating a compact and effective solution.
AXIS T8144 is ideal for mounting in cabinets or on DIN rail, has dual DC inputs for power redundancy and supports all PoE devices.
Technical Specifications
| Interfaces/Ports | |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x 10/100/1000Base-T |
| Miscellaneous | |
| Compatibility | Axis Products:
|
| Country of Origin | China |
| Power Description | |
| Input Voltage | 20 V DC |
| 60 V DC | |
| Maximum Output Power | 60 W |
| Maximum Output Voltage | 55 V DC |
| General Information | |
| Product Type | PoE Injector |
| Manufacturer Part Number | 01154001 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | T8144 |
| Product Name | T8144 60 W Industrial Midspan |
| Brand Name | AXIS |
| Physical Characteristics | |
| Weight (Approximate) | 315 g |
| Form Factor | Cabinet/DIN Rail |
| Height | 1.42" (36 mm) |
| Width | 3.07" (78 mm) |
| Depth | 4.37" (111 mm) |
| Product Color | Black |
| Color Family | Black |
