About the product

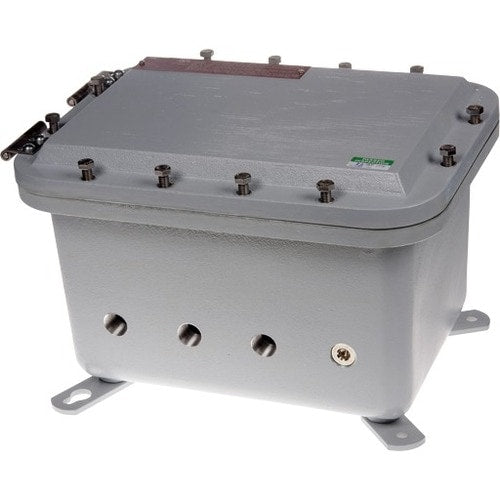

The power supply is UL certified and it is made of epoxy powder coated copper free aluminum with stainless steel cover bolts and hinges. It is pre-mounted with fuses, terminals, RJ45 coupler and 115/230 V AC transformer, which provides 24 V AC for explosion-protected cameras.
To enhance security and ease-of-installation, the power supply has three open 3/4" NPT cable entries for cable conduits. The power supply can connect to 120 V AC, 230 V AC, or 24 V AC.
The operating temperature ranges between -40°C to 55 °C
(-40°F to 131 °F).
Technical Specifications
| Miscellaneous | |
| Compatibility | Axis Network Cameras:
|
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 67.24 lb (30500 g) |
| Form Factor | External |
| Height | 12.50" (317.50 mm) |
| Width | 16.50" (419.10 mm) |
| Depth | 10.35" (262.89 mm) |
| General Information | |
| Product Type | Power Supply |
| Manufacturer Part Number | 5801931 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Name | Ex Power Supply UL |
| Brand Name | AXIS |
| Power Description | |
| Input Voltage | 24 V AC |
| 230 V AC | |
| 120 V AC | |
| Output Power | 120 W |
| Output Voltage | 24 V AC |
| Output Current | 5 A |
| Output Voltage Detail | 24 V AC @ 5 A |
