About the product
48-port switch for efficient network management

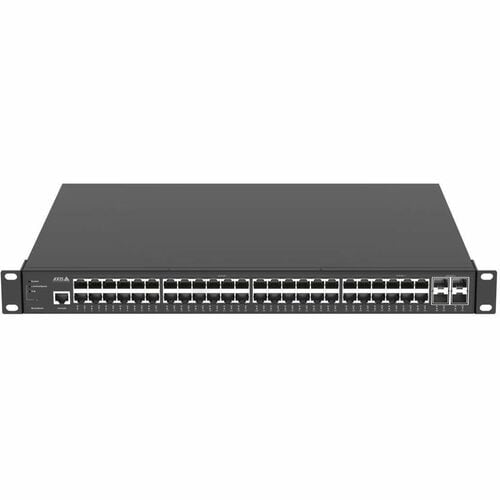

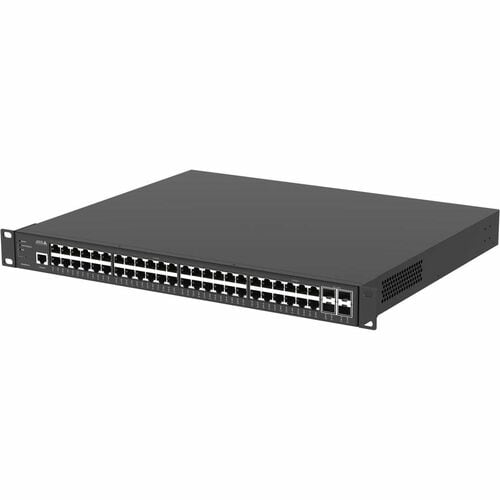

AXIS D8248 Managed PoE++ Switch is an easy to install 48-port managed gigabit switch - a perfect complement to Axis recorders to further simplify setup and installation of surveillance systems. AXIS D8248 comes with an integrated DHCP server for automatic assignment of IP addresses and discovery of connected Axis devices. Furthermore, featuring a familiar Axis interface with a graphic topology for easy overview of devices, AXIS D8248 ensures easy configuration with Axis products.
- 740 W power budget
- Optimized for surveillance solutions
- Compliant with IEEE 802.3bt up to 90 W
- 4 SFP+ ports
- Intuitive graphic topology for system overview
- Gigabit Ethernet port for ultra-fast network speeds
- Rack mounting enables you to organize wires & secure cables for professional installation
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 48 networking ports
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
| I/O Expansions | |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 4 |
| Total Number of Expansion Slots | 4 |
| Management & Protocols | |
| Manageable | Yes |
| Data Link Protocols | HTTPS |
| HTTP | |
| Interfaces/Ports | |
| Uplink Port | Yes |
| Total Number of Network Ports | 48 |
| Port/Expansion Slot Details | 4 x 10 Gigabit Ethernet Expansion Slot |
| 48 x Gigabit Ethernet PoE++ | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1x |
| IEEE 802.3at | |
| IEEE 802.3bt | |
| IEEE 802.1Q | |
| Media & Performance | |
| Network Technology | 10GBase-X |
| 10/100/1000Base-T | |
| Ethernet Technology | Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Physical Characteristics | |
| Weight (Approximate) | 12.39 lb (5620 g) |
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Product Color | Black |
| Color Family | Black |
| Product Material | Steel |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 02620-004 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | D8248 |
| Product Name | D8248 Managed PoE++ Switch |
| Brand Name | AXIS |
| Miscellaneous | |
| Application/Usage | Surveillance |
| Network | |
| Server | |
| Package Contents |
|
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Power Source | AC |
| Frequency | 50 Hz |
| 60 Hz | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 740 W |
