Axis Communications

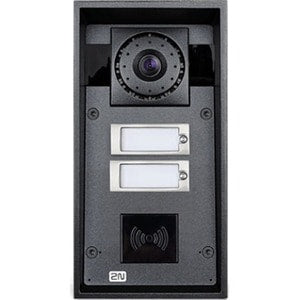

2N IP Force Video Door Phone Sub Station - CMOS - 135° Horizontal - 109° Vertica

2N IP Force Video Door Phone Sub Station - CMOS - 135° Horizontal - 109° Vertica

Regular price $2,197.13 CAD
Regular price Sale price $2,197.13 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Ask for quote
2N IP Force Video Door Phone Sub Station - CMOS - 135° Horizontal - 109° VerticalFull-duplexAluminum - CCTV Camera, Video Management System (VMS)

VPN:01340-001 SKU:PHS312721 UPC:

  • Built for extreme conditions
  • Professional night vision
  • Clear sound in noisy environments

Volume discount available - Ask for quote..

View full details

Recently Viewed

2N IP Force Video Door Phone Sub Station - CMOS - 135° Horizontal - 109° Vertica

Product information summary

2N IP Force Video Door Phone Sub Station - CMOS - 135° Horizontal - 109° Vertica

About the product

TOUGHEST IP INTERCOM IN THE WORLD

2N® IP Force is an extremely durable IP intercom that can withstand even the most demanding conditions. It provides for visitor communication monitoring and access control. Take advantage of its superior features for maximum site security.

  • Built for extreme conditions
  • Professional night vision
  • Clear sound in noisy environments
  • Durable access control solution
  • Wide-angle HD camera
  • Easy integration into CCTV and VMS

Technical Specifications

Power Description
Input Voltage12 V DC
Technical Information
Communication ModeFull-duplex
Camera
Horizontal Viewing Angle135°
Vertical Viewing Angle109°
Image Sensor TypeCMOS
Miscellaneous
Additional Information
  • Signalling Protocol: SIP (UDP, TCP, TLS)
  • Button:
    • Button design: Transparent, white backlit buttons with easily replaceable label
    • Count of buttons: 2
    • Numerical keypad: Optional
  • Audio:
    • Microphone: 2 integrated microphones
    • Amplifier: 10 W (class D)
    • Speaker: 10 W
    • Volume control: Adjustable with automatic adaptive mode
  • Audio Stream:
    • Protocols RTP/RTSP
    • Codecs G.711, G.722, G.729, L 16/16kHz
  • Camera HD:
    • JPEG resolution 1280 (H) x 960 (V)
    • Video resolution 640 (H) × 480 (V)
    • Frame rate Up to 30 snapshots/s
    • Sensor sensitivity: 5.6 V/lux-sec (550 nm) / 1.9 V/lux-sec (550 nm)
    • Infrared light: Yes
  • Video stream:
    • Protocols: RTP/RTSP/HTTP
    • Codecs: H.263, H.263+, H.264, MPEG-4, M-JPEG
    • IP camera function: Yes, ONVIF v2.4 profile S compatible
  • Interface:
    • PoE: PoE 802.3af (Class 0 - 12,95 W)
    • LAN: 10/100BASE-TX with Auto-MDIX, RJ-45
    • Recommended cabling: Cat-5e or higher
    • Passive switch: NO/NC contacts, max. 30 V/1A AC/DC
    • Active switch output: 9 up to 13 V DC depending on power supply, max. 700 mA
  • Mechanical Properties:
    • Operating temperature -40°F to 131 °F
    • Storage temperature -40 °F to 158 °F
    • humidity: 10 % - 95 % (non-condensing)
    • Covering level IP69K and IK10
  • RFID Card Reader:
    • Supported frequencies: 125kHz and 13.56MHz
    • 125 kHz: EM4100, EM4102, HID Proximity
    • 13.56 MHz: ISO14443A, ISO14443B, ISO15693, NFC support
    • reads UID (CSN)
    • reads PACs ID (iCLASS SIO-enabled cards) - only secured cards
Application/UsageCCTV Camera
Video Management System (VMS)
General Information
Product TypeVideo Door Phone Sub Station
Manufacturer Part Number01340-001
Manufacturer Website Addresshttp://www.axis.com
ManufacturerAxis Communications
Product NameIP Force Video Door Phone Sub Station
Product LineIP Force
Brand Name2N
Physical Characteristics
Weight (Approximate)4.41 lb (1999.89 g)
DurabilityWater Resistant
Height8.54" (216.99 mm)
Width4.29" (108.99 mm)
Depth3.27" (83.01 mm)
Product ColorBlack
Product MaterialAluminum
