About the product
Description

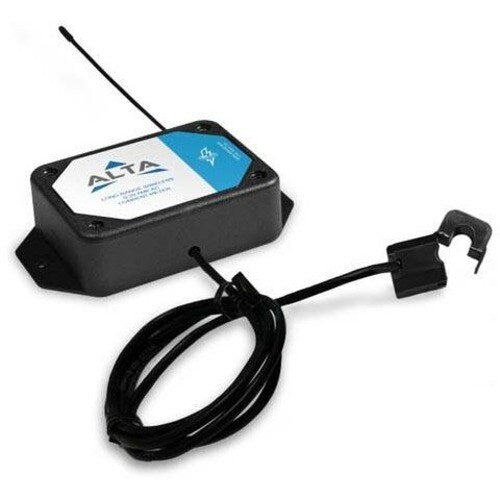

Monnit wireless AC Current Meters measure the RMS current of an alternating current (AC) system using a current transformer (CT) that wraps around the "hot" wire of a two wire (hot, common, ground(optional)) power system. The sensor reports Minimum RMS current, maximum RMS current, average RMS current, and amp hours to the iMonnit system. The iMonnit system is capable of generating watt hour or kilowatt hour readings as well.
Features
- Measures amp hours, max RMS current, min RMS current, and average RMS current.
- Capable of generating Watt Hour or Kilowatt Hour readings using iMonnit.
- Data logging for accumulated amp hour readings.
- Can notify based on current levels or changes in current levels.
- Measures current from 0 - 20 Amps.
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Material Details |
|
| Weight (Approximate) | 3.90 oz (110.563 g) |
| Form Factor | Chassis Mount |
| Height | 1.12" (28.45 mm) |
| Width | 2.47" (62.74 mm) |
| Product Material | Acrylonitrile Butadiene Styrene (ABS) |
| General Information | |
| Product Type | Wireless Current Meter |
| Manufacturer Part Number | MNS2-9-W2-CM-020 |
| Manufacturer Website Address | http://www.monnit.com |
| Packaged Quantity | 1 Each |
| Manufacturer | Monnit Corporation |
| Product Name | ALTA Wireless AC Current Meter Sensor - 20 Amp - AA Battery Powered |
| Package Type | Bulk |
| Product Line | ALTA |
| Brand Name | Monnit |
