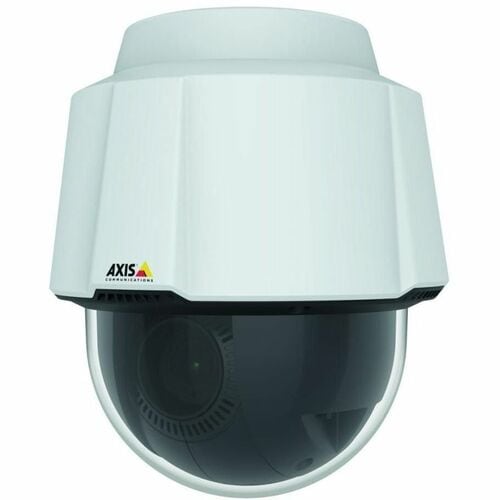

About the product
This cost-effective PTZ camera offers great image quality in HDTV 1080p with 21x optical zoom and wide area coverage with 77° field of view. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. Including Axis Object Analytics, it can detect and classify people and vehicles- all tailored to specific needs. With IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can handle temperatures ranging from -30 °C to 50 °C (-22 °F to 122 °F). Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
- HDTV 1080p with 21x optical zoom
- Wide 77° field of view
- Lightfinder 2.0 and Forensic WDR
- Support for advanced analytics
- Axis Edge Vault safeguards the device
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Storage | |
| Storage Type | Memory Card |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/66500 Second |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 95% |
| Display & Graphics | |
| Color Supported | Color |
| Image Sensor Size | 1/2.8" |
| Image Sensor Type | CMOS |
| Field of View | Horizontal: 77.0°-3.6°, Vertical: 43.1°-2.0° |
| Power Description | |
| Input Voltage | 240 V AC |
| Maximum Power Consumption | 37 W |
| Power Source Type | PoE+ |
| AC | |
| Technical Information | |
| Recording Formats | Full HD |
| Night Vision | Yes |
| HD Recording | Yes |
| Camera Iris | Auto |
| Night Vision Type | Infrared |
| Physical Characteristics | |
| Weight (Approximate) | 5.51 lb (2500 g) |
| Durability | Shock Resistant |
| Form Factor | Dome |
| Diameter | 5.87" (149 mm) |
| Product Color | White |
| Color Family | White |
| Lens | |
| Lens Type | Varifocal |
| Optical Zoom | 21x |
| Maximum Aperture | f/4.5 |
| Maximum Focal Length | 84.6 mm (3.33") |
| Minimum Focal Length | 4 mm (0.16") |
| Minimum Aperture | f/1.6 |
| Lens Included | Yes |
| General Information | |
| Product Type | Network Camera |
| Manufacturer Part Number | 02915001 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | P5654-E Mk II |
| Product Name | P56 P5654-E Mk II Network Camera |
| Product Series | P56 |
| Brand Name | AXIS |
| Video | |
| Video Formats | H.264 |
| H.264 (MPEG-4 Part 10/AVC) | |
| H.264B (MPEG-4 Part 10/AVC) | |
| H.264H (MPEG-4 Part 10/AVC) | |
| H.264M (MPEG-4 Part 10/AVC) | |
| Motion JPEG | |
| H.265 | |
| H.265 (MPEG-H Part 2/HEVC) | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Miscellaneous | |
| Package Contents |
|
| Features | Defog |
| HTTPS Encryption | |
| Human Detection | |
| Privacy Masking | |
| Vehicle Detection | |
| White Balance | |
| Wide Dynamic Range | |
| Ingress Protection | |
| Auto Tracking | |
| Day/Night | |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Network & Communication | |
| Protocols | NTP |
| NTCIP | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SMTP | |
| SNMPv1/v2c/v3 (MIB2) | |
| SRTP/RTSPS | |
| SSH | |
| NTS | |
| MQTT v3.1.1 | |
| mDNS (Bonjour) | |
| ARP | |
| CDP | |
| CIFS/SMB | |
| DDNS | |
| DHCPv4/v6 | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| FTP | |
| HTTP | |
| HTTP/2 | |
| Syslog | |
| TCP | |
| TLS | |
| UDP | |
| UPnP | |
| ZeroConf | |
| HTTPS | |
| ICMP | |
| ICMPv4/ICMPv6 | |
| IEEE 802.1AR | |
| IEEE 802.1X | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
