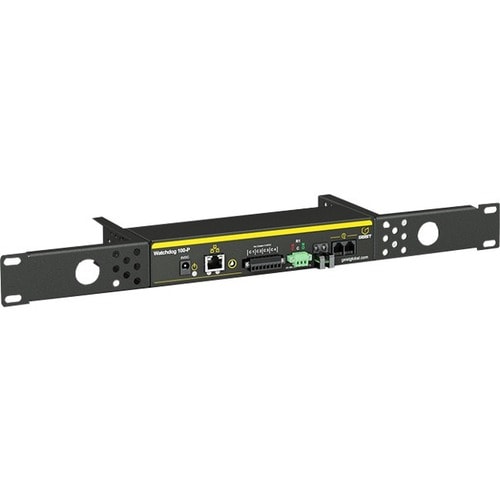

Vertiv Geist Environmental Monitor -Watchdog 100-P

Vertiv Geist Environmental Monitor -Watchdog 100-P

Regular price $0.00 CAD
Regular price $0.00 CAD Sale price $0.00 CAD
-Liquid error (snippets/price line 128): divided by 0% OFF Ask for quote
Shipping calculated at checkout.
Vertiv Geist Environmental Monitor -Watchdog 100-P

VPN:WATCHDOG100-P SKU:PHS596934 UPC:

Loading

Volume discount available - Ask for quote..

View full details

Recently Viewed

Vertiv Geist Environmental Monitor -Watchdog 100-P

Product information summary

Vertiv Geist Environmental Monitor -Watchdog 100-P

About the product

Environmental factors like heat, humidity and moisture pose a severe threat to mission-critical infrastructure. These dangers can be minimized by incorporating a network of environmental sensors to collect data and alert users of potential threats. Adding optional sensors to a Vertiv Geist Environmental Monitor or Rack Power Distribution Unit (rPDU) allows users to observe conditions from a secure Web interface and receive alerts via Email, SNMP, or Email-to-SMS.

Technical Specifications

Miscellaneous
Additional Information
  • Activity LED: 1
  • Idle LED: 1
  • Power Over Eithernet (PoE): Yes
  • Power Supply Compatible with these Systems Input: AC 100-240V, 50/60Hz Output: DC 6V, 2A: North America (NEMA 5-15P)
  • Internal Temperature Sensor: -4°F to 185°F /-20°C to 85°C
  • Internal Temperature Measurement Accuracy: +/-0.5°F / ±0.3°C
  • Internal Humidity Sensor: 0% to 100% (20% to 80%)
  • Internal Humidity Sensor Measurement Accuracy: +/-3% (+/-2 )
  • Dew Point Measurement Range: -37°C to 75°C, +/-2.5°C OR -35°F to 167°F, +/-4.5°F (-20°C to 80°C and 20-80%RH)
  • Network Connection: Ethernet via RJ45
  • Network Protocols Supported and Data Access Formats: HTTP, HTTPS (SSL/TLS), SMTP, DHCP, ICMP, TCP/IP, HTML (Desktop), SNMP v1/v2c, XML, CSV, JSON
  • Reboot Button: Yes
  • Remote Sensor RJ Connection Jacks: 2 (Supports up to 4 Sensors)
  • Analog Ports: 4 Dry Contact / 0-5VDC
  • Output Relays: 1
  • Configuration: Zero U or 1U
  • Adjustable Mount Brackets: Yes

Certification/ Agency Approvals:

  • FCC Part 15 Class A Conformance
  • EN 55032
  • EN 55024
  • CE Marked
Application/UsageServer Room
Data Center
Package Contents
  • Environmental Monitor -Watchdog 100-P
  • US Power Supply
Country of OriginUnited States
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Physical Characteristics
Form FactorRack-mountable
Height2.52" (64 mm)
Width8.50" (216 mm)
Depth1.61" (41 mm)
Product ColorBlack
Color FamilyBlack
Product MaterialSteel
General Information
Product TypeEnvironmental Monitoring System
Manufacturer Part NumberWatchdog 100-P
Manufacturer Website Addresshttp://www.vertiv.com/
ManufacturerVertiv
Product Model100-P
Product NameEnvironmental Monitor -Watchdog 100-P
Product LineWatchdog
Brand NameVertiv Geist
