About the product

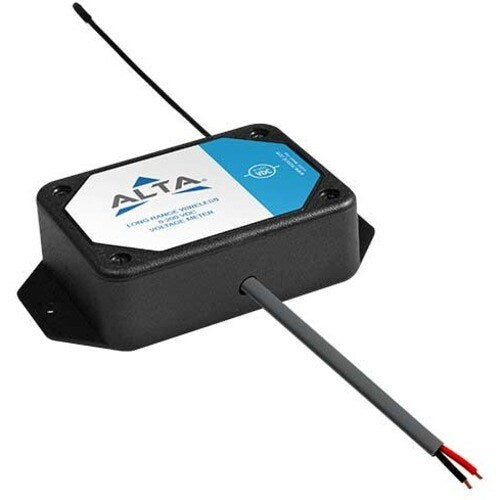

ALTA wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 200 VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a "voltage observer". Cannot be used for AC voltage measurement.
Technical Specifications
| Miscellaneous | |
| Application/Usage | Vehicle Battery Monitoring |
| Utility Vehicle Battery Monitoring | |
| Package Contents |
|
| Country of Origin | United States |
| Physical Characteristics | |
| Weight (Approximate) | 111 g |
| Height | 2.47" (62.74 mm) |
| Width | 4.38" (111.13 mm) |
| Depth | 1.12" (28.45 mm) |
| Product Material | ABS |
| General Information | |
| Product Type | Voltage Sensor |
| Manufacturer Part Number | MNS2-9-W2-VM-200 |
| Manufacturer Website Address | http://www.monnit.com |
| Manufacturer | Monnit Corporation |
| Product Name | ALTA Wireless Voltage Meters - 0-200 Vdc - AA Battery Powered |
| Product Line | ALTA |
| Brand Name | Monnit |
