2N Access Unit M Slim Access Control Reader - Door - Radio-frequency Identificat
2N Access Unit M Slim Access Control Reader - Door - Radio-frequency Identificat
VPN:02911-001 SKU:PHS687155 UPC:
- With its card reading capability this card reader access device provides access control and security assurance
- By using radio-frequency identification (rfid) technology this card reader access device provides robust and affordable security
- Secure your door with this card reader access device
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details


Recently Viewed
2N Access Unit M Slim Access Control Reader - Door - Radio-frequency Identificat
Product information summary

About the product

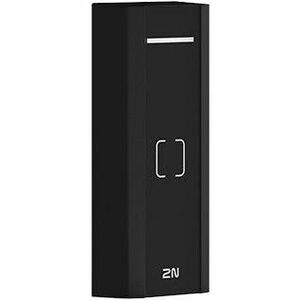

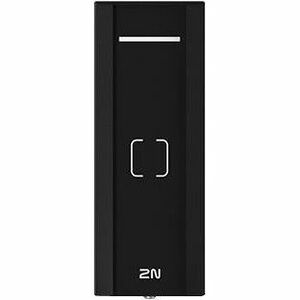

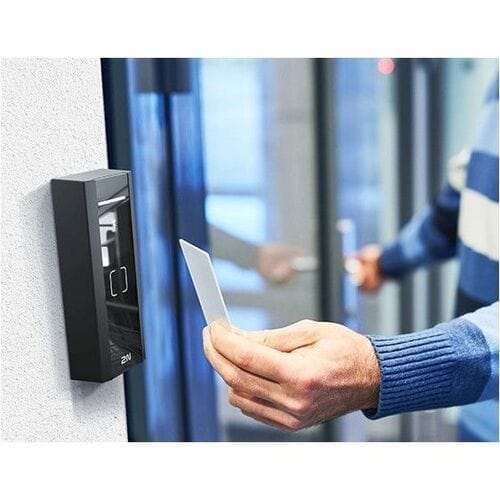

Easy to install and perfect for offices, the 2N Access Unit M features an in-built controller and a single UTP cable is all you need for connection and power. Plus, the access control reader has a slimline design that is great for installation in tricky spots such as door frames. Choose from several versions - RFID, RFID combined with mobile access via Bluetooth, or RFID with a keypad for projects that require two-factor authentication.
Slimline design
The access control reader's sleek design is ideal for installation in spots where you're tight on space such as door frames in the front of meeting rooms.
Hassle-free installation
The nearly 3-meter-long Ethernet pigtail makes your installation process a breeze! Simply pull it through the door frame and into the ceiling. Then, connect the access control reader to the IP infrastructure. For wall mounting, use the new installation boxes.
Flexible access methods
Offer your clients options! This powerful access control reader can support multi-access technologies in one unit including RFID, RFID with mobile access via Bluetooth, or RFID with keypad.
Controller and reader in one
The full decision-making technology is all in one small device, so you'll save on cabling and won't have to waste time finding the right spot. It also works without the need to communicate with a server!
Strong in any environment
It might be small, but it's strong! 2N Access Unit M has an IP55 protection rating, meaning it can be installed outside and will remain scratch-free after years of daily use. Despite all this, we've kept it affordable.
Reads secured RFID cards
Eliminate the threat of access card copying. Use MIFARE® DESFire® cards encrypted by 2N® PICard technology and be sure that your assets and people are as safe as possible!
- With its card reading capability this card reader access device provides access control and security assurance
- By using radio-frequency identification (rfid) technology this card reader access device provides robust and affordable security
- Secure your door with this card reader access device
Technical Specifications
Interfaces/Ports | |
Network (RJ-45) | Yes |
Miscellaneous | |
Country of Origin | Czech Republic |
Network & Communication | |
Bluetooth | Yes |
Ethernet Technology | Fast Ethernet |
Power Description | |
Input Voltage | 12 V DC |
Operating Frequency | 125 kHz |
Physical Characteristics | |
Weight (Approximate) | 1.10 lb (498.95 g) |
Height | 5.24" (133.10 mm) |
Width | 1.97" (50.04 mm) |
Depth | 1.06" (26.92 mm) |
General Information | |
Product Type | Card Reader Access Device |
Manufacturer Part Number | 02911001 |
Manufacturer Website Address | http://www.axis.com |
Manufacturer | Axis Communications |
Product Name | Access Unit M Slim Access Control Reader |
Product Line | Access Unit M |
Brand Name | 2N |
Technical Information | |
Application/Usage | Door |
Operating Range | 30 ft (9144 mm) |
Connectivity Technology | Wired |
Identification Method | Proximity |
Radio-frequency Identification (RFID) | |
Ingress Protection (IP) Rating | IP55 |
Impact Protection (IK) Rating | IK07 |
