Technical Specifications
| Exposure | |
| PTZ Modes | Digital PTZ |
| Video | |
| Maximum Video Resolution | 2560 x 1920 |
| Power Description | |
| Maximum Power Consumption | 7.50 W |
| Power Source Type | PoE |
| Display & Graphics | |
| Color Supported | Color |
| Effective Camera Resolution | 5 Megapixel |
| Field of View | 132° - 34° Diagonal FoV, 97° - 27° Horizontal FoV, 70° - 20° Vertical FoV |
| Network & Communication | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Humidity | 0% |
| Maximum Operating Humidity | 90% |
| Physical Characteristics | |
| Durability | Weather Resistant |
| Weather Proof | |
| Vandal Proof | |
| Impact Resistant | |
| Form Factor | Mini Bullet |
| Technical Information | |
| Night Vision | Yes |
| HD Recording | Yes |
| Night Vision Distance | 98 ft (29.87 m) |
| Camera Iris | P-iris |
| Night Vision Type | Infrared |
| Lens | |
| Lens Type | Varifocal |
| Optical Zoom | 3x |
| Maximum Focal Length | 9.7 mm (0.38") |
| Minimum Focal Length | 3.3 mm (0.13") |
| Lens Included | Yes |
| Maximum Aperture (Lens 2) | f/1.6 |
| General Information | |
| Product Type | Network Camera |
| Manufacturer Part Number | R520-128GB |
| Manufacturer Website Address | http://www.rhombussystems.com |
| Manufacturer | Rhombus Systems, Inc |
| Product Model | R520 |

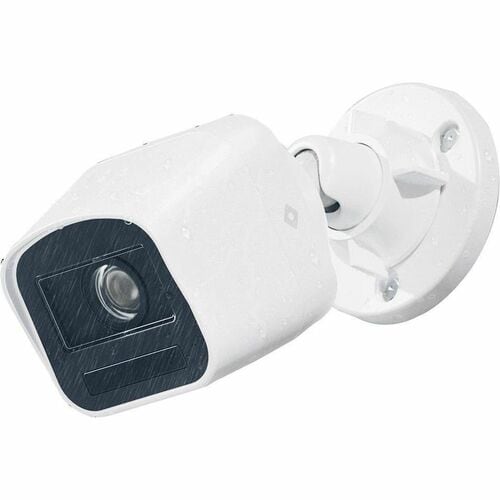

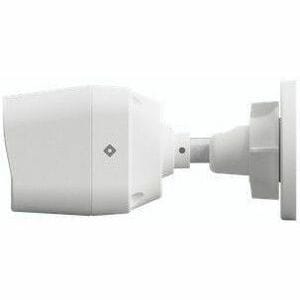

| Product Name | R520 Mini Bullet Camera |
| Brand Name | Rhombus |
| Miscellaneous | |
| Package Contents |
|
| Features | Built-in IR LED |
| Ingress Protection | |
| TAA Compliant | Yes |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
