About the product

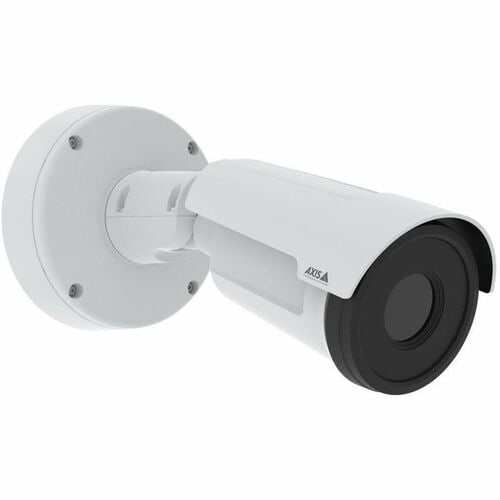

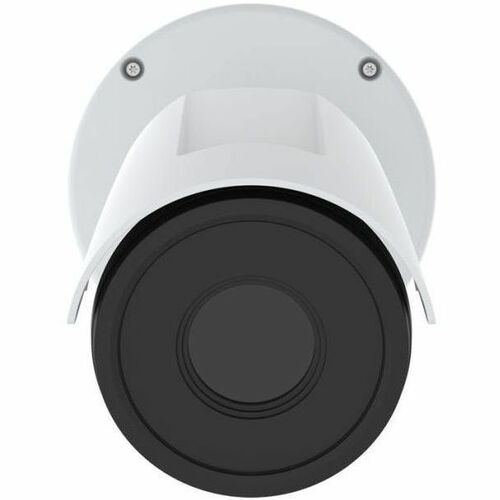

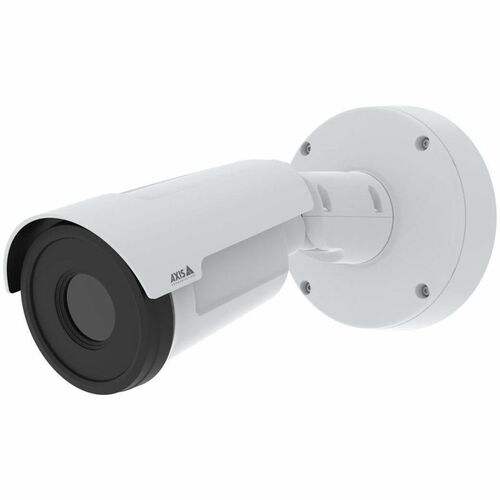

Ideal for perimeter protection, this robust, halogen-free camera can detect and verify regardless of weather and light conditions even in low-contrast scenes. With five lens alternatives, it ensures optimal detection to suit specific needs. This AI-based camera enables proactive surveillance. And AXIS Perimeter Defender is available for enhanced protection. Built on a powerful platform, it supports third-party analytics. It features two I/O ports and with edge-to-edge technology you can connect, for instance, a horn speaker to enable audio alarms. Furthermore, Axis Edge Vault safeguards the device and offers FIPS 140-2 Level 2 certified key storage and operations.
- Up to 768 x 576 resolution for surveillance in real-time
- Up to 768 x 576 video resolution
- Network camera - Helps achieve high-quality video results
Technical Specifications
| Audio | |
| Audio Support | Yes |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Storage | |
| Storage Type | Memory Card |
| Display & Graphics | |
| Color Supported | Color |
| Field of View | Horizontal field of view: 29°,Vertical field of view: 22°,Near focus distance: 4.7 m (15.4 ft) |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Lens | |
| Lens Type | Fixed |
| Maximum Aperture | f/1 |
| Lens Included | Yes |
| Maximum Thermal Focal Length | 0.51" (13 mm) |
| Power Description | |
| Input Voltage | 28 V DC |
| 12 V DC | |
| Maximum Power Consumption | 12.95 W |
| Power Source Type | DC |
| PoE | |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Condensing) | 10% |
| Maximum Operating Humidity (Condensing) | 100% |
| Minimum Storage Humidity (Non-condensing) | 5% |
| Maximum Storage Humidity (Non-condensing) | 95% |
| General Information | |
| Product Type | Network Camera |
| Manufacturer Part Number | 02947-001 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | Q1971-E |
| Product Name | Q1971-E Thermal Camera |
| Product Series | Q19 |
| Brand Name | AXIS |
| Physical Characteristics | |
| Weight (Approximate) | 3.09 lb (1400 g) |
| Durability | Weather Resistant |
| Impact Resistant | |
| Product Color | White |
| Color Family | White |
| Product Material | Germanium |
| Polycarbonate | |
| Aluminum | |
| Video | |
| Video Formats | Motion JPEG |
| Zipstream | |
| H.264B | |
| H.265 | |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.264 | |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| H.264B (MPEG-4 Part 10/AVC) | |
| H.264H | |
| H.264H (MPEG-4 Part 10/AVC) | |
| H.264M | |
| Maximum Video Resolution | 768 x 576 |
| Maximum Frame Rate | 30 fps |
| Thermal Video Resolution | 384 x 288 |
| Miscellaneous | |
| Features | SD Card Local Storage |
| Thermal Detection | |
| Thermal Imaging | |
| Video Content Analytics | |
| AI Analytics | |
| Auto Gain Control | |
| Auto Image Stabilizer | |
| HTTPS Encryption | |
| Ingress Protection | |
| Motion Detection | |
| TAA Compliant | Yes |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| IP66 | |
| Technical Information | |
| Languages Support | Portuguese |
| Italian | |
| Simplified Chinese | |
| Spanish | |
| Swedish | |
| Thai | |
| Traditional Chinese | |
| Turkish | |
| Vietnamese | |
| Russian | |
| Czech | |
| Dutch | |
| English | |
| Japanese | |
| Korean | |
| Polish | |
| Finnish | |
| French | |
| German | |
| AI-powered | Yes |
| Network & Communication | |
| Protocols | TLS |
| TCP | |
| UPnP | |
| ZeroConf | |
| UDP | |
| Syslog | |
| SSH | |
| Bonjour | |
| CDP | |
| CIFS/SMB | |
| DDNS | |
| DHCPv4/v6 | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| FTP | |
| HTTP | |
| HTTP/2 | |
| HTTPS | |
| ICMPv4/ICMPv6 | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| MQTT v3.1.1 | |
| NTP | |
| ONVIF | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SNMPv1/v2c/v3 (MIB2) | |
| SRTP/RTSPS | |
| Connectivity Technology | Wired |
| Ethernet Technology | Gigabit Ethernet |
| Remote Management | Yes |
