About the product

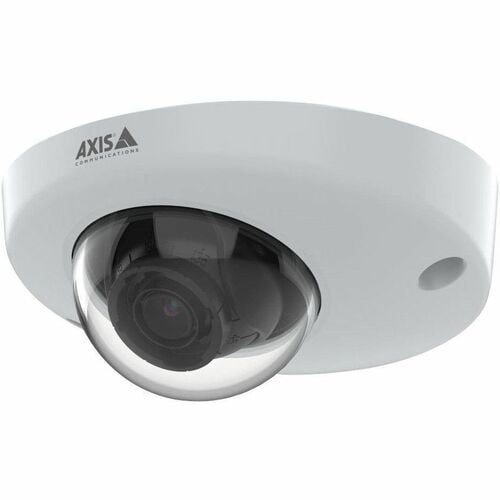

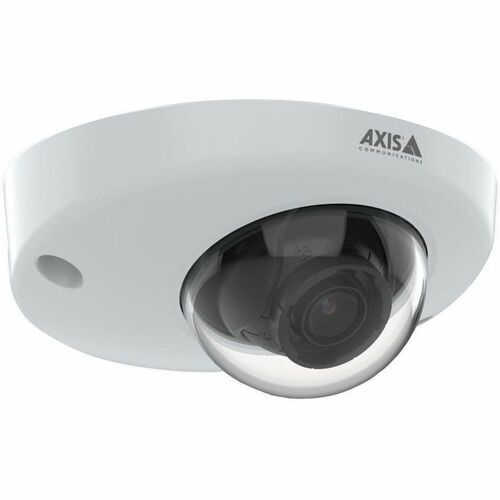

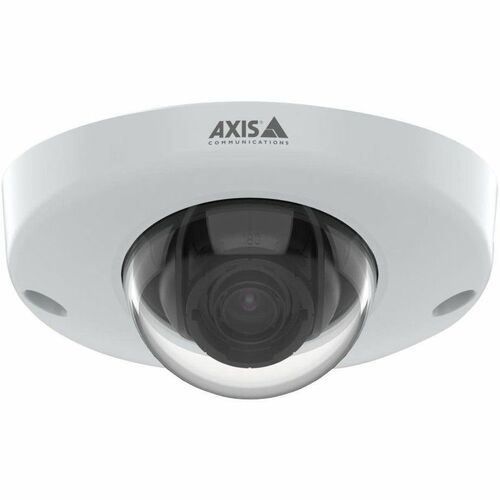

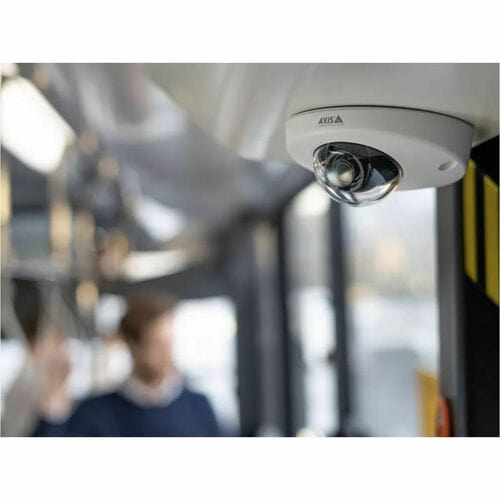

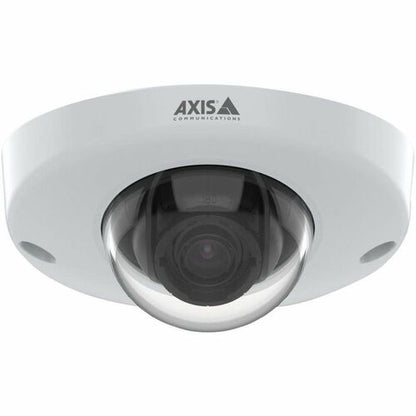

Specifically designed for indoor onboard monitoring on railway vehicles such as trains and trams , this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.
Optimized for onboard surveillance
This 2 MP onboard camera ensures high-performance even in changing light conditions. WithForensic WDRyou get clarity even when there are both dark and light areas in the scene. And, Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS P3905-R Mk III can distinguish the color of traffic lights in dark scenes. Furthermore, there are two product variations available with different lens options, and additional lenses available as accessories - everything you need to adjust field of view for customized monitoring purposes.
For tough onboard conditions
AXIS P3905-R Mk III complies with transportation industry standards including EN50155 and EN45545. This rugged camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installations. Additionally, when used together withAXIS TP3826-E housingit can be mounted on the outside of a vehicle to withstand tough weather.
Secure and cost-effective
This onboard camera offers built-incybersecurityfeatures to help prevent unauthorized access and safeguard your system. For instance,Axis Edge Vaultprotects yourAxis device IDand simplifies authorization of Axis devices on your network. Thanks to AxisZipstreamtechnology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that's perfect for onboard conditions.
- Features RGB CMOS sensor
- Up to 1920 x 1080 resolution for surveillance in real-time
- For remote surveillance needs, this network camera is best suited
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 3.80 W |
| Power Source Type | PoE |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/19000 Second |
| PTZ Modes | Digital PTZ |
| Preset Point | |
| Display & Graphics | |
| Color Supported | Color |
| Image Sensor Size | 1/2.9" |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 2 Megapixel |
| Field of View | Horizontal field of view: 107°, Vertical field of view: 56° |
| Lens | |
| Lens Type | Fixed |
| Maximum Aperture | f/1.2 |
| Maximum Focal Length | 2.8 mm (0.11") |
| Lens Mount Type | M12-mount |
| Lens Included | Yes |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Operating Humidity (Condensing) | 10% |
| Maximum Operating Humidity (Condensing) | 100% |
| General Information | |
| Product Type | Network Camera |
| Manufacturer Part Number | 03117-001 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | P3905-R Mk III |
| Product Name | P3905-R Mk III Dome Camera |
| Product Series | P39 |
| Brand Name | AXIS |
| Physical Characteristics | |
| Weight (Approximate) | 8.50 oz (241 g) |
| Durability | Vandal Resistant |
| Weather Resistant | |
| Form Factor | Dome |
| Mount Type | Vehicle Mount |
| Diameter | 4.33" (110 mm) |
| Height | 1.97" (50 mm) |
| Product Material | Aluminum |
| Polycarbonate | |
| Video | |
| Video Formats | H.264 |
| H.264H (MPEG-4 Part 10/AVC) | |
| Zipstream | |
| Motion JPEG | |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| H.265 | |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 45 fps |
| Miscellaneous | |
| Features | 2D Noise Reduction |
| 3D Noise Reduction | |
| Wide Dynamic Range | |
| White Balance | |
| Video Management System | |
| Privacy Masking | |
| Active Tampering Alarm | |
| Ingress Protection | |
| Motion Detection | |
| Noise Reduction | |
| TAA Compliant | Yes |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| IP66 | |
| Technical Information | |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Camera Iris | Fixed |
| Languages Support | Italian |
| German | |
| French | |
| Finnish | |
| English | |
| Czech | |
| Spanish | |
| Simplified Chinese | |
| Russian | |
| Portuguese | |
| Polish | |
| Korean | |
| Japanese | |
| Dutch | |
| Vietnamese | |
| Turkish | |
| Traditional Chinese | |
| Thai | |
| Swedish | |
| Wide Dynamic Range Detail | 120 dB |
| Network & Communication | |
| Protocols | DDNS |
| DHCPv4/v6 | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| HTTP | |
| HTTP/2 | |
| HTTPS | |
| ICMP | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| mDNS (Bonjour) | |
| MQTT v3.1.1 | |
| NTP | |
| ARP | |
| CDP | |
| CIFS/SMB | |
| CSMA/CD | |
| ONVIF | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SMTP | |
| SNMPv1/v2c/v3 (MIB2) | |
| SOCKS | |
| SRTP | |
| SSH | |
| Syslog | |
| TCP | |
| TLS | |
| UDP | |
| UPnP | |
| ZeroConf | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
