TRENDnet 16-Channel H.264/H.265 PoE+ NVR - 16 Channel 4K UHD PoE+ NVR

• Standalone 16-channel HD PoE+ network video recorder
• Supports one 4K camera channel
• Supports H.264 and H.265 video encoding
• Plug and play up to 16 TRENDnet PoE cameras
• Concurrent 1080p HD video recording for all channels
• Two 3.5" SATA II bays support up to a 12TB of storage (6TB per bay, HDDs not included)
• One month of continuous 1080p HD video recording
• Advanced video playback
• Rackmount hardware included
• PoE power budget: 150W
• ONVIF compliant

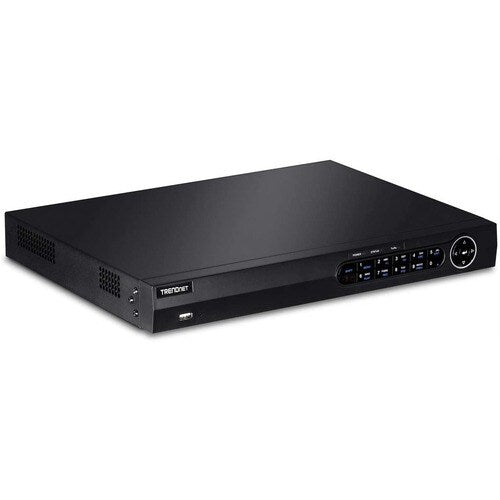

TRENDnet's standalone 16-Channel H.265 1080p HD PoE+ NVR, model TV-NVR416, offers a comprehensive rack mountable camera management solution. The NVR networks and powers up to sixteen PoE cameras*. Install up to 12TB of storage (hard drives not included) to record one month of continuous video from sixteen 1080p HD PoE cameras**. The TV-NVR416 features advanced video playback and comes with a free iOS/Android app.

Standalone HD NVR
This standalone H.265 HD NVR supports a total storage capacity of up to 12TB and powers up to sixteen PoE network cameras (HDDs, cameras, and display not included).

Simple Setup
The NVR auto-recognizes and powers TRENDnet PoE cameras* - simply connect compatible TRENDnet PoE cameras and start recording surveillance video.

4K Support
Connect a 4K display to the HDMI interface to view up to one 4K UHD camera channel.

More from the Manufacturer

• Allows the camera to record at greater image per second levels
• Manage remotely. Just get it connected to the internet and it will start monitoring
• Ethernet connectivity is more reliable then wireless
• Up to 16 number of channels to address small-to-mid range requirements
• USB port for easy sync/connectivity

Miscellaneous
Package Contents	TV-NVR416 Power Cord (1.4 m/5 ft.) Network Cable (1.4 m / 5 ft.) HDMI Cable (1.8 m / 6 ft.) Optical Mouse SATA Data Cables / Power Cables Quick Installation Guide
Power Description
Power Consumption	150 W
Storage
Hard Drive Capacity	12 TB
Network & Communication
Ethernet	Yes
Remote Management	Yes
Video
Video Formats	H.265
Maximum Resolution	8MP
Physical Characteristics
Weight (Approximate)	336.8 g
Height	2" (50.80 mm)
Width	6" (152.40 mm)
Depth	15" (381 mm)
Technical Information
Recording Formats	4K
Connectivity Technology	Wired
Total Number of Channels	16
System Components	Network Video Recorder
Interfaces/Ports
USB	Yes
HDMI	Yes
Number of VGA Out	1
Total Number of Audio In Ports	1
Total Number of Audio Out Ports	1
General Information
Product Type	Video Surveillance Station
Manufacturer Part Number	TVNVR416
Manufacturer Website Address	http://www.trendnet.com
Manufacturer	TRENDnet
Product Model	TV-NVR416
Product Name	16 Channel 4K UHD PoE+ NVR
Brand Name	TRENDnet
Product Condition	New
