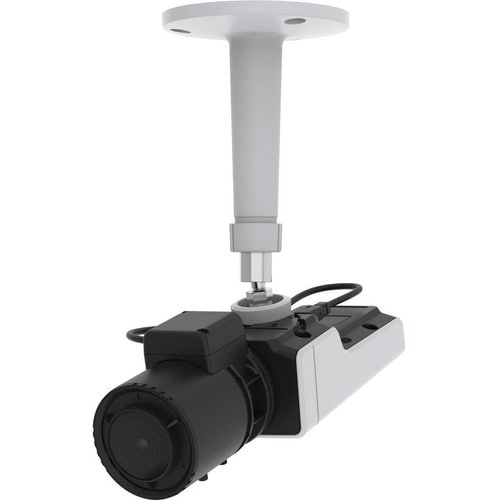

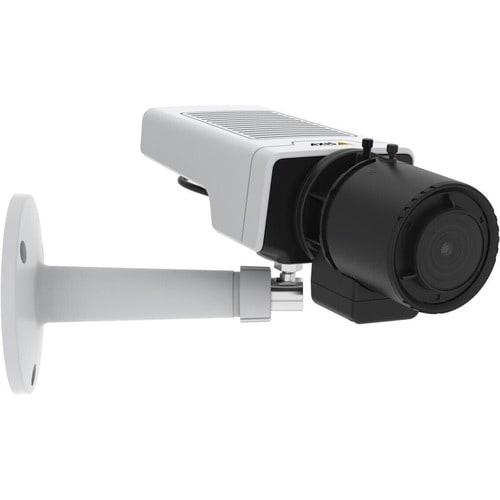

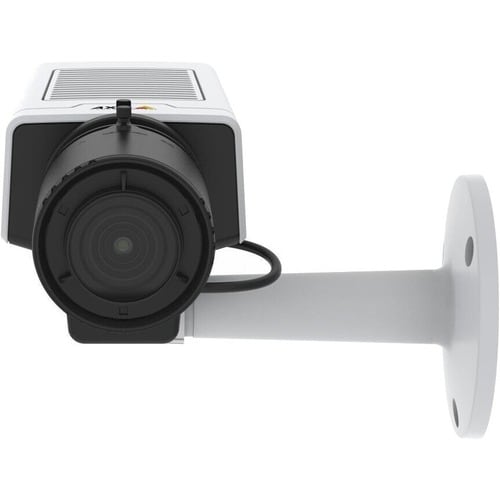

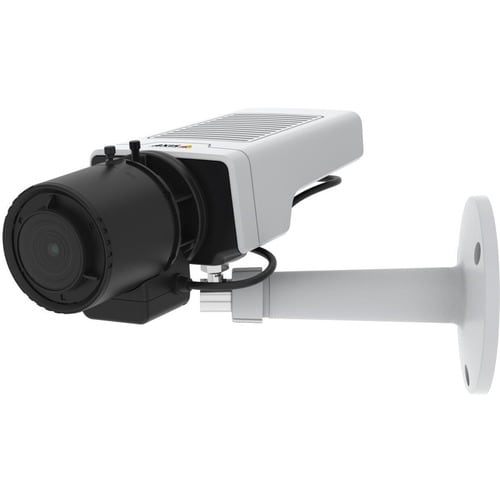

AXIS M1137 MK II 5 Megapixel Network Camera - Color - Box - H.265, H.264, Motion
AXIS M1137 MK II 5 Megapixel Network Camera - Color - Box - H.265, H.264, Motion
VPN:02581-001 SKU:PHS877091 UPC:
- Features RGB CMOS sensor
- Up to 2592 x 1944 resolution for surveillance in real-time
- Network camera - Helps achieve high-quality video results
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details



Recently Viewed
AXIS M1137 MK II 5 Megapixel Network Camera - Color - Box - H.265, H.264, Motion
Product information summary

About the product
This affordable and compact box camera delivers 5 MP resolution with superb image quality even in low light conditions. Designed as a visible deterrent, it helps discourage trespassing and other unwanted activities.
More bang for your buck
This affordable Axis M-line camera includes a built-in microphone and audio recording, letting you hear and register sound in a fixed area. Thanks to support for PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage. It includes signed firmware and secure boot to ensure only authorized firmware is installed and that the firmware hasn't been compromised. And, Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, it comes with AXIS Object Analytics preinstalled, so you can detect and classify humans and vehicles.
Great image quality even in low light
With 5 MP resolution at up to 30 fps, AXIS M1137 Mk II delivers superb video quality even in low light conditions. Featuring Axis Lightfinder it offers images in true colors even in low light. And, with Axis Forensic WDR you get clarity even when there's both dark and light areas in the scene. Ideal for various surveillance situations, it includes a CS-mount with support for motorized i-CS lenses, enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements.
Designed for deterrence
Designed to act as a deterrent, AXIS M1137 Mk II lets potential offenders know you're watching and helps prevent unwanted activities. This compact box camera provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis ceiling speaker.
- Features RGB CMOS sensor
- Up to 2592 x 1944 resolution for surveillance in real-time
- Network camera - Helps achieve high-quality video results
- For remote surveillance needs, this network camera is best suited
Technical Specifications
Interfaces/Ports | |
Network (RJ-45) | Yes |
Storage | |
Storage Type | Memory Card |
Technical Information | |
HD Recording | Yes |
Exposure | |
Longest Shutter Speed | 1/5 Second |
Shortest Shutter Speed | 1/33500 Second |
Environmental Conditions | |
Minimum Operating Temperature | -4°F (-20°C) |
Maximum Operating Temperature | 122°F (50°C) |
Maximum Operating Humidity | 85% |
Network & Communication | |
Connectivity Technology | Wired |
Ethernet Technology | Fast Ethernet |
Remote Management | Yes |
Physical Characteristics | |
Weight (Approximate) | 5.82 oz (165 g) |
Form Factor | Box |
Mount Type | Tripod Mount |
Power Description | |
Input Voltage | 10 V DC |
28 V DC | |
Power Source Type | DC |
PoE | |
Display & Graphics | |
Color Supported | Color |
Image Sensor Size | 1/2.7" |
Image Sensor Type | RGB CMOS |
Effective Camera Resolution | 5 Megapixel |
Field of View | 99°-31° / 71°-24° |
Lens | |
Lens Type | Varifocal |
Optical Zoom | 2.9x |
Maximum Aperture | f/1.8 |
Maximum Focal Length | 10 mm (0.39") |
Minimum Focal Length | 3.5 mm (0.14") |
Lens Mount Type | CS-Mount |
Lens Included | Yes |
General Information | |
Product Type | Network Camera |
Manufacturer Part Number | 02581-001 |
Manufacturer Website Address | http://www.axis.com |
Manufacturer | Axis Communications |
Product Model | M1137 MK II |
Product Name | M1137 Mk II Box Camera |
Product Series | M11 |
Brand Name | AXIS |
Video | |
Video Formats | H.265 (MPEG-H Part 2/HEVC) |
H.265 | |
Motion JPEG | |
Zipstream | |
H.264M (MPEG-4 Part 10/AVC) | |
H.264B (MPEG-4 Part 10/AVC) | |
H.264H (MPEG-4 Part 10/AVC) | |
H.264 | |
Maximum Video Resolution | 2592 x 1944 |
Maximum Frame Rate | 30 fps |
Miscellaneous | |
Package Contents |
|
Features | SD Card Local Storage |
Password Protection | |
Mirror | |
Day/Night | |
Built-in Microphone | |
Audio Detection | |
Wide Dynamic Range | |
Vehicle Detection | |
Tampering Alarm | |
Privacy Masking |
