About the product

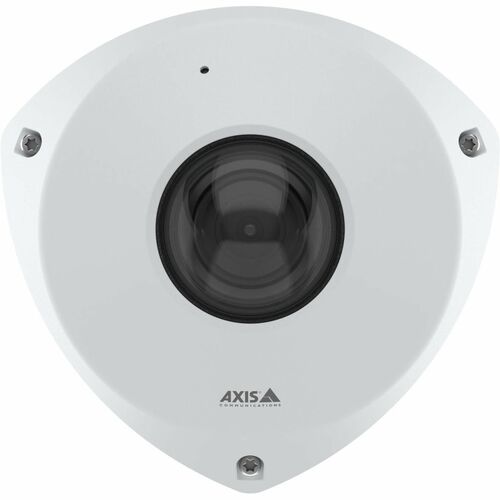

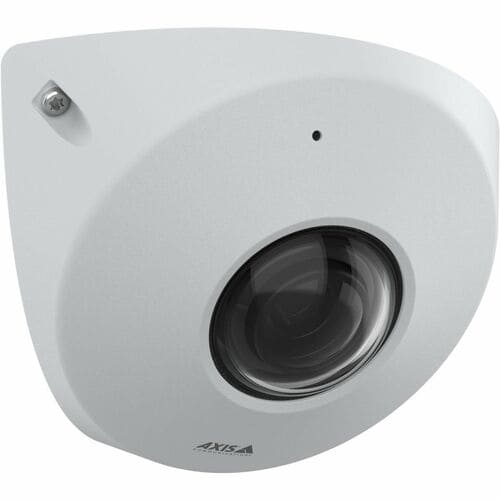

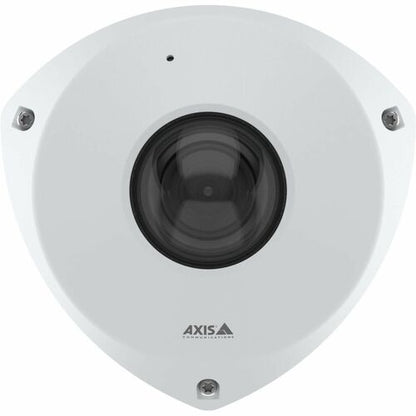

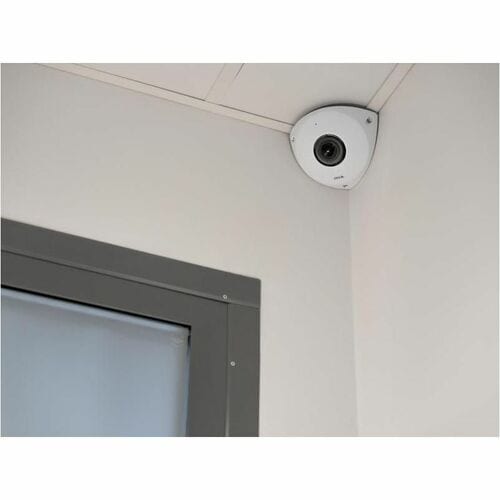

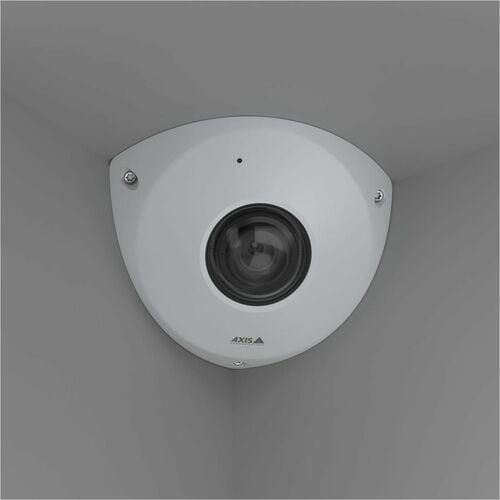

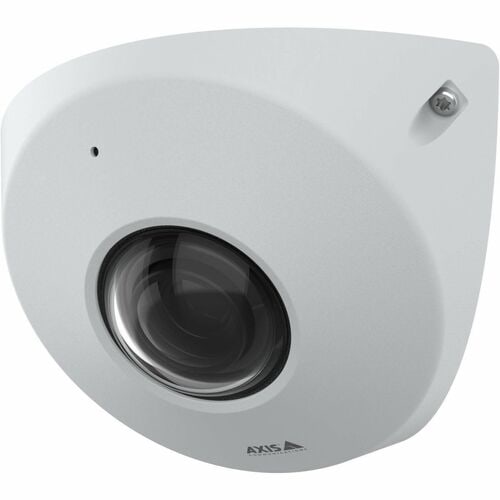

6 MP corner camera with no blind spots
? AXIS P9117-PV delivers 360° panoramic view with no blind spots. This 6 MP corner-mounted camera includes Axis Lightfinder and Axis Forensic WDR for true colors and great details in challenging light or near darkness. AXIS TP9801 Cover Steel is also available as an accessory. Featuring a deep learning processing unit, it's possible to run powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different objects of interest. With a built-in microphone, it's out-of-the-box-ready for AXIS Audio Analytics. Furthermore, Axis edge vault, a hardware-based cybersecurity platform, safeguards the device.
- Features RGB CMOS sensor
- Up to 2160 x 2160 resolution for surveillance in real-time
- Up to 2160 x 2160 video resolution
- For remote surveillance needs, this network camera is best suited
Technical Specifications
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Storage | |
| Storage Type | Memory Card |
| Exposure | |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/33500 Second |
| Power Description | |
| Maximum Power Consumption | 5.30 W |
| Power Source Type | PoE |
| Environmental Conditions | |
| Minimum Operating Temperature | 5°F (-15°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 85% |
| Technical Information | |
| HD Recording | Yes |
| Camera Iris | Fixed |
| AI-powered | Yes |
| Lens | |
| Lens Type | Fixed |
| Maximum Aperture | f/2.2 |
| Maximum Focal Length | 1.1 mm (0.04") |
| Lens Included | Yes |
| Display & Graphics | |
| Color Supported | Color |
| Image Sensor Size | 1/1.8" |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 6 Megapixel |
| Field of View | Overview (1:1) :Horizontal field of view: 176° Vertical field of view: 176° Corner View (4:3) :Horizontal field of view: 115° Vertical field of view: 100° |
| General Information | |
| Product Type | Network Camera |
| Manufacturer Part Number | 02864-001 |
| Manufacturer Website Address | http://www.axis.com |
| Manufacturer | Axis Communications |
| Product Model | P9117-PV |
| Product Name | P91 9117-PV Network Camera |
| Product Series | P91 |
| Brand Name | AXIS |
| Video | |
| Video Formats | Zipstream |
| Motion JPEG | |
| H.264 | |
| H.264B (MPEG-4 Part 10/AVC) | |
| H.264H (MPEG-4 Part 10/AVC) | |
| H.264M (MPEG-4 Part 10/AVC) | |
| H.265 | |
| H.265 (MPEG-H Part 2/HEVC) Main Profile | |
| Maximum Video Resolution | 2160 x 2160 |
| Maximum Frame Rate | 60 fps |
| Physical Characteristics | |
| Weight (Approximate) | 1.68 lb (760 g) |
| Durability | Vandal Resistant |
| Dust Resistant | |
| Form Factor | Dome |
| Mount Type | Ceiling Mount |
| Corner Mount | |
| Wall Mount | |
| Height | 3.62" (92 mm) |
| Width | 5.75" (146 mm) |
| Depth | 4.80" (122 mm) |
| Product Color | White |
| Color Family | White |
| Miscellaneous | |
| Features | 3D Noise Reduction |
| Day/Night | |
| HTTPS Encryption | |
| Ingress Protection | |
| Noise Reduction | |
| Password Protection | |
| Privacy Masking | |
| Wide Dynamic Range | |
| White Balance | |
| PTZ | |
| TAA Compliant | Yes |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Network & Communication | |
| Protocols | ZeroConf |
| ARP | |
| CDP | |
| CIFS/SMB | |
| DDNS | |
| DHCPv4/v6 | |
| DiffServ (QoS) | |
| DNS/DNSv6 | |
| FTP | |
| HTTP | |
| HTTP/2 | |
| HTTPS | |
| ICMP | |
| ICMPv4/ICMPv6 | |
| IEEE 802.1AR | |
| IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2) | |
| IGMPv1/v2/v3 | |
| IPv4 | |
| IPv6 USGv6 | |
| LLDP | |
| MQTT v3.1.1 | |
| NTP | |
| NTS | |
| ONVIF | |
| RTCP | |
| RTP | |
| RTSP | |
| SFTP | |
| SMTP | |
| SNMP | |
| SNMPv1/v2c/v3 (MIB2) | |
| SRTP/RTSPS | |
| SSH | |
| Syslog | |
| TCP | |
| TLS | |
| UDP | |
| UPnP | |
| Connectivity Technology | Wired |
| Ethernet Technology | Fast Ethernet |
| Remote Management | Yes |
