Physical Security
Expected delivery 3 to 7 business days (exceptions applied)
Axis Communications

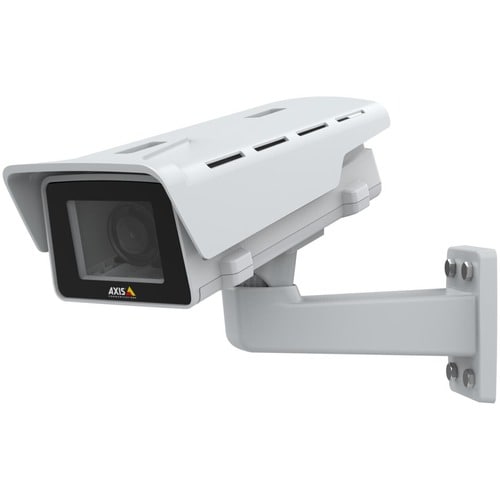

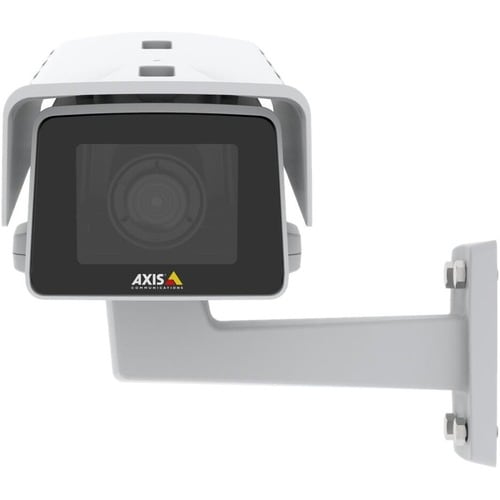

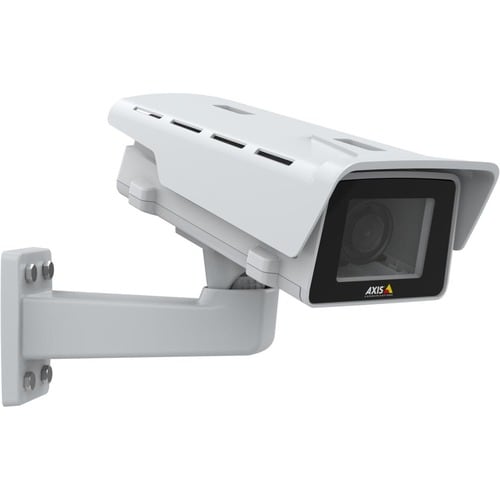

AXIS M1137-E Mk II 5 Megapixel Outdoor Network Camera - Color - Box - White - H.
AXIS M1137-E Mk II 5 Megapixel Outdoor Network Camera - Color - Box - White - H.
VPN:02623-001 SKU:PHS894921 UPC:
- Features RGB CMOS sensor
- Up to 2592 x 1944 resolution for surveillance in real-time
- Up to 2592 x 1944 video resolution
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details


Recently Viewed
AXIS M1137-E Mk II 5 Megapixel Outdoor Network Camera - Color - Box - White - H.
Product information summary

About the product
This compact, outdoor-ready box camera delivers 5 MP resolution with superb image quality even in low light conditions. Designed as a visible deterrent, it helps discourage trespassing and other unwanted activities.
More bang for your buck
This affordable Axis M-line camera offers audio input allowing you to record video with sound. Thanks to support for PoE and redundant DC power, you get flexible installation, and your data is safeguarded in the event of a power outage. It includes signed firmware and secure boot to ensure only authorized firmware is installed and that the firmware hasn't been compromised. And, Axis Zipstream with support for H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, it comes with AXIS Object Analytics preinstalled, so you can detect and classify humans and vehicles.
Great image quality even in low light
With 5 MP resolution at up to 30 fps, AXIS M1137-E Mk II delivers superb video quality even in low light conditions. Featuring Axis Lightfinder it offers images in true colors even in low light. And, with Axis Forensic WDR you get clarity even when there's both dark and light areas in the scene. Ideal for various surveillance situations, it includes a CS-mount with support for motorized i-CS lenses, enabling remote zoom. Use our lens calculator to select a lens that meets your specific requirements.
Designed for deterrence
This outdoor-ready camera comes enclosed in an IP66-, IK10- and NEMA 4X-rated casing to protect against water, corrosion, dust, and impacts. Designed to act as a deterrent, it lets potential offenders know you're watching and helps prevent unwanted activities. Furthermore, AXIS M1137-E Mk II provides a clearly visible, fixed angle of view, making it easy to see exactly where the camera's pointing and allowing you to record both audio and video in a precisely defined area. And, thanks to edge-to-edge technology it can be connected to Axis speakers, such as an Axis horn speaker.
- Features RGB CMOS sensor
- Up to 2592 x 1944 resolution for surveillance in real-time
- Up to 2592 x 1944 video resolution
- Network camera - Helps achieve high-quality video results
- For remote surveillance needs, this network camera is best suited
Technical Specifications
Interfaces/Ports | |
Network (RJ-45) | Yes |
Storage | |
Storage Type | Memory Card |
Technical Information | |
HD Recording | Yes |
Exposure | |
Longest Shutter Speed | 1/5 Second |
Shortest Shutter Speed | 1/33500 Second |
Environmental Conditions | |
Minimum Operating Temperature | -13°F (-25°C) |
Maximum Operating Temperature | 122°F (50°C) |
Maximum Operating Humidity | 100% |
Network & Communication | |
Connectivity Technology | Wired |
Ethernet Technology | Fast Ethernet |
Remote Management | Yes |
Power Description | |
Input Voltage | 10 V DC |
28 V DC | |
Power Source Type | DC |
PoE | |
Display & Graphics | |
Color Supported | Color |
Image Sensor Size | 1/2.7" |
Image Sensor Type | RGB CMOS |
Effective Camera Resolution | 5 Megapixel |
Field of View | 99°-31° / 71°-24° |
Lens | |
Lens Type | Varifocal |
Optical Zoom | 2.9x |
Maximum Focal Length | 10 mm (0.39") |
Minimum Focal Length | 3.5 mm (0.14") |
Lens Mount Type | CS-Mount |
Lens Included | Yes |
General Information | |
Product Type | Network Camera |
Manufacturer Part Number | 02623-001 |
Manufacturer Website Address | http://www.axis.com |
Manufacturer | Axis Communications |
Product Model | M1137-E Mk II |
Product Name | M1137-E Mk II Box Camera |
Product Series | M11 |
Brand Name | AXIS |
Video | |
Video Formats | H.265 |
H.264 (MPEG-4 Part 10/AVC) | |
H.264 | |
Zipstream | |
H.265 (MPEG-H Part 2/HEVC) | |
Motion JPEG | |
Maximum Video Resolution | 2592 x 1944 |
Maximum Frame Rate | 30 fps |
Physical Characteristics | |
Weight (Approximate) | 3.97 lb (1800 g) |
Durability | Corrosion Resistant |
Dust Resistant | |
Impact Resistant | |
Water Resistant | |
Form Factor | Box |
Mount Type | Wall Mount |
Product Color | White |
Color Family | White |
Miscellaneous | |
Package Contents |
|
Features | Mirror |
Audio Detection | |
Privacy Masking | |
SD Card Local Storage | |
Tampering Alarm | |
Vehicle Detection | |
Wide Dynamic Range | |
Password Protection | |
Built-in Microphone | |
Day/Night | |
Indoor/Outdoor | Outdoor |
Impact Protection Rating | IK10 |
Ingress Protection Rating | IP66 |
