About the product

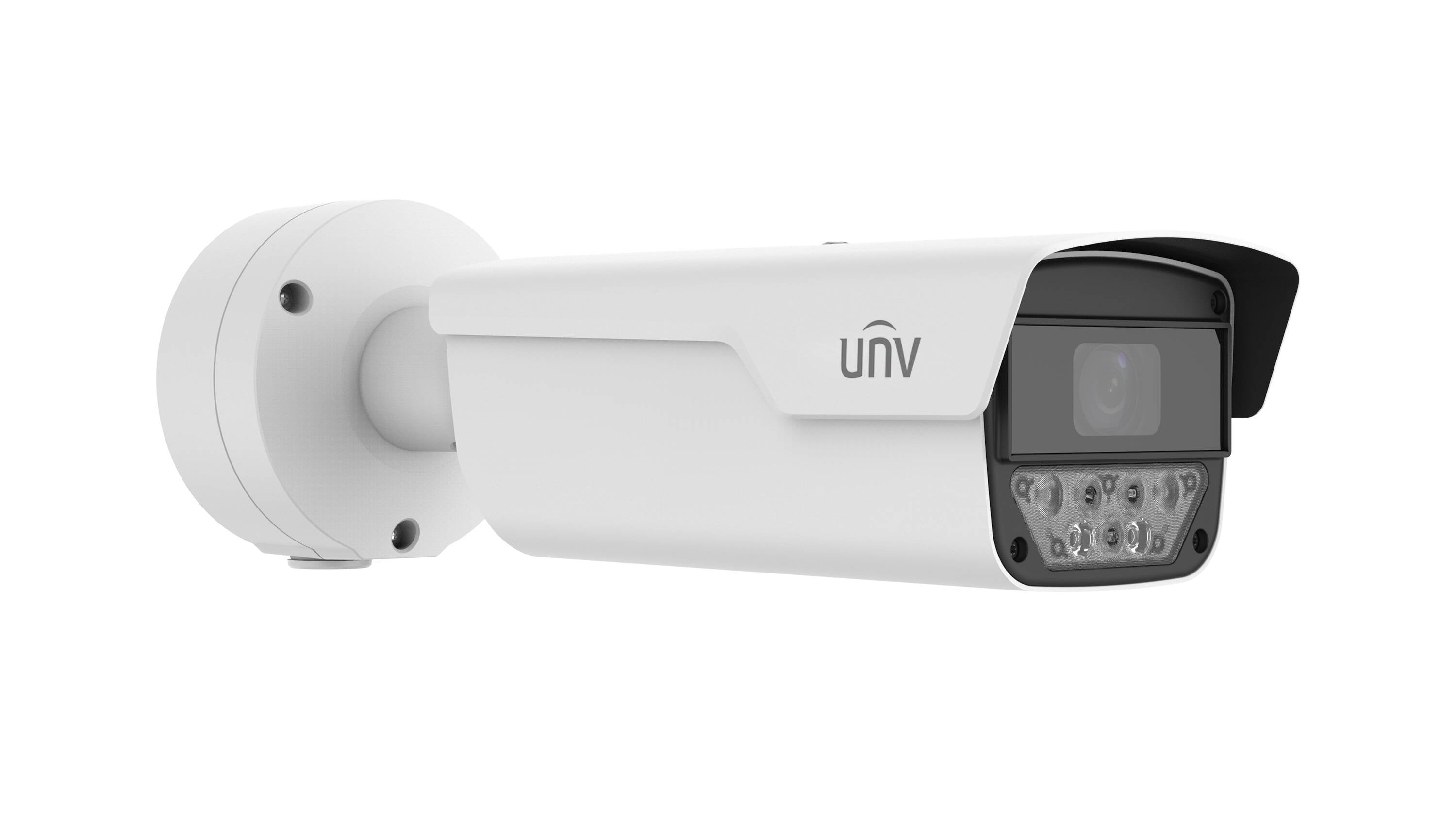

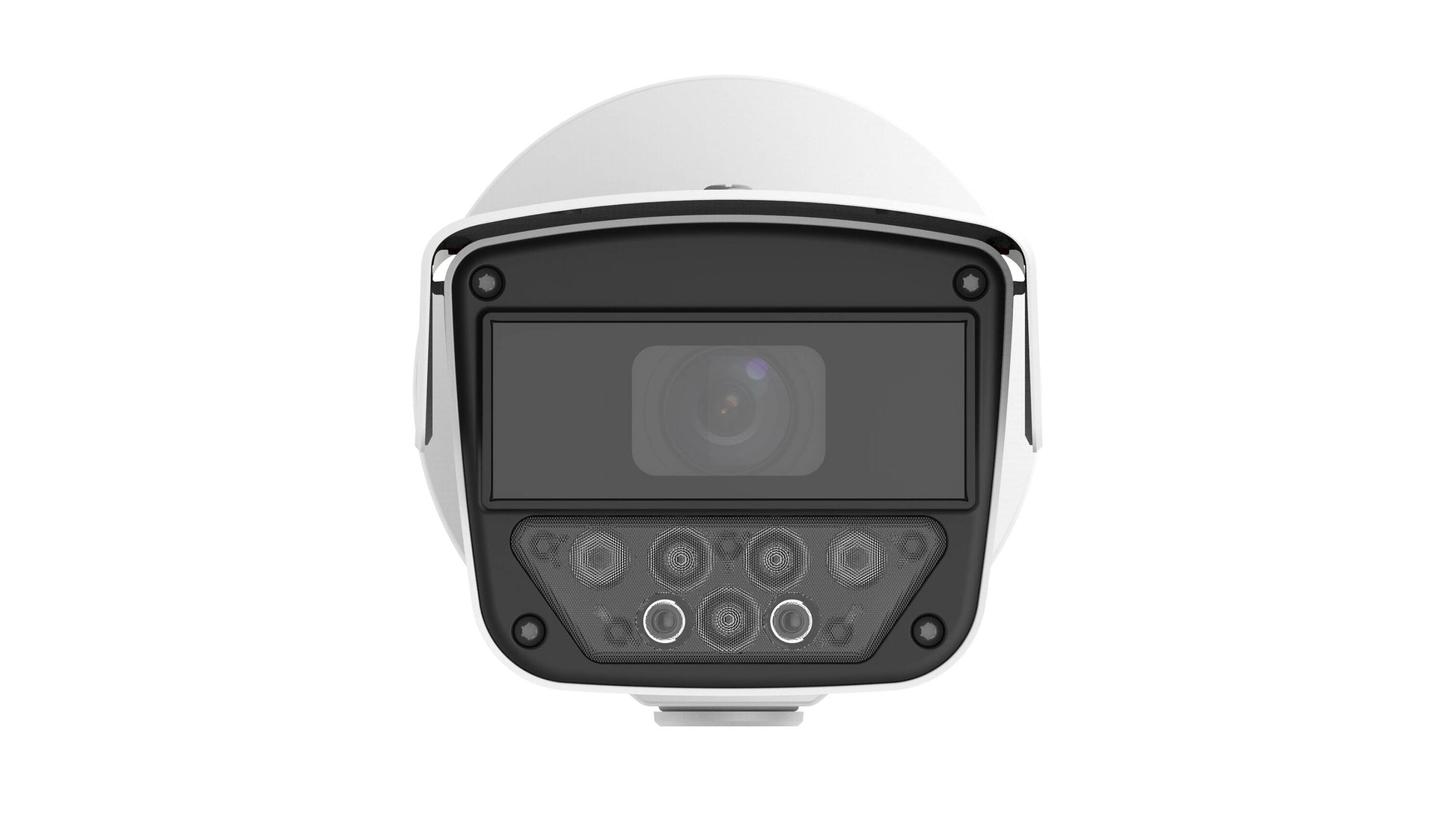

The Uniview 4MP Starlight LPR IP Bullet Camera is an HD-resolution license-plate recognition camera. Paired with an automatic focus & gain WDR zoom lens (8-32mm), connected cameras can automatically focus and adjust to capture license plate information from multiple different countries, even in challenging direct-light conditions. Designed for integration into barrier control systems via built-in Boolean input/outputs for automated smart vehicle access control systems.
IP67 weatherproofing and IK10 vandal resistance are suitable for public installation, indoors or outdoors; including paid parking garages, exterior parking lots, private roads, and more.
Supports additional linkage to audio and intercom for full two-way audio for direct communication with visitors and trespassers.
Includes junction box. Supports DC 12V and PoE (802.3at) power supply (not included).
PKC2640-Z80-IR-P Specs and Features
- Sensor: 1/1.8-inch 4MP CMOS
- Focal length: 8 to 32mm, motorized zoom
- Shutter: Auto/Manual, range: 1/30 to 1/100000s
- Minimum illumination: 0.002lux (F1.7)
- Image collection format: 2688*1520@30 (default), 2688*1520@25
- Resolution:
- Main stream: 2688*1520, 1080P (default), 720P, D1
- Sub stream: 720P (default), D1, 2CIF, CIF
- Third stream: D1 (default), 2CIF, CIF
- Frame rate: 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
- Video compression: H.264 (default), H.265
- ROI: Supports up to 8 regions
- Video OSD: Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents
- Image OSD: Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location
- Application scenario: ? 80km/h for regular roads; Camera with the focal length of 8 to 32mm can be used for regular roads
- Vehicle detection mode: Supports video detection
- License plate number recognition: Supports recognition of license plates with numbers and letters by default
- List configuration: Supports allowlist and blocklist configuration, each list allows 20,000 items; Supports import, export, add, and delete operations
- Barrier opening policy: Open barrier only for the recognized vehicles; Open barrier for all vehicles; Open barrier only for vehicles on the allowlist; Open barrier for vehicles not on the blocklist; Configurable Boolean output ID
- Edge storage: Supports ANR with a Micro SD card, up to 256GB
- Illumination: Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control
- Bracket: 3-axis mounting bracket
- Junction box: The camera comes with a junction box for storing tail cable
- Network interface 1 × 10M/100M RJ45
- Serial port: 1 × RS485
- Boolean output: 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
- Boolean input: 2 x input, supports level (up to DC 5V) and switch signal
- Audio interface: 1 × audio input, 1 × audio output
- Storage interface: 1 × Micro SD card slot
- Power supply: DC12V + 25% - 10%; Max. power consumption: 20W, Supports PoE (802.3at, class 4)
- Dimensions: (L×W×H): 406mm x 126mm x 130mm
- Weight: 2.1kg
- Operating environment: -40°C to 60°C, ?90% RH
- Ingress protection: IP67, IK10
Technical Specifications
The Uniview 4MP Starlight LPR IP Bullet Camera is an HD-resolution license-plate recognition camera. Paired with an automatic focus & gain WDR zoom lens (8-32mm), connected cameras can automatically focus and adjust to capture license plate information from multiple different countries, even in challenging direct-light conditions. Designed for integration into barrier control systems via built-in Boolean input/outputs for automated smart vehicle access control systems.
IP67 weatherproofing and IK10 vandal resistance are suitable for public installation, indoors or outdoors; including paid parking garages, exterior parking lots, private roads, and more.
Supports additional linkage to audio and intercom for full two-way audio for direct communication with visitors and trespassers.
Includes junction box. Supports DC 12V and PoE (802.3at) power supply (not included).
PKC2640-Z80-IR-P Specs and Features
- Sensor: 1/1.8-inch 4MP CMOS
- Focal length: 8 to 32mm, motorized zoom
- Shutter: Auto/Manual, range: 1/30 to 1/100000s
- Minimum illumination: 0.002lux (F1.7)
- Image collection format: 2688*1520@30 (default), 2688*1520@25
- Resolution:
- Main stream: 2688*1520, 1080P (default), 720P, D1
- Sub stream: 720P (default), D1, 2CIF, CIF
- Third stream: D1 (default), 2CIF, CIF
- Frame rate: 30 (default), 25, 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
- Video compression: H.264 (default), H.265
- ROI: Supports up to 8 regions
- Video OSD: Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents
- Image OSD: Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location
- Application scenario: ? 80km/h for regular roads; Camera with the focal length of 8 to 32mm can be used for regular roads
- Vehicle detection mode: Supports video detection
- License plate number recognition: Supports recognition of license plates with numbers and letters by default
- List configuration: Supports allowlist and blocklist configuration, each list allows 20,000 items; Supports import, export, add, and delete operations
- Barrier opening policy: Open barrier only for the recognized vehicles; Open barrier for all vehicles; Open barrier only for vehicles on the allowlist; Open barrier for vehicles not on the blocklist; Configurable Boolean output ID
- Edge storage: Supports ANR with a Micro SD card, up to 256GB
- Illumination: Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control
- Bracket: 3-axis mounting bracket
- Junction box: The camera comes with a junction box for storing tail cable
- Network interface 1 × 10M/100M RJ45
- Serial port: 1 × RS485
- Boolean output: 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
- Boolean input: 2 x input, supports level (up to DC 5V) and switch signal
- Audio interface: 1 × audio input, 1 × audio output
- Storage interface: 1 × Micro SD card slot
- Power supply: DC12V + 25% - 10%; Max. power consumption: 20W, Supports PoE (802.3at, class 4)
- Dimensions: (L×W×H): 406mm x 126mm x 130mm
- Weight: 2.1kg
- Operating environment: -40°C to 60°C, ?90% RH
- Ingress protection: IP67, IK10
