About the product

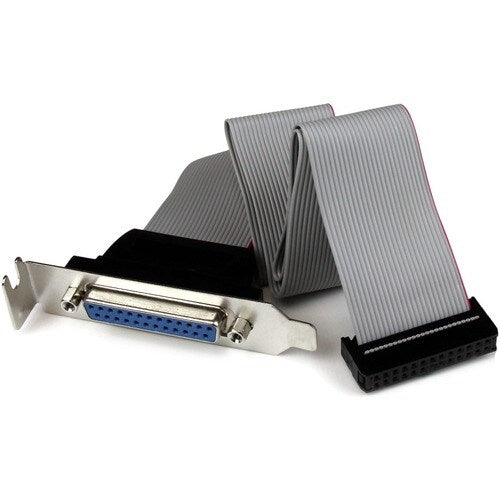

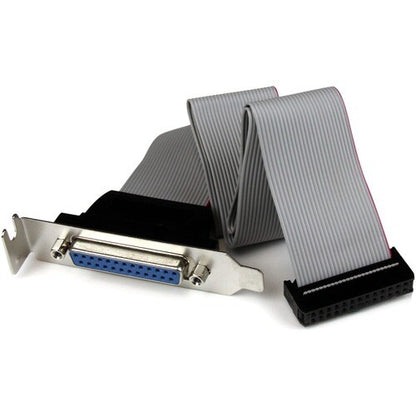

The PLATE25F16LP DB25 to IDC26 Parallel Port Bracket adds a DB25 parallel port to the rear panel of a low profile/small form factor computer, which connects to an IDC26 header connector on the motherboard.
Backed by Lifetime Warranty and constructed of only top quality components, our Parallel Port Header Cable offers a cost-effective solution for adding a Parallel device connection using a compatible motherboard.
More from the Manufacturer

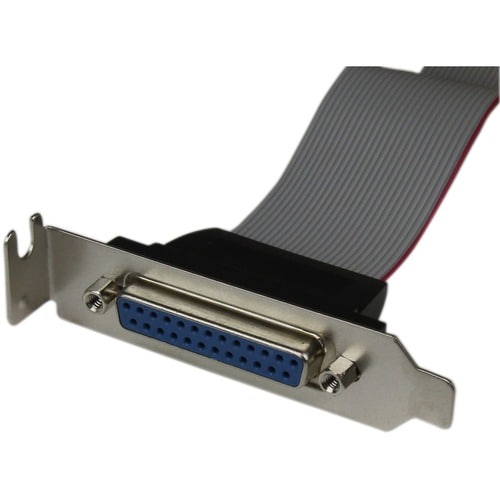

- 1x Parallel DB25 (female) connector

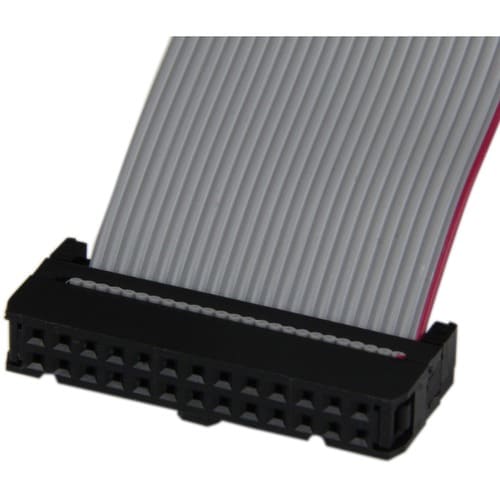

- 1x IDC-26 (female) connector
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH |
| RoHS | |
| WEEE | |
| General Information | |
| Product Type | Data Transfer Cable |
| Manufacturer Part Number | PLATE25F16LP |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | DB-25/IDC Data Transfer Cable |
| Brand Name | StarTech.com |
| Physical Characteristics | |
| Shipping Weight (Approximate) | 1.76 oz (49.90 g) |
| Weight (Approximate) | 1.60 oz (45.36 g) |
| Shipping Height | 8.66" (219.96 mm) |
| Shipping Width | 5.04" (128.02 mm) |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Product Color | Gray |
| Color Family | Gray |
| Technical Information | |
| Cable Length | 1.3 ft (0.41 m) |
| Conductor | Copper |
| Device Supported | Motherboard |
| Cable Type | DB-25/IDC |
| Connector Type on First End | DB-25 Parallel - Female |
| Connector Type on Second End | IDC IDE - Female |
| American Wire Gauge | 28 AWG |
| Connector on First End Details | 1 x 25-pin DB-25 Parallel - Female |
| Connector on Second End Details | 1 x 26-pin IDC IDE - Female |
