About the product
Overview

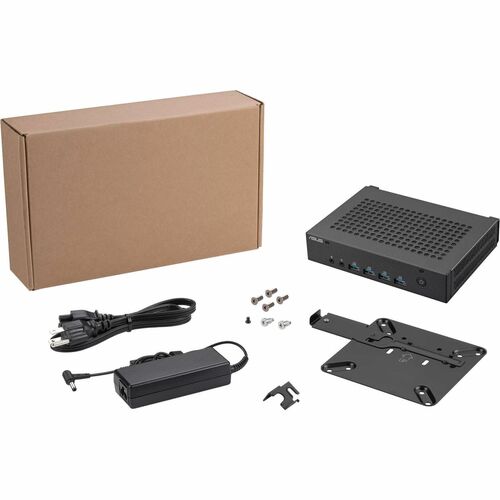

The ultracompact ASUS ExpertCenter PN43 Mini PC is powered by an Intel® processor N100, N200 & N97 with Intel UHD Graphics and is designed to easily handle a wide variety of home and business applications. PN43 can support up to three displays, or two 4K displays, simultaneously for efficient multitasking. Plus, it can be specified with up to two 2.5 Gb Ethernet ports, and offers wide- ranging connectivity with up to seven USB ports plus an additional configurable port for either DisplayPort™ 1.4, VGA, COM, HDMI®, or USB Type-C with DP1.4 options. The diminutive size of ExpertCenter PN43 makes it well-suited for spaces where traditional PCs won't fit - from digital signage to small home-office setups.
- Provides 7 USB ports for responsive and expanded device connections
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- NVMe interface provides quick data transfer and greater throughput
Technical Specifications
| Chipset | |
| Chipset Manufacturer | Intel |
| Controllers | |
| Controller Type | NVMe |
| I/O Expansions | |
| Number of M.2 Interfaces | 1 |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Power Description | |
| Thermal Design Power | 12 W |
| Maximum Power Supply Wattage | 65 W |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 1 |
| Processor | |
| Processor Model | N97 |
| 64-bit Processing | Yes |
| Processor Manufacturer | Intel |
| Storage | |
| Supported Storage Drive Interfaces | PCI Express 3.0 x4 |
| M.2 | |
| Supported Storage Drive Types | SSD |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 7 |
| HDMI (Rear) | Yes |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Miscellaneous | |
| Application/Usage | Kiosk |
| Digital Signage | |
| POS System | |
| Vending Machine | |
| Package Contents |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 1.54 lb (700 g) |
| Form Factor | Mini PC |
| Height | 1.33" (33.90 mm) |
| Width | 6.54" (166.20 mm) |
| Depth | 4.71" (119.70 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | PN43-S-BBN97000X1TUL |
| Manufacturer Website Address | http://www.asus.com |
| Manufacturer | ASUS Computer International |
| Product Model | PN43-S-BBN97000X1TUL |
| Product Name | ExpertCenter PN43-S-BBN97000X1TUL Barebone System |
| Product Line | ExpertCenter |
| Product Series | PN43 |
| Brand Name | Asus |
