About the product
POC-W213 runs on an Intel® Core™ i7 6th generation processo and chipset capable of displaying crystal clear images on its 21.5" wide-screen display. The system is highly integrated and provides a rich selection of high speed I/O connectors, user-friendly function keys, and customizable features. POC-W213, housed in a slim 6.5 cm casing, weighs only 6.9 kg. This high performance fanless terminal is designed for image intense medical applications in operating arenas, at bedside, nursing stations, or other point-of-care locations within the hospital or clinic.
- Runs on an Intel® Core™ i7 6th generation processor with a fanless, high performance profile
- Ultra-thin display, only 65 mm slim at its widest point
- Capable of displaying crystal clear images on its 21.5" wide-screen display
- Isolated design provides unique electric leakage protection for COM ports and LAN ports
- IPX1 water resistant enclosure with additional IP65 dust-tight front panel
- UL60601-1/EN60601-1 certified ensures highest levels of safety and reliability
- Optional Bluetooth, RFID, Blu-ray RW, inner WLAN, Li-ion battery pack, IEEE1394, and DICOM module
- Support Intel® firmware trusted platform module (TPM) with Intel® Platform Trust Technology (Intel® PTT)
Technical Specifications
| Storage | |
| Total Solid State Drive Capacity | 128 GB |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Memory | |
| Maximum Memory Supported | 32 GB |
| Standard Memory | 4 GB |
| Memory Technology | DDR4 SDRAM |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Maximum Power Supply Wattage | 100 W |
| Physical Characteristics | |
| Weight (Approximate) | 15.21 lb (6900 g) |
| Form Factor | Desktop |
| Height | 2.56" (65 mm) |
| Width | 21.65" (550 mm) |
| Depth | 14.17" (360 mm) |
| Processor | |
| Processor Speed | 2.60 GHz |
| Processor Type | Core i7 |
| Processor Model | i7-6600U |
| Processor Manufacturer | Intel |
| Maximum Turbo Speed | 3.40 GHz |
| Processor Generation | 6th Gen |
| Display & Graphics | |
| Screen Resolution | 1920 x 1080 |
| Screen Size | 21.5" (546.10 mm) |
| Screen Mode | Full HD |
| Touchscreen | Yes |
| Graphics Controller Manufacturer | Intel |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |

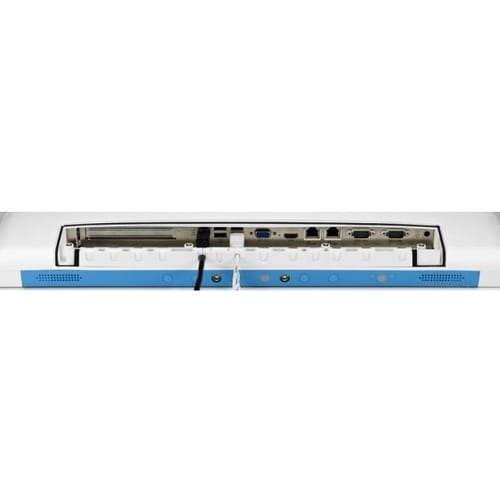

| Interfaces/Ports | |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 2.0 Ports (Rear) | 2 |
| Number of USB 3.0 Ports (Rear) | 2 |
| General Information | |
| Product Type | All-in-One Computer |
| Manufacturer Part Number | POC-W213-A01D-ACE |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | POC-W213 |
| Product Name | Point-of-Care POC-W213 All-in-One Computer |
| Product Line | Point-of-Care |
| Brand Name | Advantech |
