About the product

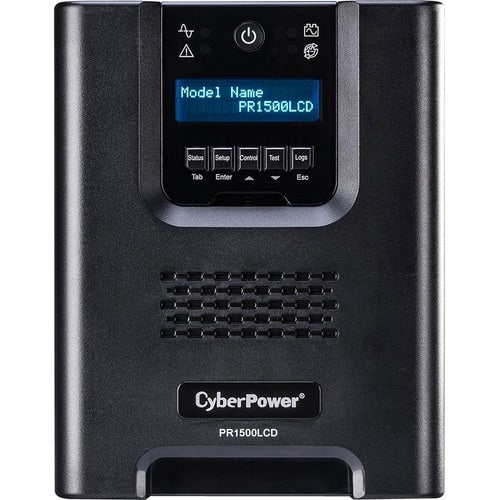

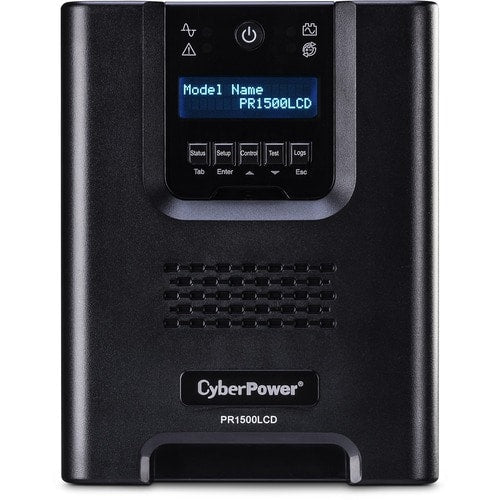

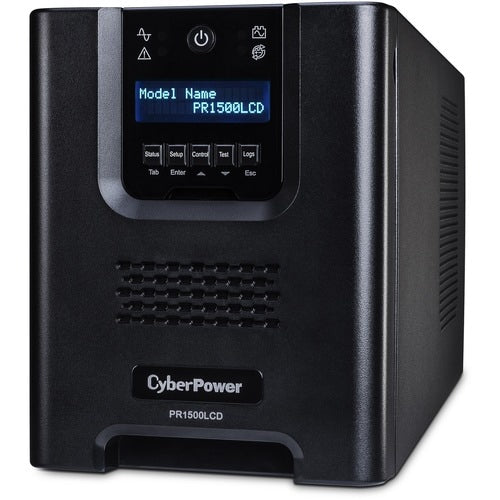

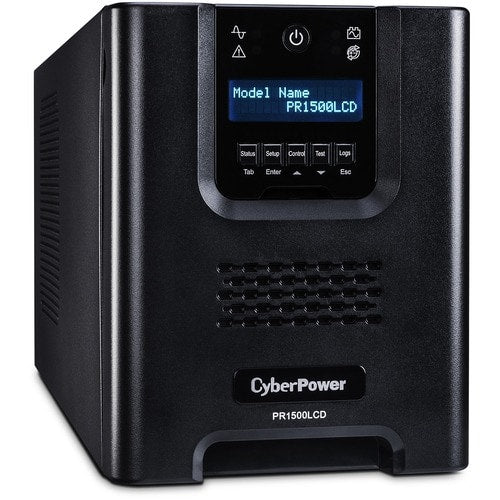

A mini-tower UPS with line interactive topology and a pre-installed SNMP card, the CyberPower Smart App Sinewave PR1500LCDN provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500LCDN uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The RMCARD205, a remote management card that provides remote management and configuration of the UPS via a standard Web browser or network management system (NMS) comes installed. The PR1500LCDN comes with a three-year warranty and a $375,000 Connected Equipment Guarantee.
- Capacity: 1500 VA / 1500 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-15P, 6 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Communication: USB, Serial, SNMP, Relay, EPO
- Management software: PowerPanel® Business Edition
- Remote management: RMCARD205 included
- Warranty: 3 year
Technical Specifications
| Controls/Indicators | |

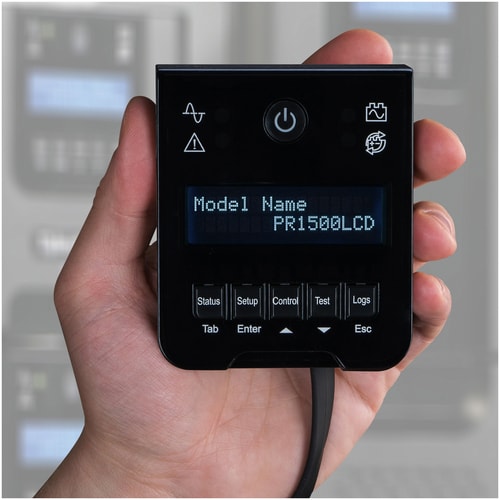

| Status Indicators | LED Indicators:
|
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |

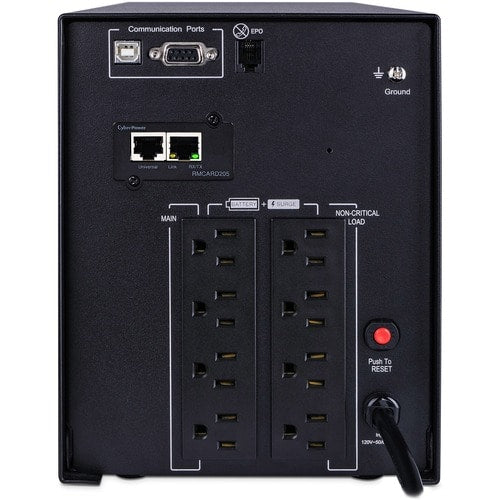

| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | UPS Fault |
| Replace Battery | |
| Overload | |
| Low Battery | |
| Battery Mode | |
| Physical Characteristics | |
| Weight (Approximate) | 54 lb (24493.99 g) |
| Form Factor | Mini-tower |
| Height | 8.70" (220.98 mm) |
| Width | 6.70" (170.18 mm) |
| Depth | 17" (431.80 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR1500LCDN |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR1500LCD |
| Product Name | Smart App Sinewave PR1500LCD 1500VA Mini-Tower UPS |
| Product Series | Smart App Sinewave UPS |
| Brand Name | CyberPower |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Software Included | PowerPanel Business Edition |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Surge Energy Rating | 1030 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 78 V AC - 149 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 1.50 kVA |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 17000 mAh |
| Number of Batteries | 2 |
| Backup/Run Time (Half Load) | 15.10 Minute |
| Backup/Run Time (Full Load) | 4.70 Minute |
| Battery Characteristics | Maintenance-free/Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Technical Information | |
| Application/Usage | Network Device |
| Server | |
| Storage Device | |
| Telecommunication | |
| Corporate | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 4 ms |
| Receptacle Detail | 8 x NEMA 5-15R |
