About the product

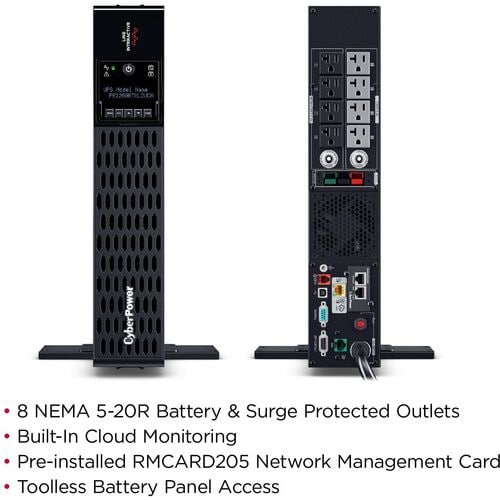

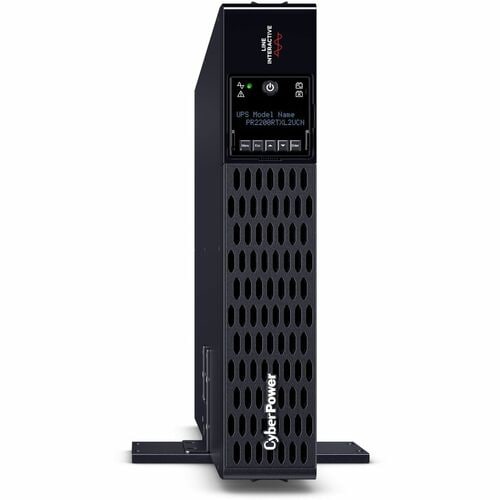

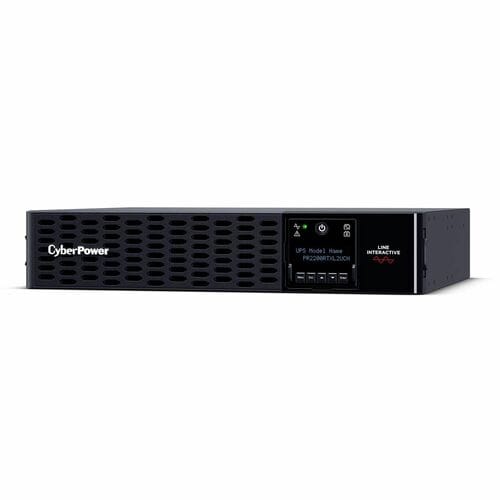

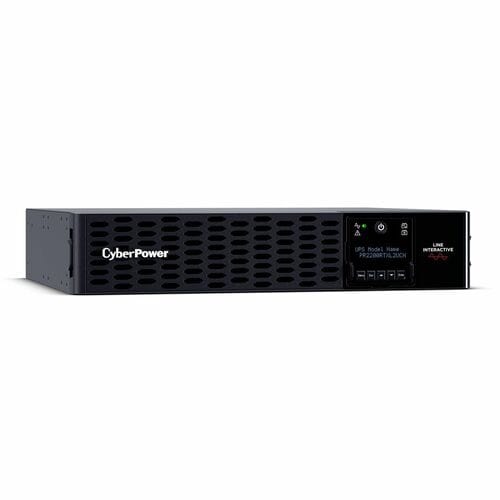

The PR2200RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

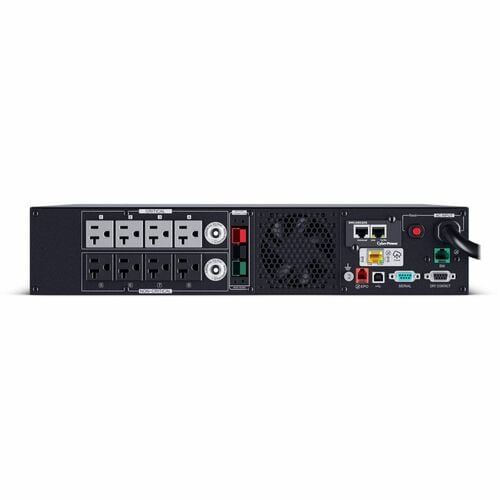

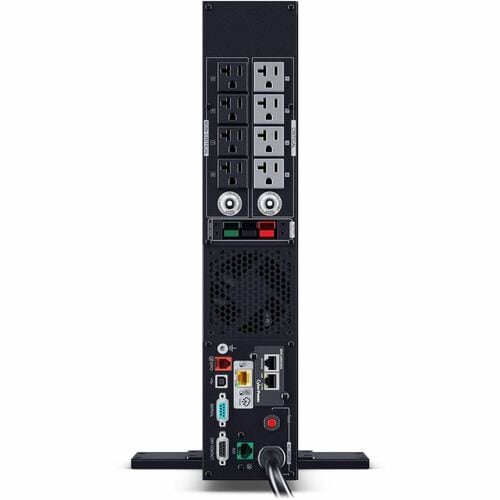

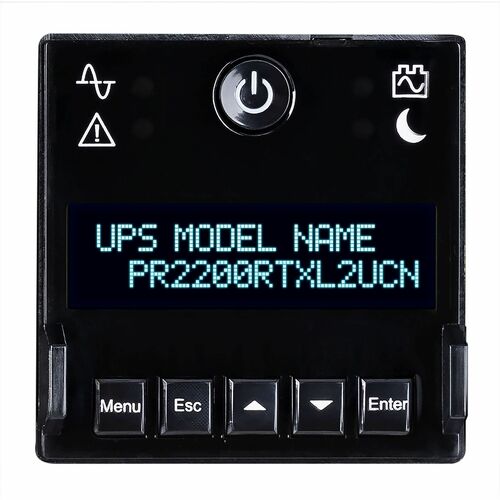

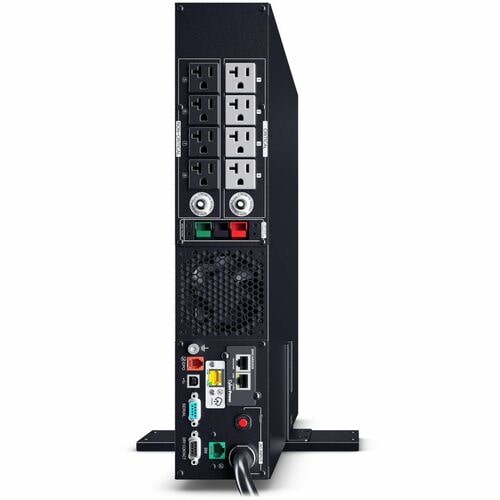

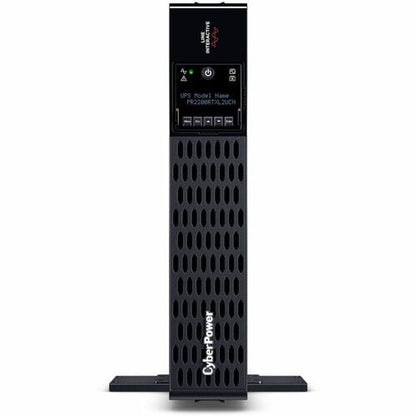

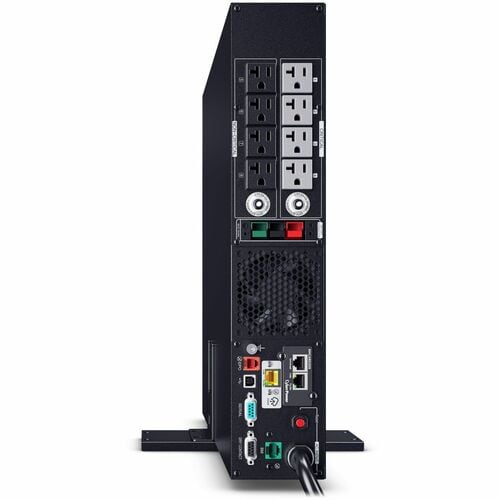

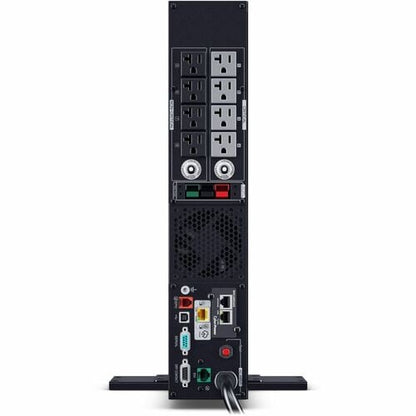

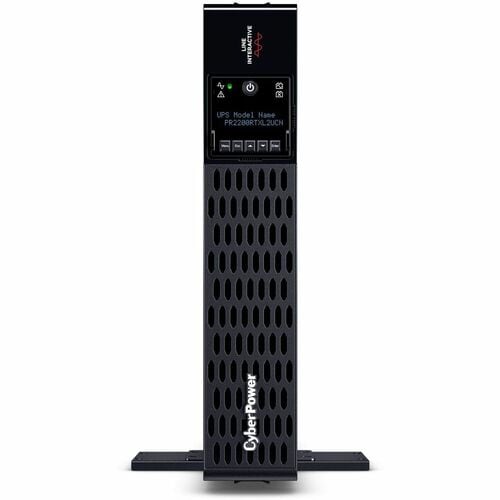

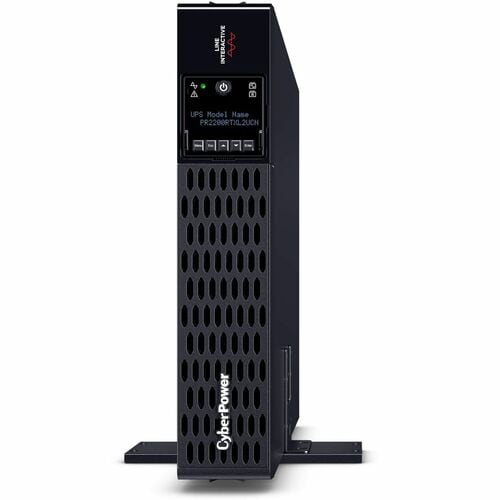

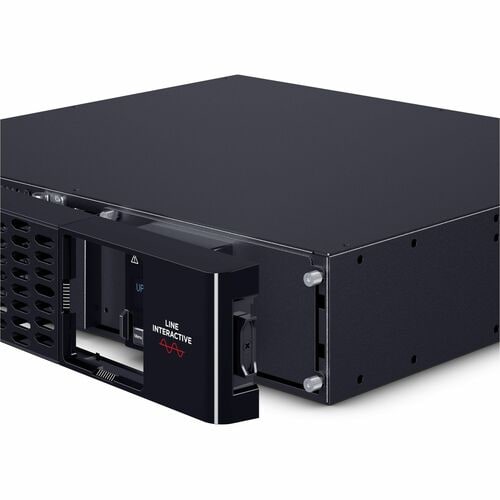

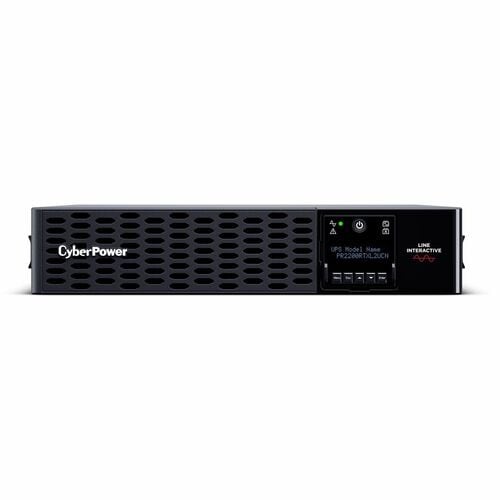

The Smart App Sinewave PR2200RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UC.
- Capacity: 2200 VA / 2200 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 100-120 VAC ± 5%

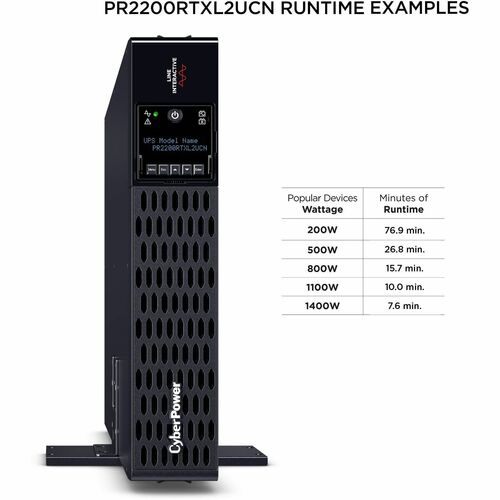

- Runtime (half/full): 10 minutes / 3.2 minutes
- Plug type & cord: NEMA L5-30P, 10 ft. cord

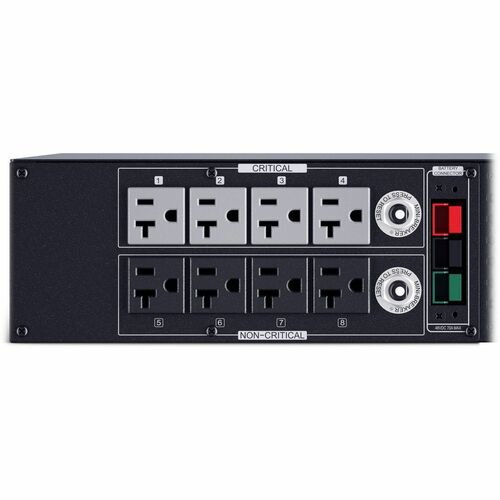

- Outlets: 8 surge + battery backup
- Outlet types: 8 × NEMA 5-20R

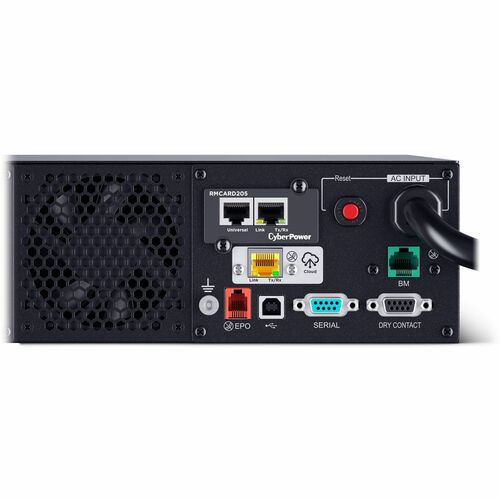

- Communication: USB, Serial, SNMP, Relay, EPO, Cloud
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205. Includes built-in cloud
- Warranty: 3 year
- Connected Equipment Guarantee: $400,000
- ENERGY STAR® certified: Yes
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators: |
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | Connected Equipment Guarantee: Lifetime |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Miscellaneous | |
| Certifications & Standards | UL1778 |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Conditions | |
| Thermal Dissipation | 135 BTU/h |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49209.32 ft (14999000 mm) |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR2200RTXL2UC |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR2200RTXL2UC |
| Product Name | Smart App Sinewave PR2200RTXL2UC 2200VA Rack/Tower UPS |
| Product Line | Smart App Sinewave |
| Brand Name | CyberPower |
| Management | |
| Network Management | Relay-MS Card |
| SNMP/HTTP Remote Monitoring | |
| Dry Contact | |
| Alarm | Overload |
| Fault | |
| Over-charge | |
| Battery Mode | |
| Low Battery | |
| Physical Characteristics | |
| Weight (Approximate) | 79.60 lb (36105.95 g) |
| Form Factor | Rack/Tower |

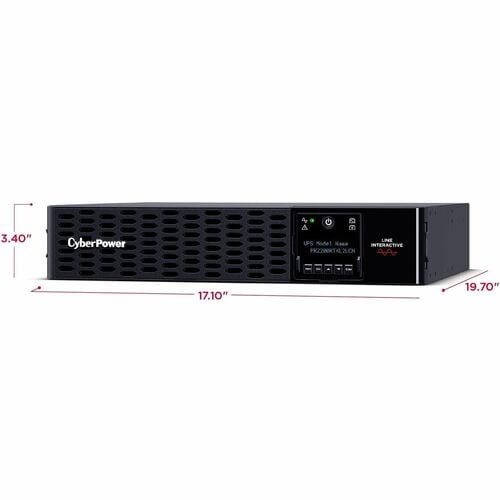

| Length | 24.25" (615.95 mm) |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.10" (434.34 mm) |
| Depth | 19.70" (500.38 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 4 |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3.20 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 125 V AC | |
| 110 V AC | |
| 100 V AC | |
| Surge Energy Rating | 2430 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 75 V AC - 149 V AC |
| 100 V AC - 125 V AC | |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 63 Hz |
| 47 Hz | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 2.20 kW |
| Output Power Factor | 1 |
| Technical Information | |
| Application/Usage | VoIP |
| Telecommunication | |
| Storage Device | |
| Server | |
| Network Device | |
| Equipment | |
| Corporate | |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA 5-20R |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 8 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 11 ms |
| Receptacle Detail | 8 x NEMA 5-20R |
