About the product

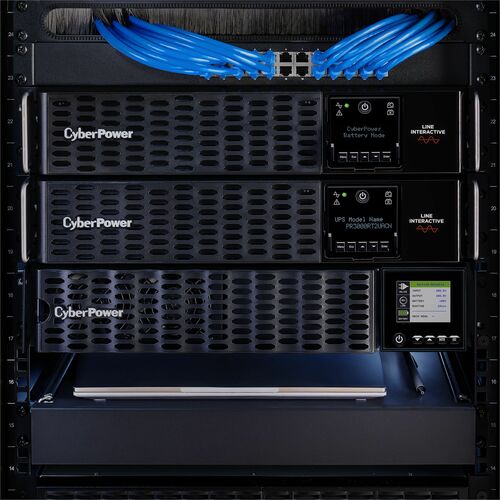

The PR3000RTXL2UACN is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR3000RTXL2UACN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UACN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes built-in cloud monitoring and pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UACN.
- Experience higher efficiency with lower energy cost
- 3 kVA load capacity - work without any interruption during power outages
- 3 kW load capacity - backup power for your valuable electronics
- Keep your sensitive devices powered with a backup of up to 3.70 minute at full load
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Relay-MS Card | |
| Alarm | Battery Mode |
| Interfaces/Ports | |
| USB | No |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Miscellaneous | |
| Certifications & Standards | UL1778 |
| Environmentally Friendly | Yes |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Battery Information | |
| Hot Swappable | Yes |
| Battery Capacity | 6000 mAh |
| Backup/Run Time (Half Load) | 11.70 Minute |
| Backup/Run Time (Full Load) | 3.70 Minute |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Environmental Conditions | |
| Thermal Dissipation | 192.50 BTU/h |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Maximum Storage Elevation | 49209.32 ft (14999000 mm) |
| Sound Emission (A-Weighted) | 57.5 dB(A) |
| Physical Characteristics | |
| Weight (Approximate) | 88.41 lb (40100 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.40" (86.40 mm) |
| Width | 17.10" (434.30 mm) |
| Depth | 24.80" (629.90 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR3000RTXL2UACN |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR3000RTXL2UACN |
| Product Name | Smart App Sinewave PR3000RTXL2UACN 3000VA Rack/Tower UPS |
| Product Line | Smart App Sinewave |
| Brand Name | CyberPower |
| Product Condition | New |
| Technical Information | |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L5-30R |
| NEMA 5-20R | |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Number of Battery & Surge Outlets | 9 |
| Number of Critical Load Outlets | 4 |
| Transfer Time | 13 ms |
| Receptacle Detail | 1 x NEMA L5-30R |
| 8 x NEMA 5-20R | |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| 100 V AC | |
| 120 V AC | |
| Surge Energy Rating | 2430 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 75 V AC - 149 V AC |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 50 Hz |
| 60 Hz | |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 3 kW |
