About the product

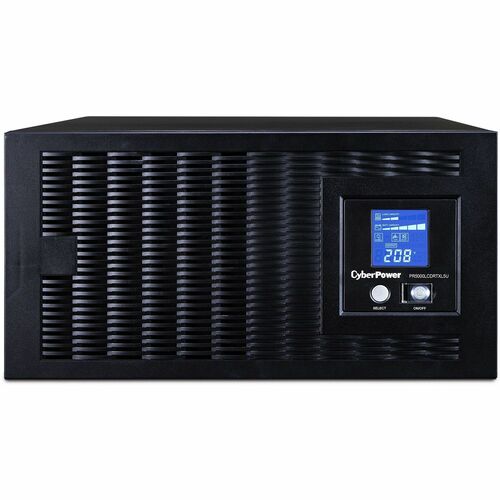

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App Sinewave PR5000LCDRTXL5U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR5000LCDRTXL5U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR5000LCDRTXL5U comes with a three-year warranty (including coverage of batteries) and a $300,000 Connected Equipment Guarantee.
- Capacity: 5000 VA / 4500 W
- Topology: Line Interactive
- Waveform: Sine Wave
- Output: 208Vac ± 5%
- Plug type & cord: NEMA L6-30P, 10 ft. cord
- Outlets: 5 (2 critical load, 3 non-critical)

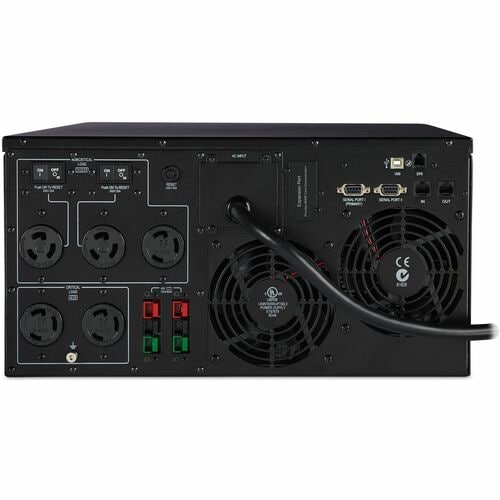

- Outlet types: 3 x NEMA L6-30R, 2 x NEMA L6-20R
- Communication: USB, Serial, SNMP, Relay, EPO
- Data line protection: Telephone, Network
- Management software: PowerPanel® Business Edition
- Cisco compatible: Yes
- Remote management: Yes
- Environmental sensor: Yes, with optional RMCARD205
- ENERGY STAR® qualified: Yes
- Warranty: 3 year
- Connected Equipment Guarantee: $300,000
Technical Specifications
| Controls/Indicators | |
| Status Indicators | LCD Panel:
LED Indicators:
|
| Display & Graphics | |
| Display | LCD |
| Warranty | |
| Additional Warranty Information | Three-year warranty (including coverage of batteries) |
| Miscellaneous | |
| Software Included | PowerPanel® Business Edition |
| Certifications & Standards |
|
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Conditions | |
| Thermal Dissipation | 4332 BTU/h |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Relay-MS Card | |
| Alarm | Low Battery |
| Battery Mode | |
| Overload | |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PR5000LCDRTXL5U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Manufacturer | CyberPower Systems, Inc |
| Product Model | PR5000LCDRTXL5U |
| Product Name | Smart App Sinewave PR5000LCDRTXL5U 5000VA Tower/rack convertible UPS |
| Product Line | Smart App Sinewave |
| Brand Name | CyberPower |
| Physical Characteristics | |
| Weight (Approximate) | 222.01 lb (100700 g) |
| Form Factor | Tower/Rack Convertible |
| Rack Height | 5U |
| Height | 8.74" (222 mm) |
| Width | 17.01" (432 mm) |
| Depth | 24.25" (616 mm) |
| Product Color | Black |
| Color Family | Black |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 16 |
| Backup/Run Time (Half Load) | 26 Minute |
| Backup/Run Time (Full Load) | 10 Minute |
| Battery Characteristics | Sealed |
| Replaceable Battery | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Surge Energy Rating | 2430 J |
| Waveform Type | Sine Wave |
| Input Voltage Range | 208 V AC - 240 V AC |
| 131 V AC - 268 V AC | |
| 148 V AC - 254 V AC | |
| Output Frequency | 60 Hz |
| 50 Hz | |
| Input Frequency | 47 Hz |
| 63 Hz | |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 4.50 kW |
| Output Power Factor | 0.9 |
| Technical Information | |
| Application/Usage | Mission Critical Equipment |
| Network Device | |
| Corporate | |
| Workstation | |
| VoIP | |
| Telecommunication | |
| Storage | |
| Server | |
| Dataline Protection | Coax |
| RJ-11/RJ-45 | |
| Emergency Power OFF | Yes |
| Features | Cold Start Function |
| Auto Restart | |
| Self Test | |
| Audible Alarm | |
| Auto Charge | |
| Overload Protection | Yes |
| Surge Suppression | Yes |
| Plug/Connector Type | NEMA L6-30P |
| Cord Length | 10 ft (3.05 m) |
| Receptacle Type | NEMA L6-20R |
| NEMA L6-30R | |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Number of Battery & Surge Outlets | 5 |
| Number of Critical Load Outlets | 2 |
| Transfer Time | 4 ms |
| Receptacle Detail | 3 x NEMA L6-30R |
| 2 x NEMA L6-20R |
