About the product

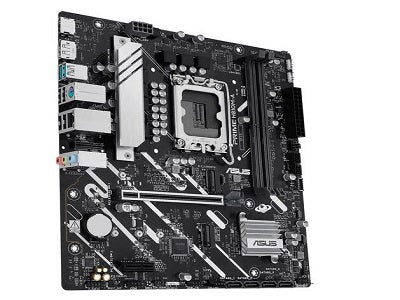

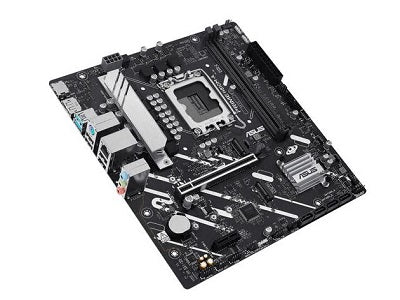

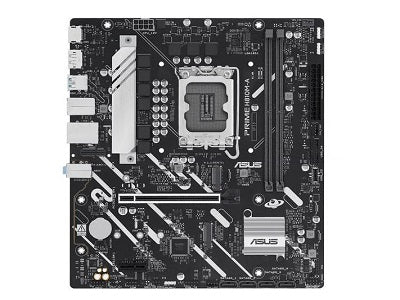

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel Core Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Its designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Technical Specifications
| Dimensions&Miscellaneous | |
| Model: | PRIME H810M-A CSM |
| Width: | 9.6 Inch |
| Depth: | 8.75 Inch |
| Primary Information | |
| Mainboard Form Factor: | mATX |
| Compatible Processors: | Support Intel Core Ultra Processors (Series 2) , LGA1851,Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**, |
| Audio Output: | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Processor | |
| Processor / Socket Type: | FCLGA1851 |
| Memory | |
| RAM / Technology: | DDR5 |
| RAM / Max Supported Size: | 128 GB |
| Video | |
| Video Interface: | HDMI; DisplayPort |
| Expansion | |
| Expansion Slots Total (Free): | 1 x PCIe 4.0 x1 slot |
| Interfaces & Connections: | Rear USB (Total 6 ports)2 x USB 10Gbps ports (2 x Type-A),4 x USB 2.0 ports (4 x Type-A),Front USB (Total 5 ports)1 x USB 5Gbps connector (supports USB Type-C)*,1 x USB 5Gbps header supports 2 additional USB 5Gbps ports,1 x USB 2.0 header supports 2 additional USB 2.0 ports, |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
