About the product

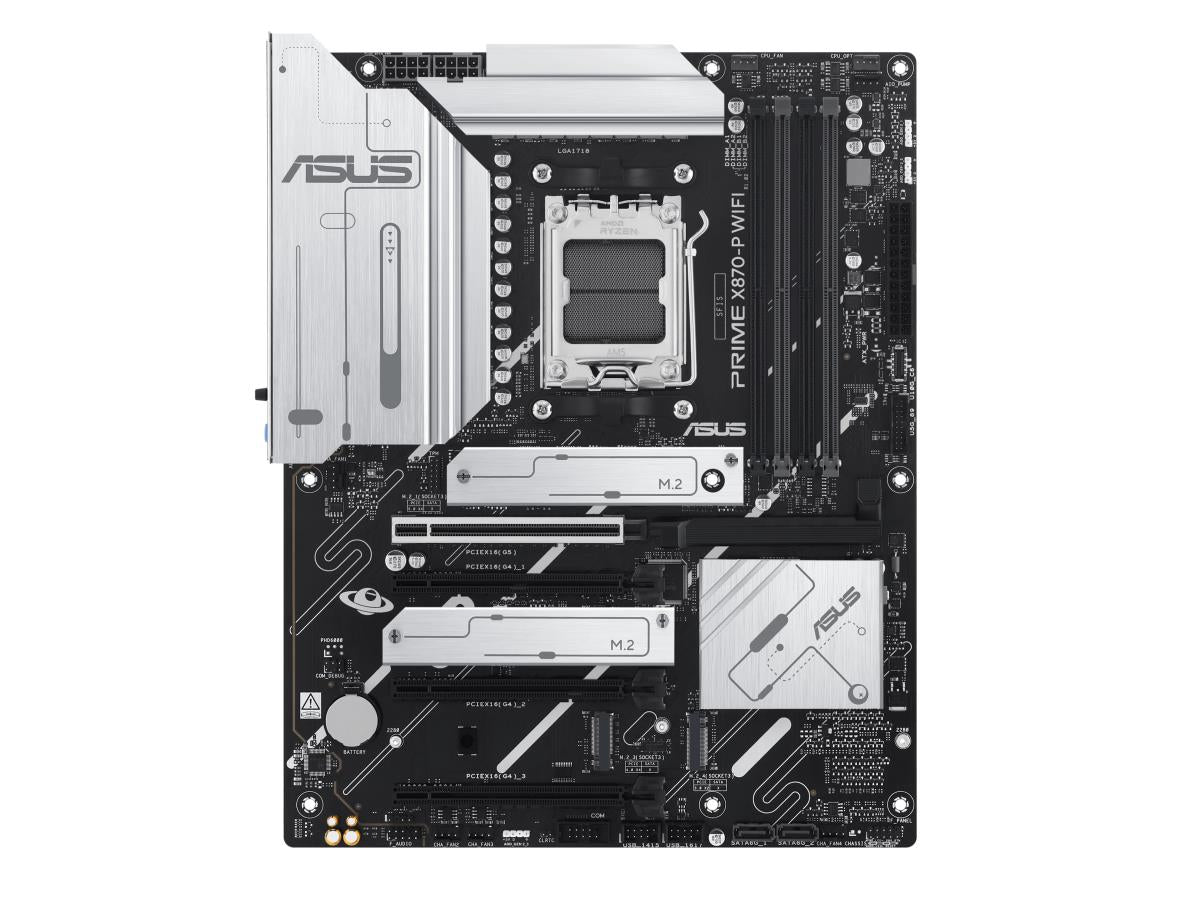

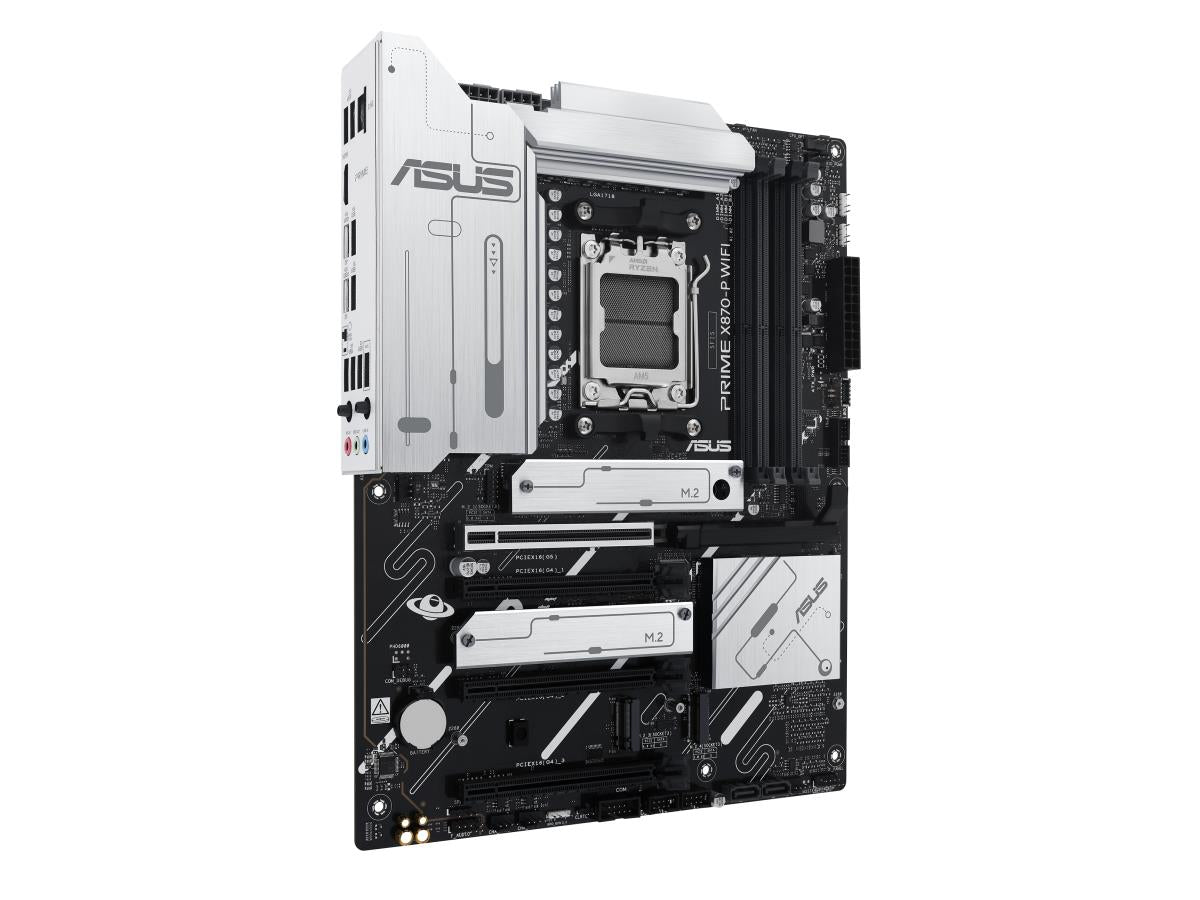

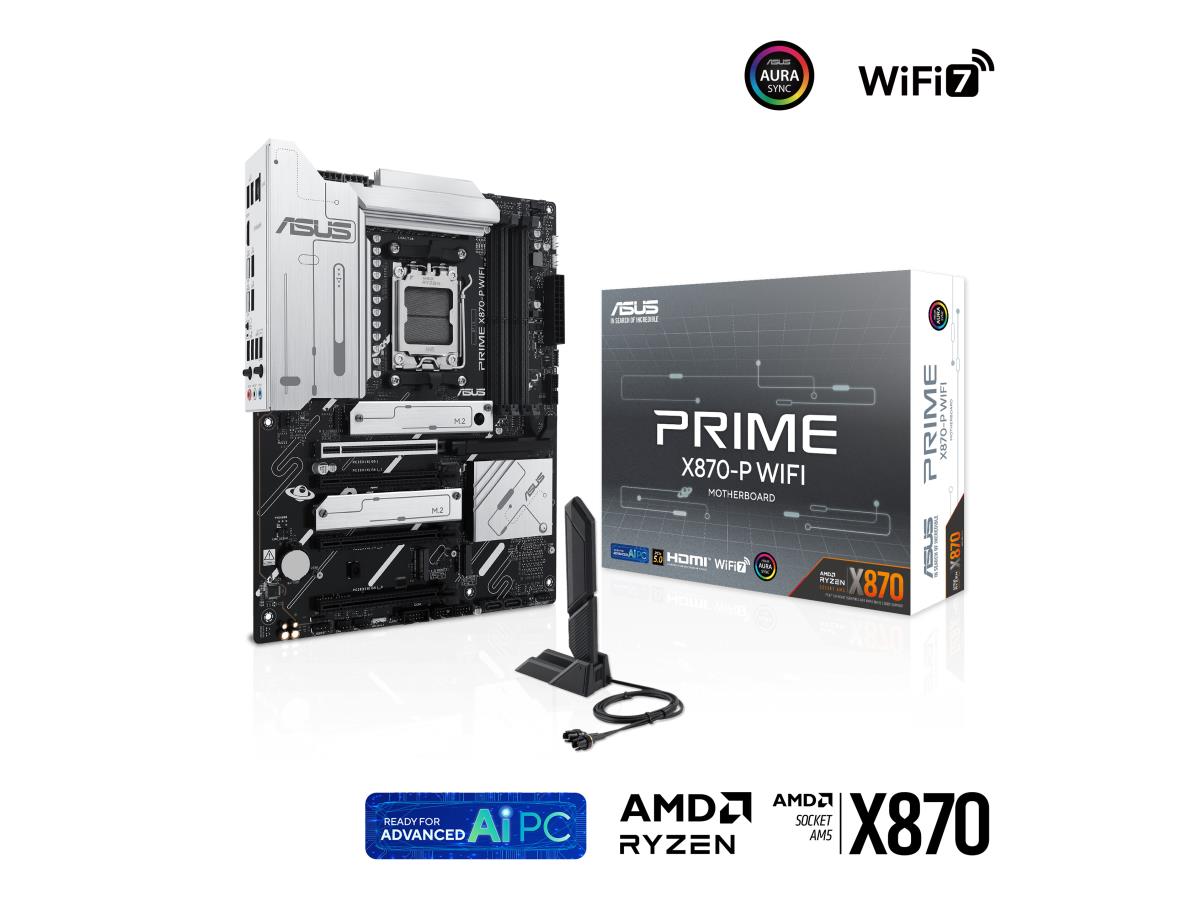

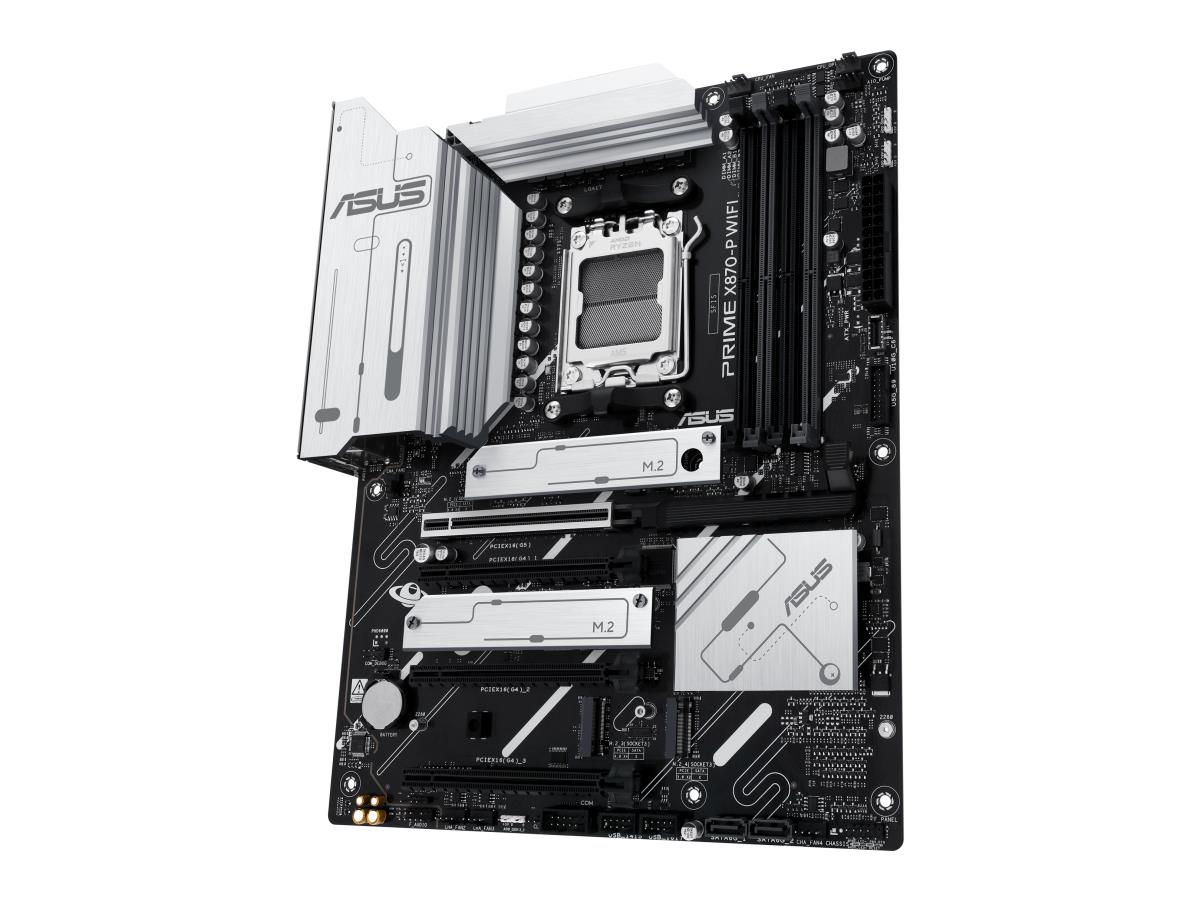

ASUS PRIME X870-P WIFI is equipped with outstanding features, including 8-layer PCB, 14+2+1 80A DrMOS power stages, DDR5, PCIe 5.0 x16 SafeSlot with Q-Release, four M.2 including one PCIe 5.0 M.2, Wi-Fi 7, 2.5Gb, HDMI, 2 x USB4 (40G) ports support USB Type-C display outputs, USB 10Gbps Type-C and Type-A
Technical Specifications
| Primary Information | |
| Mainboard Form Factor: | ATX |
| Compatible Processors: | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Audio Output: | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| Processor | |
| Processor / Socket Type: | Socket AM5 |
| Memory | |
| RAM / Technology: | DDR5 |
| Data Integrity Check: | ECC; Non-ECC |
| RAM / Max Supported Size: | 192 GB |
| Expansion | |
| Expansion Slots Total (Free): | AMD Ryzen 9000 & 7000 Series Desktop Processors*1 x PCIe 5.0 x16 slot (supports x16 mode);AMD Ryzen 8000 Series Desktop Processors1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD X870 Chipset3 x PCIe 4.0 x16 slots (support x1 mode). |
| Interfaces & Connections: | Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) ;1 x USB 10Gbps port (1 x Type-A);3 x USB 5Gbps ports (3 x Type-A);4 x USB 2.0 ports (4 x Type-A).Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C);1 x USB 5Gbps header supports 2 additional USB 5Gbps ports;2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Dimensions&Miscellaneous | |
| Width: | 12 Inch |
| Depth: | 9.6 Inch |
| Service&Support | |
| Service & Support Type: | 3 Years |
| Special Feature | |
| COO: | Inquire |
| TAA compliance: | Inquire |
