About the product

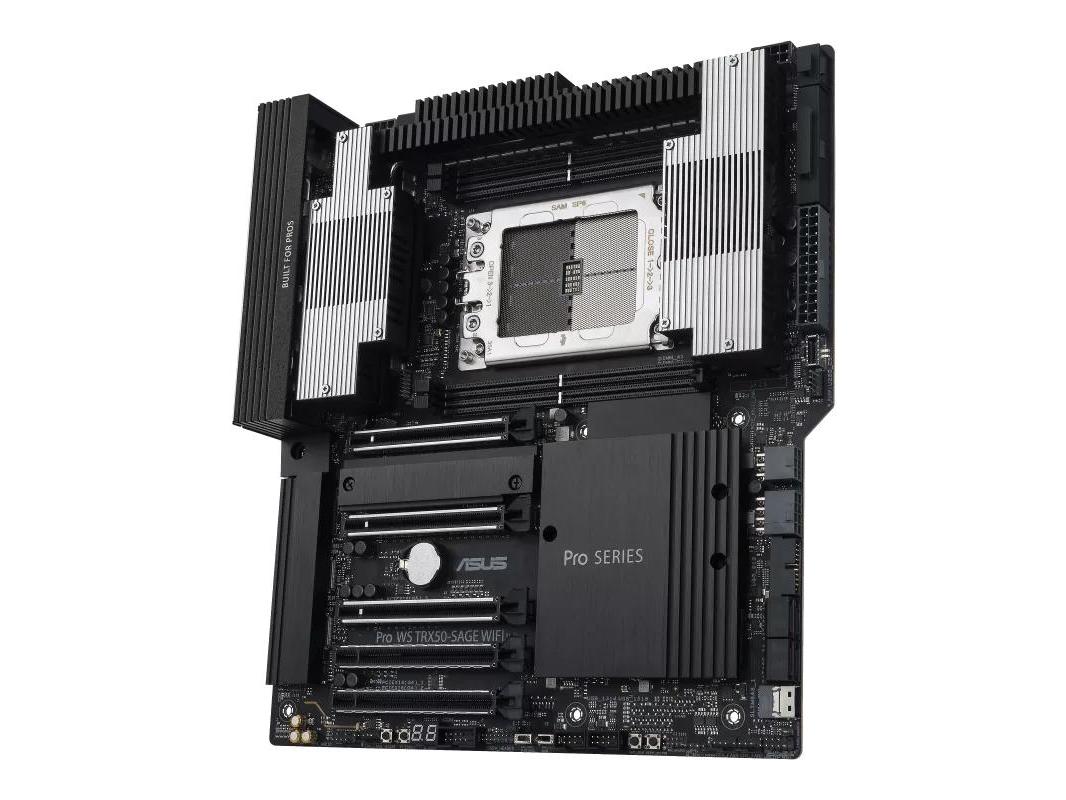

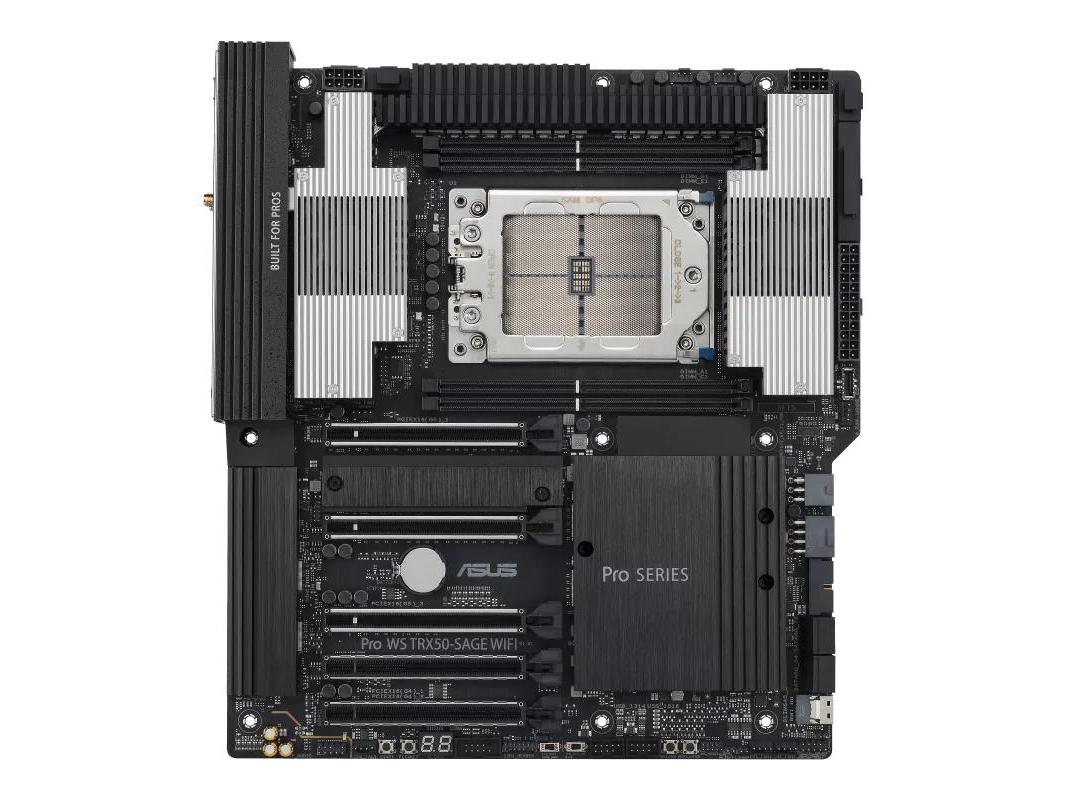

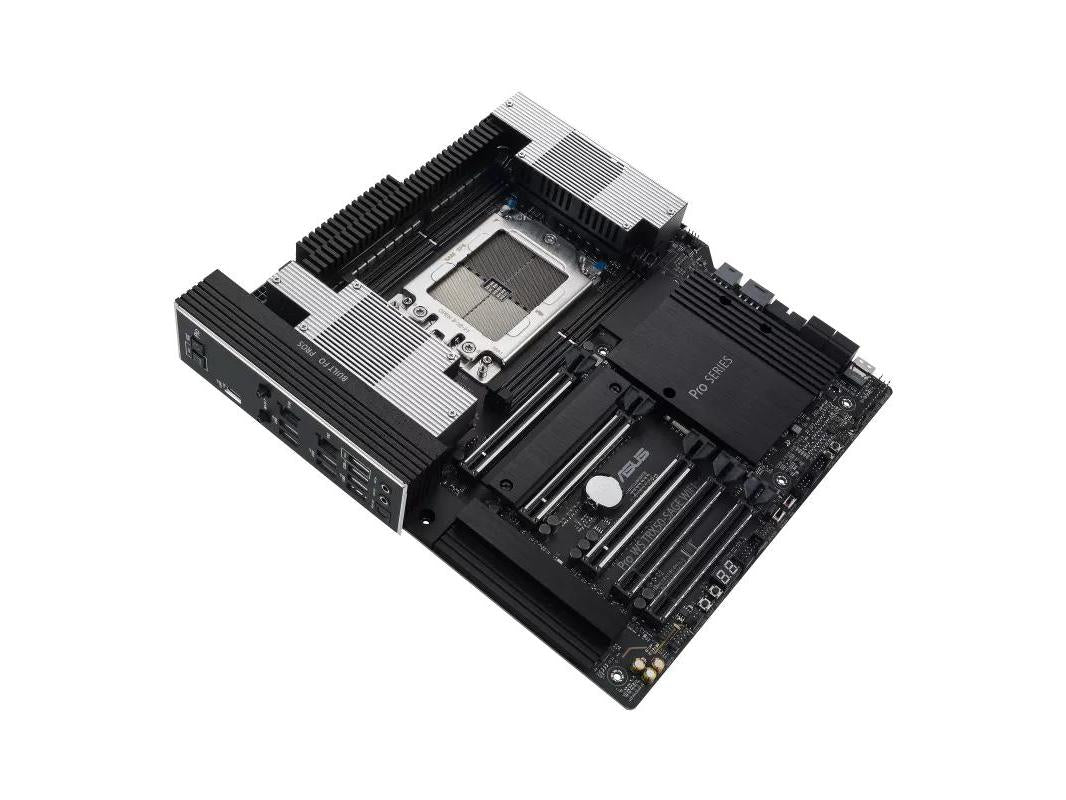

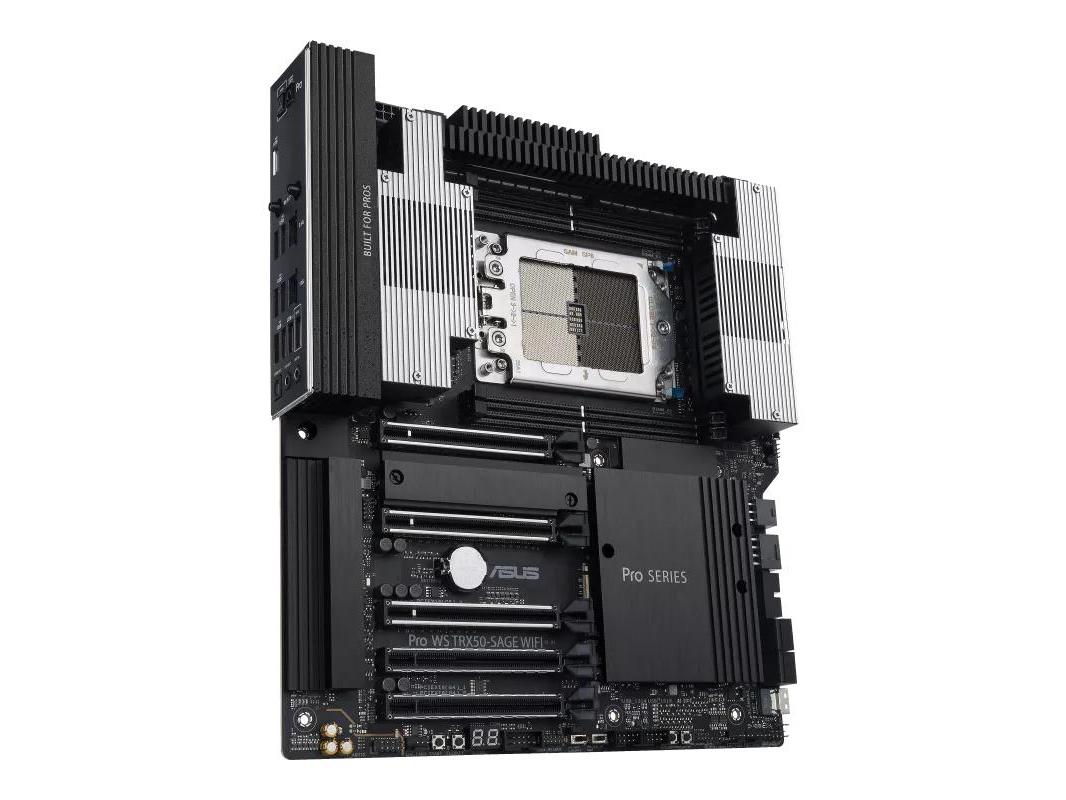

The ASUS PRO WS TRX50-SAGE WIFI motherboard sets new standards for computing performance. Designed for professionals and enthusiasts, it supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series processors, offering powerful processing capabilities for complex tasks and demanding applications. With DDR5 SDRAM support, users benefit from faster memory speeds and improved efficiency, crucial for multitasking and high-load scenarios.
Connectivity is a key feature of this motherboard, featuring a wide array of ports including USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, and multiple M.2 sockets for versatile peripheral connections and rapid data transfer rates. Networking is robust, with 10 Gigabit Ethernet and Wi-Fi 7 ensuring fast and reliable connections for streaming, gaming, and professional use.
Audio quality is enhanced with high definition audio and the Realtek ALC1220P codec, providing a rich sound experience. The motherboard also includes comprehensive cooling solutions, such as M.2 and VRM heatsinks, to maintain optimal performance under heavy loads. With these features, the ASUS PRO WS TRX50-SAGE WIFI motherboard is designed to meet the needs of demanding users.
Technical Specifications
| Primary Information | |
| Product Description: | ASUS PRO WS TRX50-SAGE WIFI - motherboard - SSI CEB - Socket sTR5 - AMD TRX50 |
| Product Type: | Motherboard - SSI CEB |
| Chipset Type: | AMD TRX50 |
| Processor Socket: | 1 x Socket sTR5 |
| Compatible Processors: | (supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series) |
| Max RAM Size: | 1 TB |
| RAM Supported: | 4 DIMM slots - DDR5, ECC, registered |
| Storage Ports: | 4 x SATA-600 (RAID), 3 x M.2, 1 x SlimSAS |
| USB / FireWire Ports: | 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 6 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 1 x USB-C + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers) |
| Audio: | HD Audio |
| LAN: | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| General | |
| Product Type: | Motherboard - SSI CEB |
| Chipset Type: | AMD TRX50 |
| Processor Socket: | Socket sTR5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series) |
| Supported RAM | |
| Max Size: | 1 TB |
| Technology: | DDR5 |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Registered |
| Features: | Registered, four DDR channels, AMD EXPO technology |
| Audio | |
| Type: | HD Audio |
| Audio Codec: | Realtek ALC1220P |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Marvell AQtion / Intel I226-LM |
| Network Interfaces: | 10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 (x8 mode) ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x SlimSAS |
| RAID Features: | AMD RAID Xpert2 Technology |
| Interfaces: | 6 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 2.0 ¦ 2 x antenna ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x Thunderbolt 4 - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors: | 2 x 8-pin ATX12V connectors, 2 x 24-pin main power connectors, 2 x 8-pin PCI Express to CPU power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS Q-Connector, Q-Code, Preboot eXecution Environment (PXE), Clear CMOS Button, overcurrent protection, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, pre-mounted I/O shield, FlexKey button, ASUS ProCool II, M.2 Q-Latch, ReTry button, Start button, Safe boot button, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink with fan, Slow Mode switch, 18x2+3+4+4 Phase Power Design |
