About the product

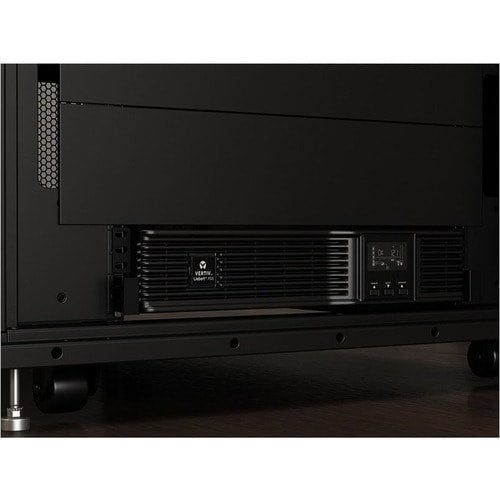

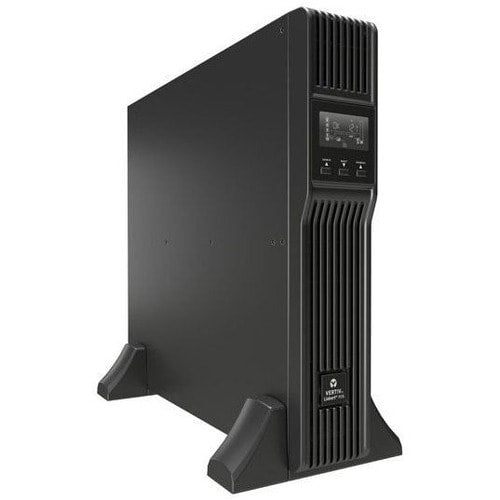

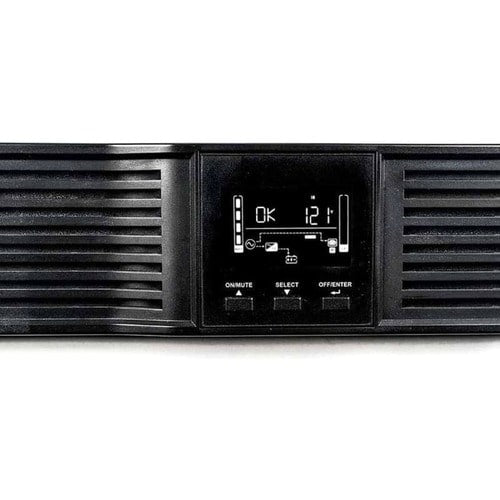

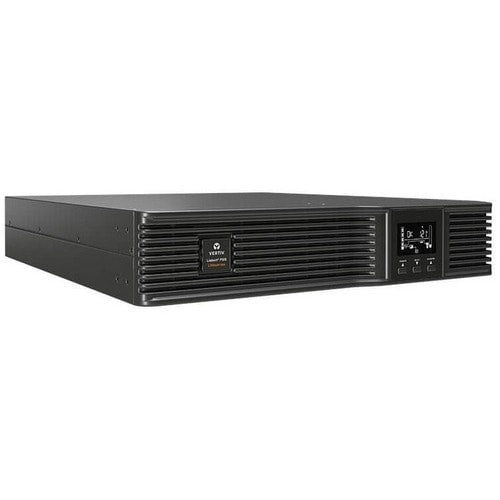

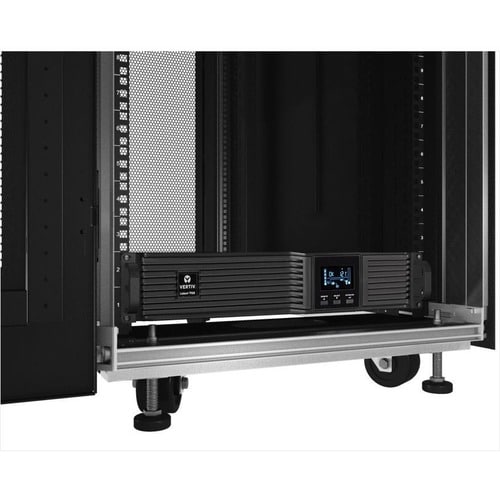

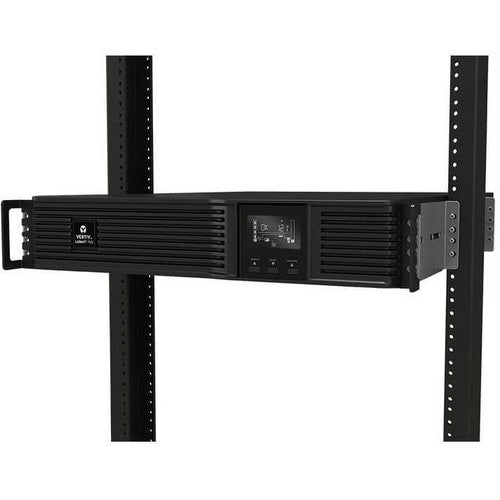

The Vertiv Liebert PSI5 Lithium-Ion uninterruptible power supply (UPS) is designed to safeguard critical equipment in edge and distributed IT applications. This 3kVA UPS offers more than double the battery life of a traditional VLRA UPS, and comes with a five-year advanced replacement warranty. This Lithium-Ion battery backup also includes automatic voltage regulation (AVR) technology to further extend battery life and provides premium protection from power disturbances. This line interactive UPS system provides reliable protection and pure sine wave output on battery for servers and networking equipment. With up to 20 minutes of runtime at half load and 8.9 minutes at full load, this reliable UPS system provides plenty of runtime on battery during an outage for an orderly shutdown. It comes with a rotating LCD display to allow both rack and tower configurations. It allows remote management and environmental monitoring with additional communication card and sensors.
- Works adequately in situations where the supply is prone to sags and surges
- 3 kVA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 2.70 kW load capacity
- 3 kVA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 9 minute at full load
- Up to 9 minute runtime on full load to preserve critical data from power shortage interruptions
Technical Specifications
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Battery Information | |
| Battery Life | 10 Year |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Hot Swappable | Yes |
| Backup/Run Time (Half Load) | 20 Minute |
| Backup/Run Time (Full Load) | 9 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Interfaces/Ports | |
| USB | Yes |
| VGA | No |
| Network (RJ-45) | Yes |
| Modem (RJ-11) | Yes |
| Serial Port | No |
| EPO Port | Yes |
| General Information | |
| Product Type | Line-interactive UPS |
| Manufacturer Part Number | PSI5-3000RT120LI |
| Manufacturer Website Address | http://www.vertiv.com/ |
| Manufacturer | Vertiv |
| Product Name | PSI5-3000RT120LI 3000VA Rack/Tower UPS |
| Product Series | PSI5 |
| Brand Name | Vertiv Liebert |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 75 V AC - 146 V AC |
| Load Capacity (VA) | 3 kVA |
| Load Capacity (Watt) | 2.70 kW |
| Physical Characteristics | |
| Weight (Approximate) | 53.50 lb (24267.19 g) |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 24.80" (629.92 mm) |
| Product Color | Black |
| Color Family | Black |
| Miscellaneous | |

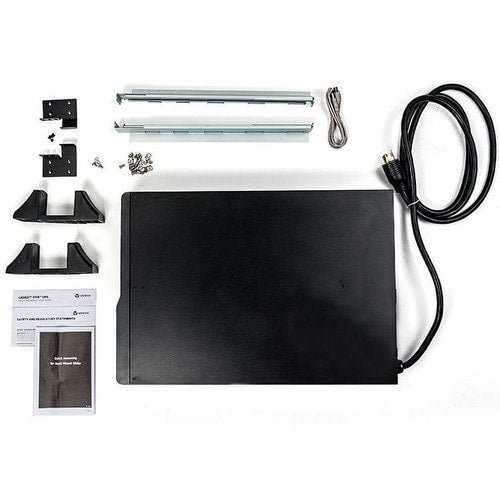

| Package Contents |
|
| Software Included | Power Insight 2.2 |
| Certifications & Standards |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Technical Information | |
| Application/Usage | Network Equipment |
| Mission Critical Equipment | |
| Server | |
| Dataline Protection | RJ-45 |
| RJ-11 | |

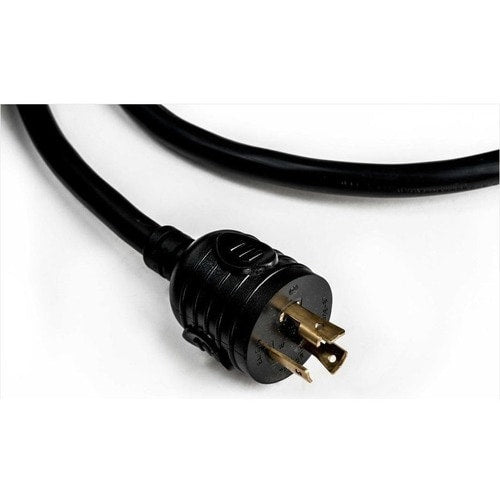

| Plug/Connector Type | NEMA L5-30P |
| Cord Length | 10 ft (3.05 m) |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-20R |
| NEMA L5-30R | |
| EMI/RFI Noise Filter | Yes |
| AVR | Yes |
| Transfer Time | 4 ms |

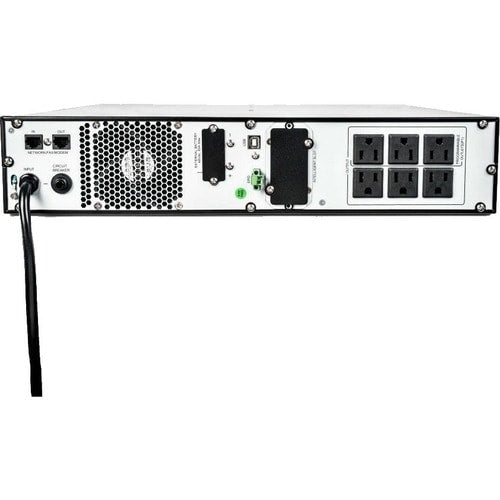

| Receptacle Detail | 1 x NEMA L5-30R |
| 6 x NEMA 5-20R |
