About the product

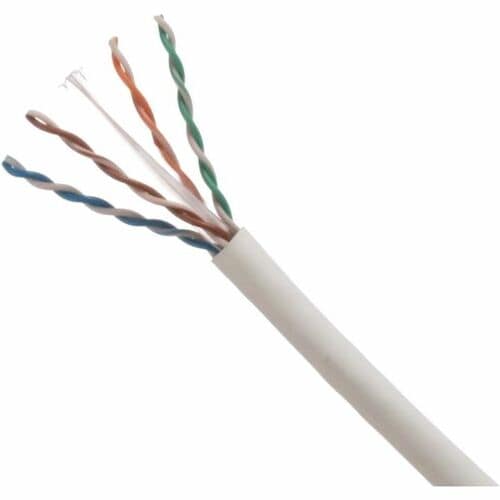

The TX6000™ Cat 6 UTP copper cable is constructed of 23 AWG copper conductors with FEP/polyolefin (CMP) insulation. The copper conductors shall be twisted in pairs, separated by a cross-divider and covered by a low smoke, flame-retardant, plenum-rated, white jacket.
- Third party tested: Cable has been tested as part of the TX6000 U/UTP Copper Cabling System by an independent laboratory and complies with the electrical channel requirements of the following Standard: ANSI/TIA-568.2-D Category 6
- Guaranteed channel performance above the Standards: Industry leading guaranteed channel performance exceeds the TIA/ISO Standards with headroom guaranteed
- Integrated pair divider: Separates pairs for exceptional cable performance
- Reelex™ packaging: Compact carton ensures proper performance and provides quick installation
- Tested beyond the Standards: Cable has been characterized to 650 MHz, 400 MHz above the Standard
- Extended temperature range: Allows operation in 90°C (194°F) ambient environment providing error-free performance in high-density cabinets and large cable bundles running PoE+ or PoE++ applications
- Descending length cable markings: Easy identification of remaining cable reduces installation time and cable scrap
Technical Specifications
| Miscellaneous | |
| Country of Origin | United States |
| General Information | |
| Product Type | Network Cable |
| Manufacturer Part Number | PUP6004WHWLPZ |
| Manufacturer Website Address | http://www.panduit.com |
| Manufacturer | PANDUIT CORP |
| Product Name | Copper Cable, Cat 6, 23 AWG, UTP, CMP, White |
| Product Line | TX6000 |
| Brand Name | PanNet |
| Physical Characteristics | |
| Material Details |
|
| Insulation Material | Polyolefin |
| Fluorinated Ethylene Propylene (FEP) | |
| Jacket Material | Fluorinated Ethylene Propylene (FEP) |
| Product Color | White |
| Product Material | Copper |
| Jacket Color | White |
| Technical Information | |
| Cable Length | 1000.7 ft |
| Data Transfer Rate | 10 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | Plenum |
| CMP | |
| Shielding | No |
| Features | Unshielded Twisted Pair (UTP) |
| PoE | |
| Flexible | |
| Bendable | |
| Flame Retardant | |
| Number of Conductors | 8 |
| Cable Type | Category 6 |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| American Wire Gauge | 23 AWG |
| Number of Pairs | 4 |
