About the product

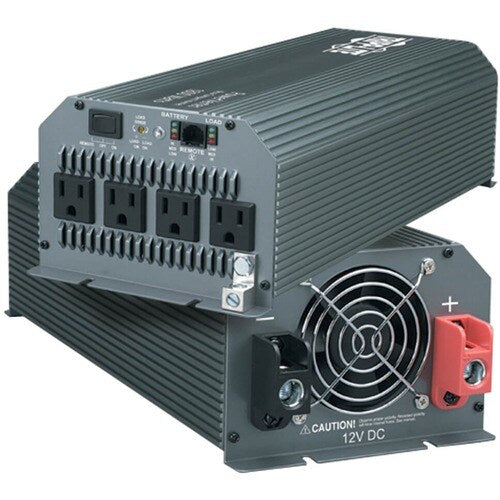

Utilize your vehicle's battery to efficiently power office equipment on the road or power tools at a work site. Continuously supplies up to 1000 watts of 120V AC power to 4 AC outlets from any 12V battery. Includes a set of DC terminals for simple installation. Compact, lightweight metal case design is among the smallest, most rugged inverters available at this power level.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.
NOTE: To protect against high current draw that may occur during inverter failure, a fuse link rated at 175a should be positioned no more than 18" from the PV1000HF's battery in the positive line.
- 12V DC input; 120V AC output; 4 outlets
- 1000 watts continuous output
- 2000 watts peak output (instantaneous)
- Powers an entire mobile office
Technical Specifications
| Technical Information | |
| Receptacles | 4 x NEMA 5-15R |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 6 lb (2721.55 g) |
| Height | 4.25" (107.95 mm) |
| Width | 6" (152.40 mm) |
| Depth | 13" (330.20 mm) |
| Product Color | Gray |
| Color Family | Gray |
| Power Description | |
| Input Voltage | 12 V DC |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Maximum Frequency | 60 Hz |
| Peak Power Load | 2 kW |
| Continuous Power Load | 1 kW |
| General Information | |
| Product Type | Power Inverter |
| Manufacturer Part Number | PV1000HF |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PV1000HF |
| Product Name | PowerVerter PV1000HF DC-to-AC Power Inverter |
| Product Line | PowerVerter |
| Brand Name | Tripp Lite by Eaton |
