About the product

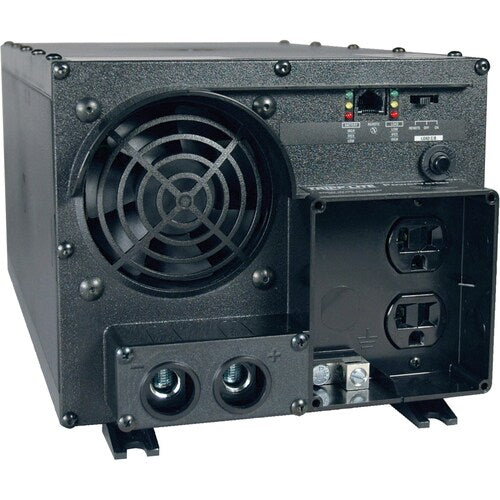

Continuously supplies up to 2400W of 120V AC power to 2 AC outlets from any 24V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs.
- Designed for heavy duty and motor loads
- 24V DC input; 120V AC output; 2 outlets
- 2400W continuous output
- Peak surge output: OverPower (up to 1 hour)—3600W; Double-Boost (up to 10 seconds)—4800W
- High-efficiency power conversion
- Automatic overload protection
Technical Specifications
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Technical Information | |
| Receptacles | 2 x NEMA 5-15/20R |
| Plug/Connector Type | Hardwired |
| Physical Characteristics | |
| Weight (Approximate) | 40.20 lb (18234.41 g) |
| Height | 7.30" (185.42 mm) |
| Width | 8.50" (215.90 mm) |
| Product Color | Black |
| Color Family | Black |
| Power Description | |
| Input Voltage | 24 V DC |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Input Voltage Range | 20 V DC - 30 V DC |
| Maximum Frequency | 60 Hz |
| Peak Power Load | 4.80 kW |
| Continuous Power Load | 2.40 kW |
| General Information | |
| Product Type | Power Inverter |
| Manufacturer Part Number | PV2400FC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | PV2400FC |
| Product Name | PowerVerter Plus PV2400FC 2400W Power Inverter |
| Product Line | PowerVerter |
| Product Series | Plus |
| Brand Name | Tripp Lite by Eaton |
