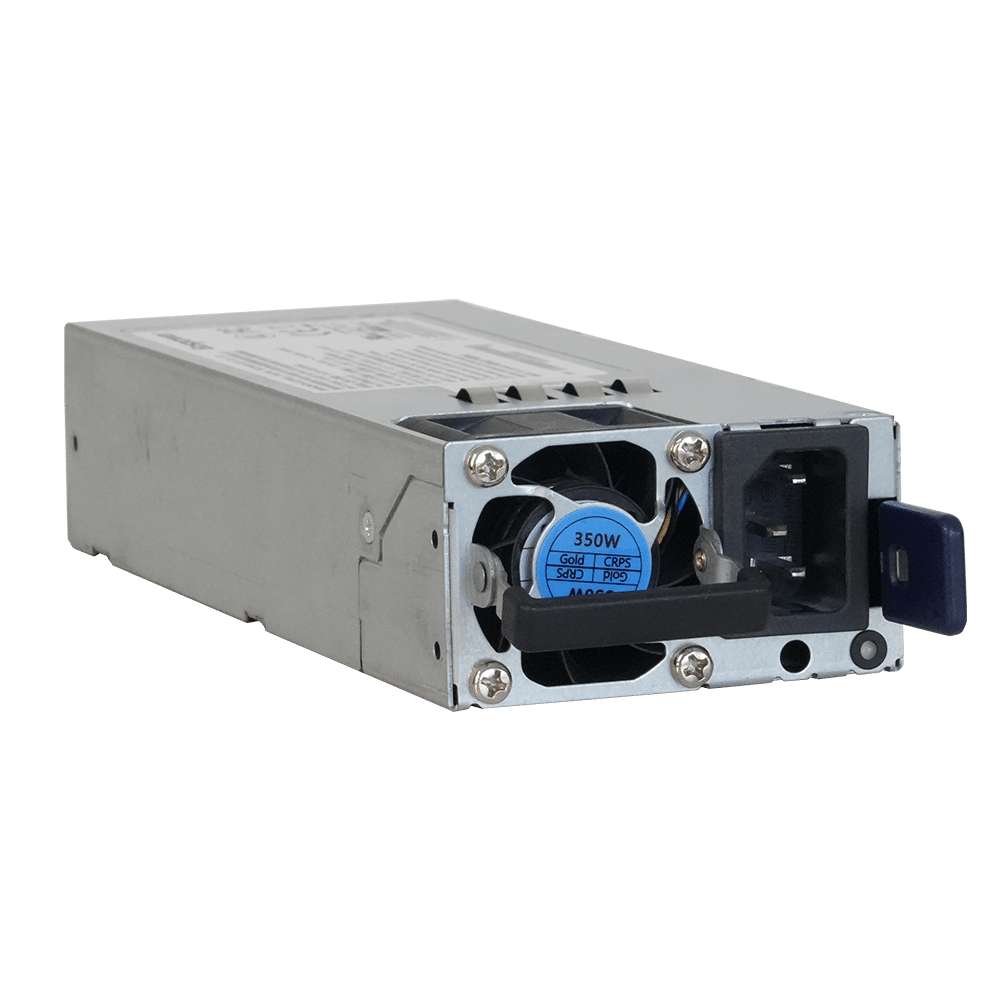

About the product
The Uniview Second Slot Internal Redundant Power Supply Module works with Uniview NVR816-64/128 NVRs to provide a redundant, backup internal power supply in the event of a power outage. Ideal for security setups with an emergency backup power source, the internal redundant power supply switches to the backup circuit automatically, preventing lost or corrupted data during a power outage-- especially for 24/7 recording systems and critical security installs.
Automatically protects against under/overvoltage conditions as well as over-temperature conditions. Designed for Uniview NVR816-64 and NVR816-128 systems with an empty slot.
PWR-DC12-350A-IN Specs and Features
- Voltage: 90 - 264 VAC
- Frequency: 47 - 63Hz
- Power Factor: ?0.95
- Input Current: ?6.3A@100-240VAC
- Input Protection: Input undervoltage, Input overvoltage
- Voltage/Current: +12VDC/29A, +12VStandby/2.1A
- Output Power: 350W
- Output Efficiency: ?89%, 220V AC/29A
- Line Regulation: ±5%
- Load Regulation: ±5%
- Regulated Voltage Accuracy: ±5%
- Dynamic Response Overshoot: ±5%
- Current Sharing Rate: ±5%
- Output Protection: Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection
- Indicator light Normal: green on, Abnormal: Yellow on
- Working Temperature: 0~50°C
- Storage Temperature: -40~70°C
- Working Humidity: 10%~90%
- Heat dissipation: Ventilating fan design, heat emission at back
- Dimension (D × H × W): 185mm×40mm×73.5mm
- EMC standards: EN55032, EN 61000-3-2, EN55035
- NEBS standards: SR-332 ISSUE 2
- Approved standards: CB, FCC, UL
Technical Specifications
The Uniview Second Slot Internal Redundant Power Supply Module works with Uniview NVR816-64/128 NVRs to provide a redundant, backup internal power supply in the event of a power outage. Ideal for security setups with an emergency backup power source, the internal redundant power supply switches to the backup circuit automatically, preventing lost or corrupted data during a power outage-- especially for 24/7 recording systems and critical security installs.
Automatically protects against under/overvoltage conditions as well as over-temperature conditions. Designed for Uniview NVR816-64 and NVR816-128 systems with an empty slot.
PWR-DC12-350A-IN Specs and Features
- Voltage: 90 - 264 VAC
- Frequency: 47 - 63Hz
- Power Factor: ?0.95
- Input Current: ?6.3A@100-240VAC
- Input Protection: Input undervoltage, Input overvoltage
- Voltage/Current: +12VDC/29A, +12VStandby/2.1A
- Output Power: 350W
- Output Efficiency: ?89%, 220V AC/29A
- Line Regulation: ±5%
- Load Regulation: ±5%
- Regulated Voltage Accuracy: ±5%
- Dynamic Response Overshoot: ±5%
- Current Sharing Rate: ±5%
- Output Protection: Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection
- Indicator light Normal: green on, Abnormal: Yellow on
- Working Temperature: 0~50°C
- Storage Temperature: -40~70°C
- Working Humidity: 10%~90%
- Heat dissipation: Ventilating fan design, heat emission at back
- Dimension (D × H × W): 185mm×40mm×73.5mm
- EMC standards: EN55032, EN 61000-3-2, EN55035
- NEBS standards: SR-332 ISSUE 2
- Approved standards: CB, FCC, UL
