About the product

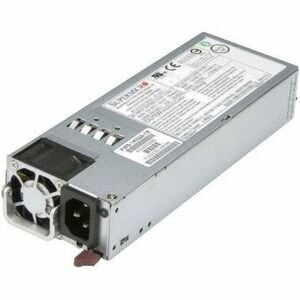

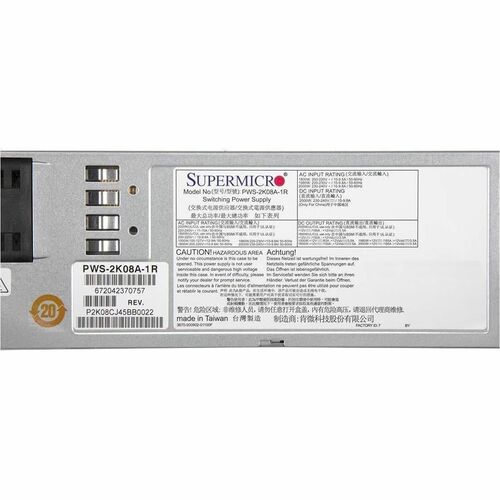

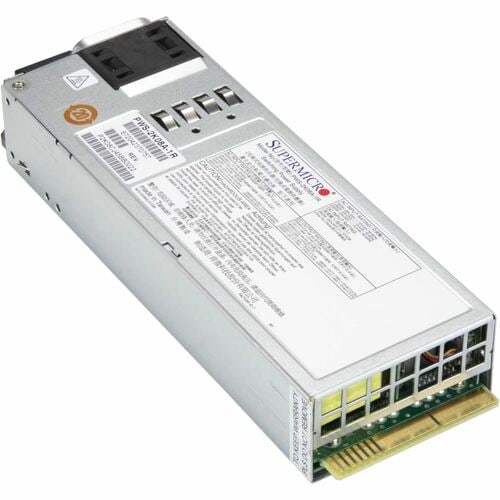

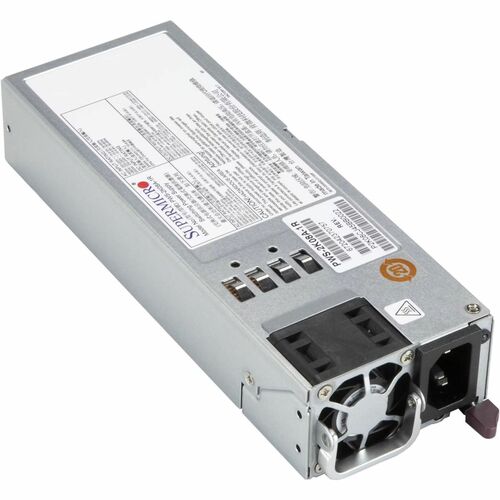

The Supermicro PWS-2K08A-1R an 80 Plus Titanium power supply capable of supplying 2000W output power greater than 96% efficiency. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
Technical Specifications
| Technical Information | |
| Efficiency | 96% |
| Miscellaneous | |
| Compatibility | Supermicro PC/Server |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | 80 Plus Titanium |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Redundant Power Supply |
| Manufacturer Part Number | PWS2K08A1R |
| Manufacturer Website Address | http://www.supermicro.com |
| Packaged Quantity | 1 |
| Manufacturer | Supermicro Computer, Inc |
| Product Name | 1U 2000W Redundant Power Supply (PWS-2K08A-1R) |
| Brand Name | Supermicro |
| Physical Characteristics | |
| Form Factor | Hot-swappable |
| Plug-in Module | |
| 1U | |
| Hot-pluggable | |
| Height | 7.99" (203 mm) |
| Width | 2.89" (73.50 mm) |
| Depth | 1.57" (40 mm) |
| Power Description | |
| Output Power | 2 kW |
| Output Voltage | 12 V DC |
| Output Current | 3.50 A |
| 166 A | |
| 165 A | |
| 150 A | |
| 83 A | |
| Number of +12V Rails | 6 |
| Output Voltage Detail | 12 V DC @ 83 A |
| 12 V DC @ 3.5 A | |
| 12 V DC @ 166 A | |
| 12 V DC @ 150 A | |
| 12 V DC @ 165 A |
