500W POWER SUPPLY PS2 ATX MULTI-OUTPUT HI-EFFECIENCY
Product information summary

About the product

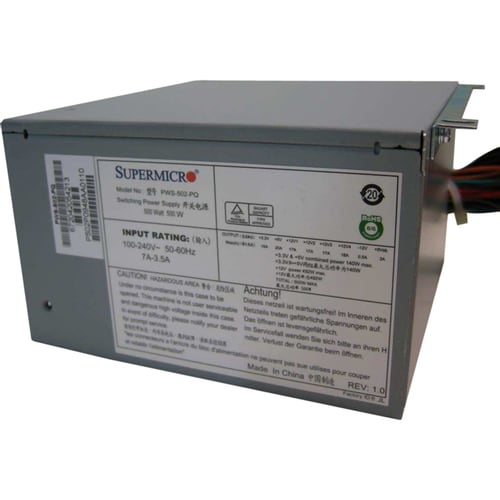

The Supermicro PWS-502-PQ is an 80 Plus Bronze level power supply capable of continuously supplying 500W output power at 86% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a super quiet 12cm fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your desktop or workstation but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 200,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. All materials contained comply with RoHS requirements and are certified by Supermicro.
Technical Specifications
Miscellaneous | |
Compatibility | Mid-Tower Case |
Environmentally Friendly | Yes |
Energy Efficiency Certification | 80 Plus Bronze |
Interfaces/Ports | |
Receptacles | 1 x 24-pin ATX Motherboard |
1 x 8-pin EPS12V Motherboard | |
1 x 4-pin ATX12V Motherboard | |
Plug/Connector | IEC 60320 C14 |
Technical Information | |
Efficiency | 85.8% |
Number of Fans | 1 |
Power Factor Correction (PFC) | Active |
Specification Compliance | ATX12V/EPS12V |
Physical Characteristics | |
Weight (Approximate) | 2.20 kg |
Form Factor | Internal |
Height | 3.39" (86 mm) |
Width | 5.91" (150 mm) |
Depth | 5.51" (140 mm) |
General Information | |
Product Type | Power Supply |
Manufacturer Part Number | PWS502PQ |
Manufacturer Website Address | http://www.supermicro.com |
Manufacturer | Supermicro Computer, Inc |
Product Model | PWS-502-PQ |
Product Name | PWS-502-PQ ATX12V & EPS12V Power Supply |
Brand Name | Supermicro |
Power Description | |
Input Voltage | 110 V AC |
220 V AC | |
Output Power | 500 W |
Output Voltage | 3 V DC |
12 V DC | |
5 V DC | |
Input Current | 3.5 A @ 220V |
7 A @ 110V | |
Output Current | 15 A |
16 A | |
18 A | |
20 A | |
3 A | |
Input Voltage Range | 100 V AC - 240 V AC |
Number of +12V Rails | 4 |
Input Voltage Type | AC |
