About the product

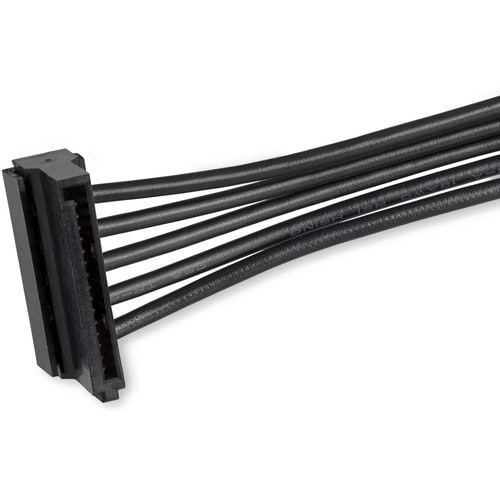

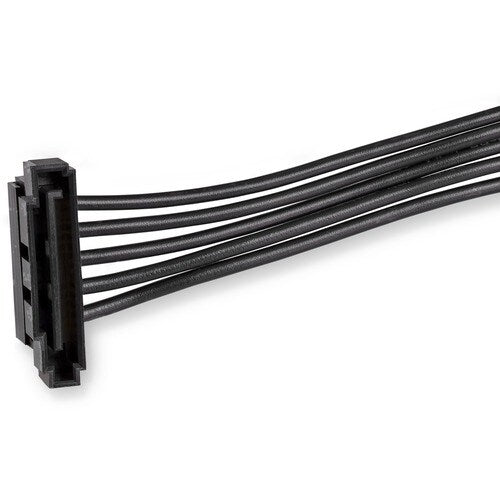

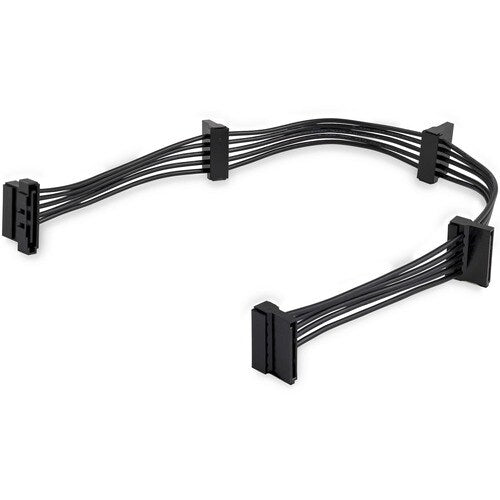

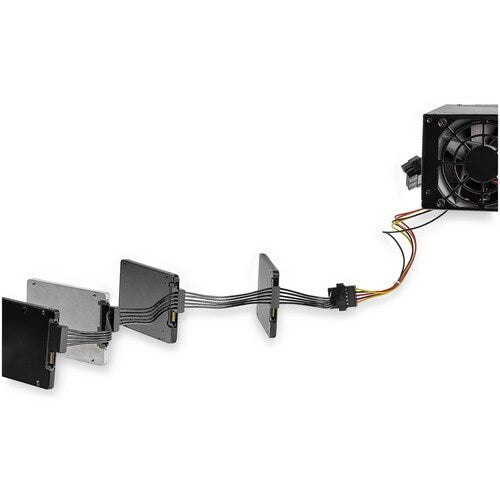

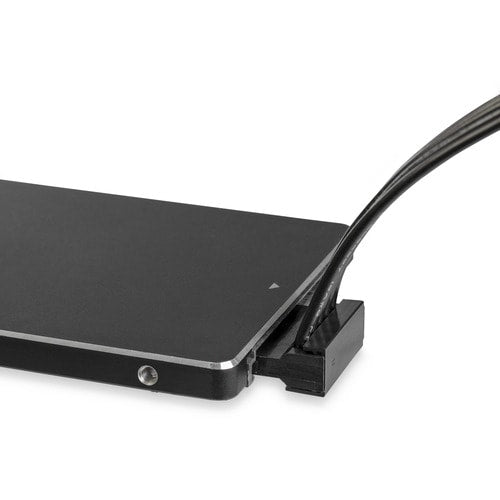

The PYO4SATA SATA power splitter cable (1-to-4) features a SATA male power connector that connects to a single computer power supply SATA connector, and breaks out into four SATA female power connectors. The SATA power splitter cable overcomes the limit of the number of SATA devices, such as SSD drives or SATA optical drives that can be installed in the system

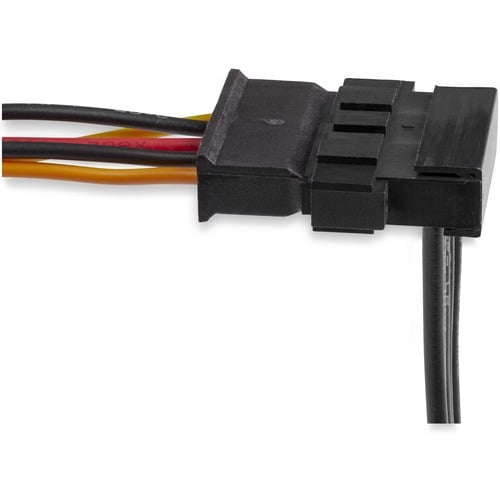

based on available PSU power connections. The cable eliminates the cost of having to upgrade the power supply to accommodate additional SATA drives. More from the Manufacturer1x SATA Power Plug to 4x SATA Power ReceptacleDurable construction
Technical Specifications
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 1.16 oz (33 g) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Data Transfer Cable |
| Manufacturer Part Number | PYO4SATA |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | 4x SATA Power Splitter Adapter Cable |
| Brand Name | StarTech.com |
| Technical Information | |
| Cable Length | 1.3 ft (0.40 m) |
| Conductor | Copper |
| Device Supported | Optical Drive |
| Computer | |
| Power Supply | |
| Hard Drive | |
| Cable Characteristic | Splitter Cable |
| Cable Type | SATA |
| Connector Type on First End | SATA - Male |
| Connector Type on Second End | SATA - Female |
| American Wire Gauge | 18 AWG |
| Connector on First End Details | 1 x 15-pin SATA - Male |
| Connector on Second End Details | 4 x 15-pin SATA - Female |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
Product compare
Product warranty
Standard manufacturer warranty as applicable
Return policy
15 days return in original condition.
Price guarantee
!00% we are always lower than market price.
