About the product

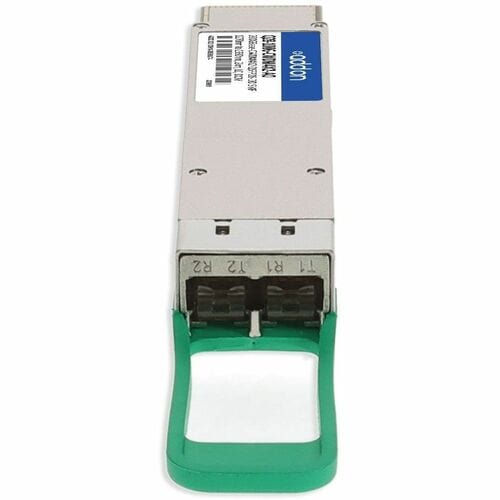

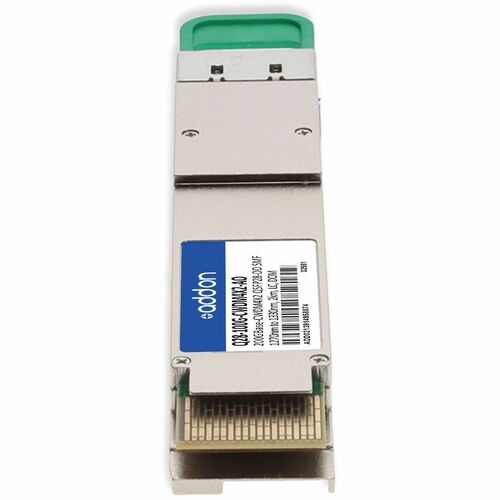

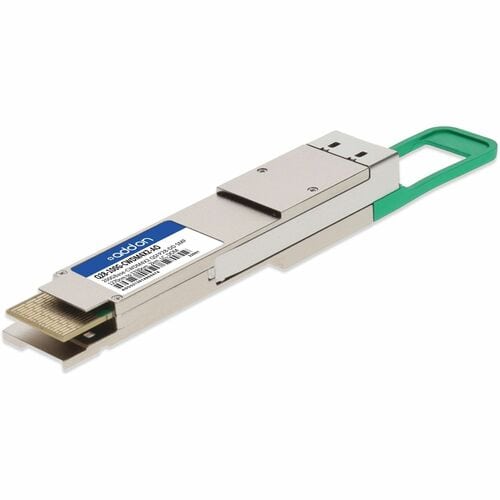

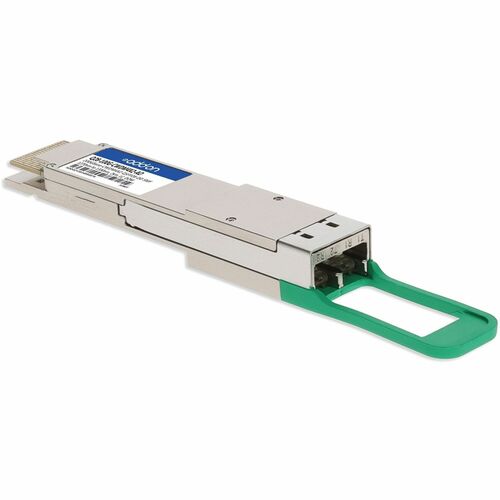

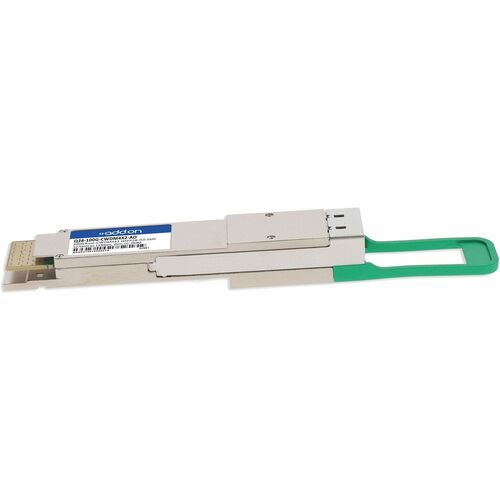

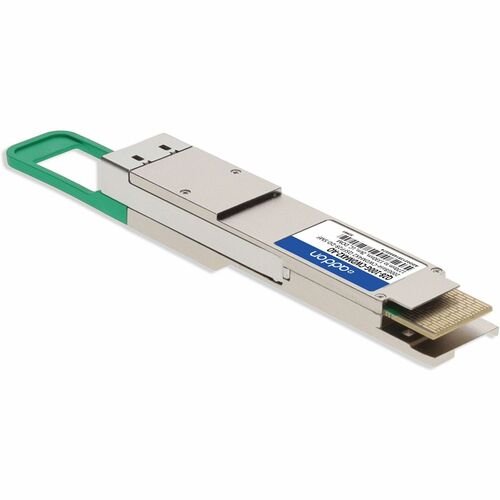

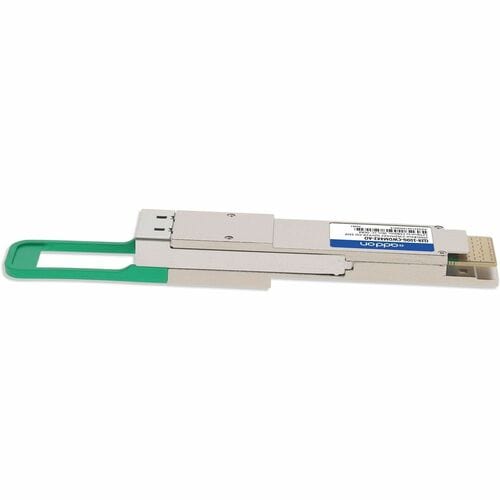

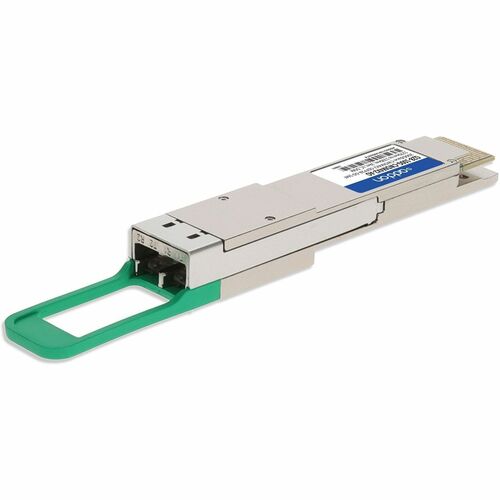

This MSA compliant QSFP28-DD transceiver provides 2x100GBase-CWDM4 throughput up to 2km over single-mode fiber (SMF) using wavelengths between 1270nm to 1330nm via a CS connector. It can operate at temperatures between 0 and 70C. All of our transceivers are built to comply with Multi-Source Agreement (MSA) standards and are uniquely serialized and tested for data-traffic and application to ensure seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- 200Gigabit Ethernet - Eases both bandwidth and management constraints
- With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
- With 100GBase-CWDM4 technology, get up to 100Gbps data transfer rate using coarse wavelength-division multiplexing with 4 lanes
Technical Specifications
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 158°F (70°C) |
| Interfaces/Ports | |
| Interfaces/Ports Details | 2 x CS 100GBase-CWDM4 Network |
| Connector Type | CS |
| Total Number of Ports | 2 |
| Technical Information | |
| Application/Usage | Optical Network |
| Data Networking | |
| Features | Digital Optical Monitoring (DOM) |
| Miscellaneous | |
| Compatibility | MSA Compliant |
| Country of Origin | United States/United Kingdom |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Media & Performance | |
| Maximum Distance Supported | 2 km |
| Network Technology | 100GBase-CWDM4 |
| Maximum Data Transfer Rate | 195.31 Gbit/s |
| Ethernet Technology | 200 Gigabit Ethernet |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| General Information | |
| Product Type | QSFP28-DD |
| Manufacturer Part Number | Q28-100G-CWDM4X2-AO |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Packaged Quantity | 1 |
| Manufacturer | AddOn |
| Product Name | MSA and TAA 2x100GBase-CWDM4 QSFP28-DD Transceiver (SMF, 1270nm to 1330nm, 2km, CS, DOM) |
| Brand Name | AddOn |
