32X400G 1U AC AIRFLOW IN

The QFX5130 Switch offers a high-density, cost-optimized 1 U 400GbE fixed-configuration platform ideal for data centers where cloud services are being added. These services require higher network bandwidth per rack, as well as flexibility, making the 10/25/40/100/400GbE interface options ideal for server and intra-fabric connectivity. The QFX5130 is an optimal choice for spine-and-leaf deployments in enterprise, service provider, and cloud provider data centers. Coupled with the widespread adoption of overlay technologies, the QFX5130 lays a strong foundation for your evolving business and network needs, offering deployment versatility to future-proof your network investment.
Product Description

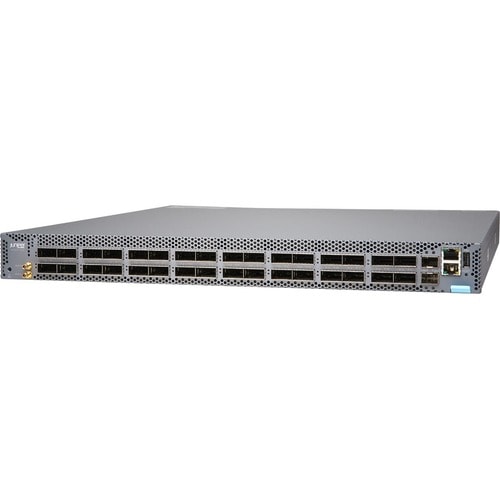

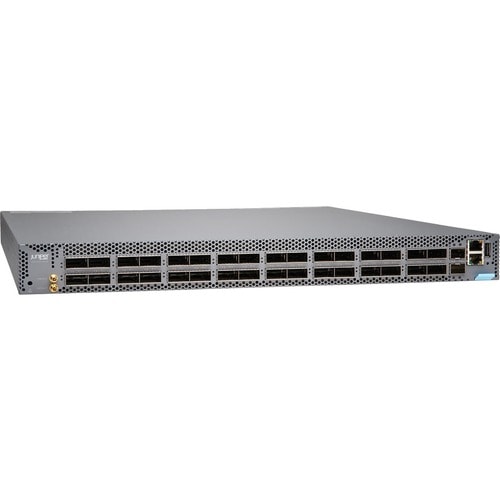

The Juniper Networks® QFX5130 Switch is a next-generation, fixed-configuration spine-and-leaf switch that offers flexible, cost-effective, high-density 400GbE, 100GbE, 50GbE, 40GbE, 25GbE, and 10GbE interfaces for server and intra-fabric connectivity.
A versatile, future-proofed solution for today's data centers, the QFX5130 leverages the power of a fully programmable chipset to support and deliver a diverse set of use cases. It supports advanced Layer 2, Layer 3, and Ethernet VPN (EVPN)- Virtual Extensible LAN (VXLAN) features. For large public cloud providers-early adopters of high-performance servers to meet explosive workload growth-the QFX5130 supports very large, dense, and fast 400GbE IP fabrics based on proven Internet scale technology. For enterprise customers seeking investment protection as they transition their server farms from 10GbE to 25GbE, the QFX5130 switch also provides a high radix-native 100GbE/400GbE EVPN-VXLAN spine option at reduced power and a smaller footprint.
The QFX5130 supports diverse use cases such as neural networks for AI applications, including autonomous driving, disaggregated storage, high frequency trading, packet brokering, and over-the-top streaming services. Delivering 25.6 Tbps of bidirectional bandwidth, the switch is optimally designed for spine-and-leaf deployments in enterprise, high-performance computing (HPC), service provider, and cloud data centers.

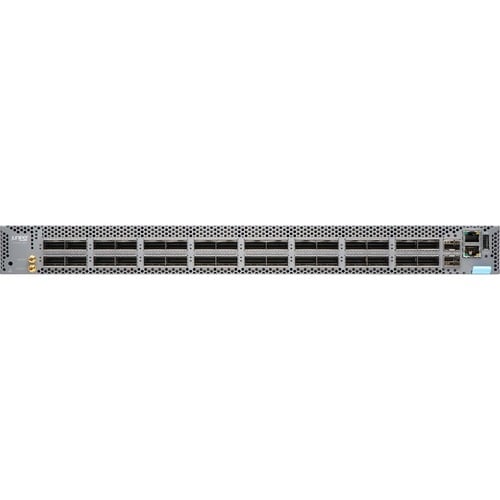

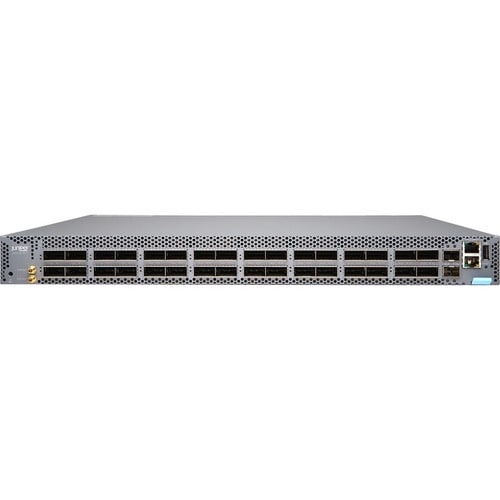

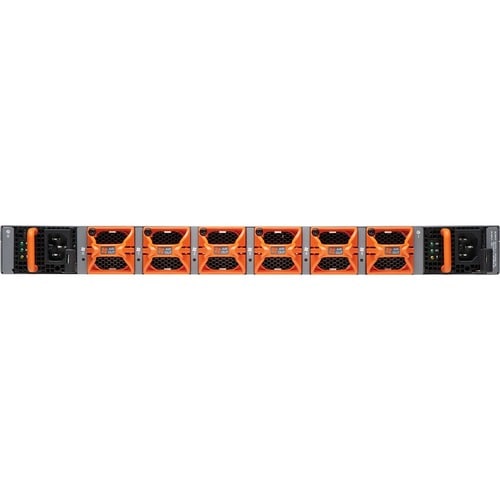

The QFX5130-32CD offers 32 ports in a low-profile 1 U form factor. High-speed interfaces support a wide variety of port configurations, including 400GbE, 100GbE, 25GbE, 40GbE, and 10GbE. The QFX5130-32CD is equipped with two AC or DC power supplies, providing 1+1 redundancy when all power supplies are present. Six hot-swappable fans offer back-to-front (AFO) or front-to-back (AFI) airflow options, providing 5+1 redundancy.
The QFX5130 includes an Intel XeonD-1500 processor to drive the control plane, which runs the Junos® OS Evolved operating system software.
Product Highlights
The QFX5130 includes the following capabilities. Please refer to the Specifications section for currently shipping features.
Native 400GbE Configuration
The QFX5130-32CD offers 32 ports in a 1 U form factor. The high-speed ports support a wide variety of configurations, including 100GbE and 40GbE.
High-Density Configurations
The QFX5130 is optimized for high-density fabric deployments, providing options for 32 ports of 400GbE, 100GbE, or 40GbE.
Flexible Connectivity Options
The QFX5130 offers a choice of interface speeds for server and intra-fabric connectivity, providing deployment versatility and investment protection.

• Rack mounting enables you to organize wires & secure cables for professional installation
• Can work as layer 3 routing for scalable network design
• Supports layer 3 switching for enhanced performance and usability
• Managed switch provides a reliable foundation for your network
• Management capability provides control over setup and configuration of your network
• Built-in power supply to ensure all components are being supplied with accurate voltage
• Quickly and easily set up a wired network with 34 networking ports
• Cascade to other network devices through the uplink port to expand your local area network
