About the product

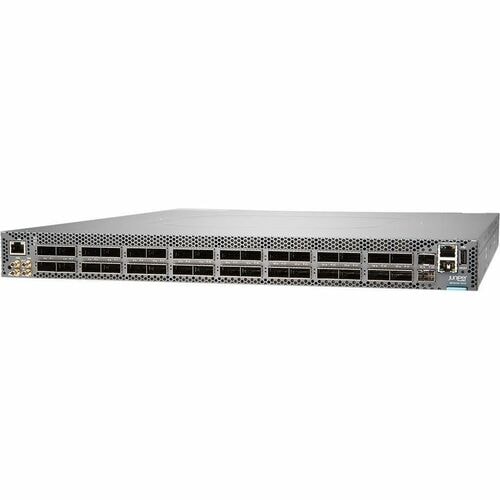

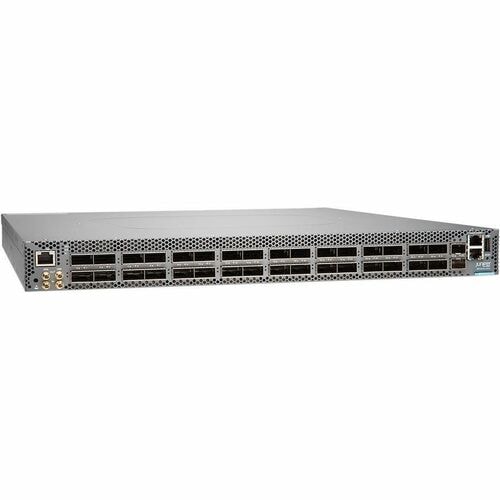

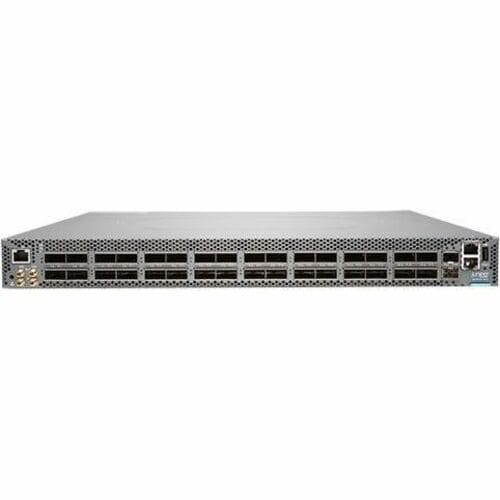

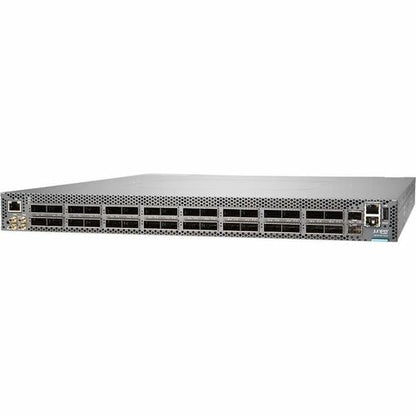

The QFX5220-32CD offers 32 ports of 400-Gigabit Ethernet in a low-profile 1-U form factor. With 12.8-Tbps bandwidth, the QFX5220-32CD is optimally designed for spine-and-leaf deployments in enterprise, service provider, and cloud data centers. The high-speed ports support a wide variety of port configurations that include speeds of 400 Gbps, 100 Gbps, 25 Gbps, 40 Gbps, and 10 Gbps.
An Intel Xeon D-1500 processor drives the QFX5220 control plane, which runs the Junos OS Evolved software. The Junos OS Evolved software image is stored on two internal 50-GB solid-state drives (SSDs).
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Can work as layer 3 routing for scalable network design
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Built-in power supply to ensure all components are being supplied with accurate voltage
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Network & Communication | |
| Layer Supported | 3 |
| Interfaces/Ports | |
| Modular | Yes |
| Port/Expansion Slot Details | 2 x 10 Gigabit Ethernet Expansion Slot |
| 32 x 400 Gigabit Ethernet Expansion Slot | |
| Power Description | |
| Power Source | Power Supply |
| Power Consumption | 958 W |
| Redundant Power Supply Supported | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP-DD |
| SFP+ | |
| Number of SFP+ Slots | 2 |
| Total Number of Expansion Slots | 34 |
| Media & Performance | |
| Network Technology | 10GBase-X |
| Ethernet Technology | 400 Gigabit Ethernet |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Miscellaneous | |
| Application/Usage | Network |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) 2 | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Physical Characteristics | |
| Weight (Approximate) | 24.49 lb (11108.477141 g) |
| Form Factor | Rack-mountable |
| Height | 1.70" (43.18 mm) |
| Width | 17.20" (436.88 mm) |
| Depth | 21.10" (535.94 mm) |
| Compatible Rack Unit | 1U |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | QFX5220-32CD-AO-T |
| Manufacturer Website Address | http://www.juniper.net |
| Manufacturer | Juniper Networks, Inc |
| Product Model | QFX5220-32CD |
| Product Name | QFX5220-32CD Ethernet Switch |
| Product Series | QFX5200 |
| Brand Name | Juniper |
