Qnap Qgd-1602P-C3758: 8 2.5Gbe Poe Ports(4 Port Ieee 803.3Bt Poe +
Qnap Qgd-1602P-C3758: 8 2.5Gbe Poe Ports(4 Port Ieee 803.3Bt Poe +
VPN:QGD-1602P-C3758-16G-US SKU:T993922 UPC:885022019885
Couldn't load pickup availability
Volume discount available - Ask for quote..
View full details



Recently Viewed
Qnap Qgd-1602P-C3758: 8 2.5Gbe Poe Ports(4 Port Ieee 803.3Bt Poe +
Product information summary

About the product

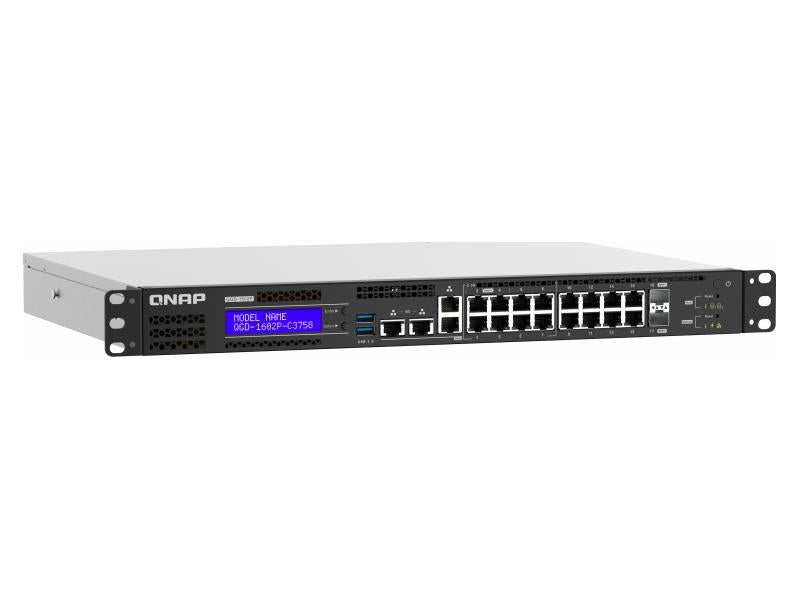

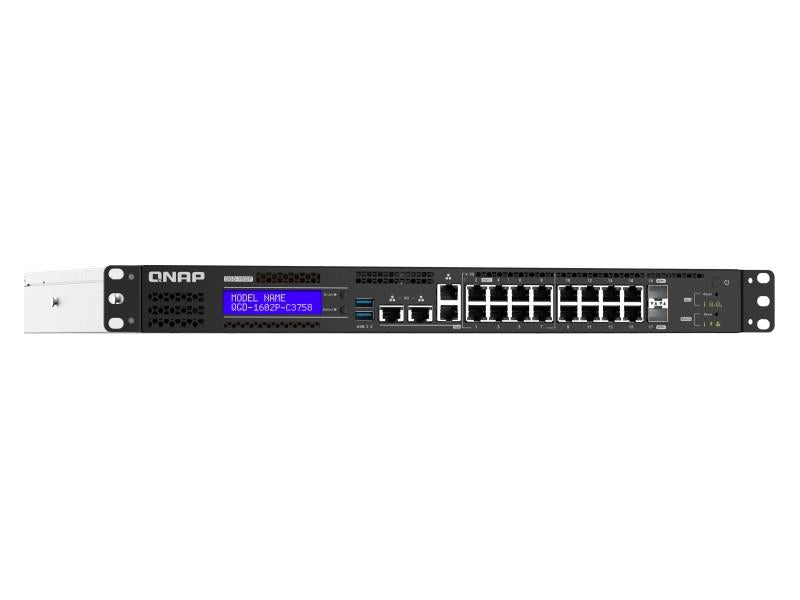

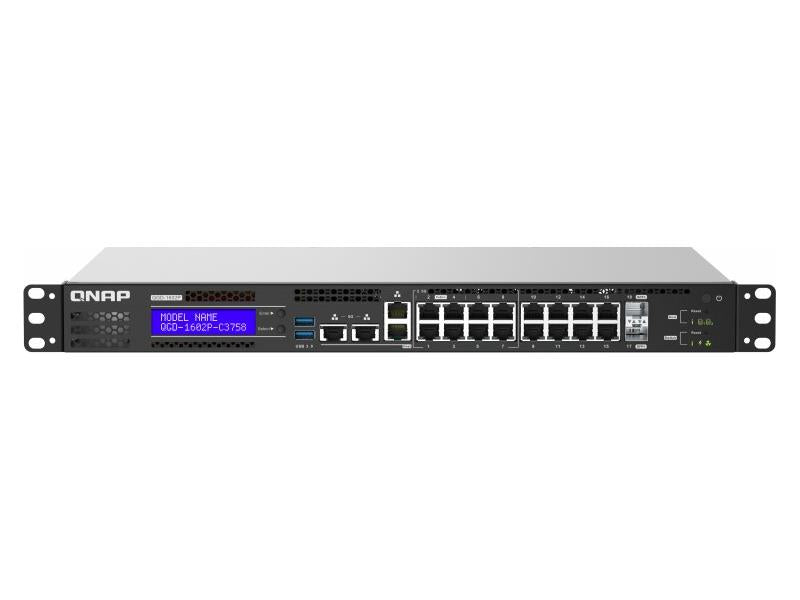

The QNAP QGD-1602P is the worlds first PoE managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP+ ports and up to 90-watt PoE output, the QGD-1602P allows you to build a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers. With a dual-CPU design, the QGD-1602P uses Intel Atom multi-core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD-1602P not only fulfills IP surveillance, network security, wireless AP management, and storage expansion applications, but also integrates QuWAN to form a SD-WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel QuickAssist Technology (Intel QAT), the QGD-1602P achieves the high-performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Technical Specifications
Primary Information | |
Storage Device Type: | Network Storage Server |
Cabinet Form Factor: | Rack-Mountable |
Processor / Manufacturer: | Intel |
Processor / Type: | Atom |
Processor / Clock Speed: | 2.2 GHz |
Processor / Number: | C3758 |
Multi-Core Technology: | Quad-Core |
RAM / Technology: | DDR4 |
RAM / Total Installed Size: | 16 GB |
RAM / Max Supported Size: | 64 GB |
Data Link Protocol: | Gigabit Ethernet |
Service & Support Type: | 2 Years Warranty |
Processor | |
Cache Memory Installed Size: | 16 MB |
RAM | |
RAM / Installed Qty: | 1 |
Storage | |
Hard Drive / Size: | 2.5 |
Hard Drive / Interface Type: | SATA 6 Gb/s; SATA 3 Gb/s |
Hard Drive / Bays Qty: | 2 |
Expansion | |
Interfaces & Connections: | 4 x RJ45 2.5GbE 802.3bt 90-watt PoE ports, 4 x RJ45 2.5GbE 802.3at 30-watt PoE ports, 8 x RJ45 Gigabit 802.3at 30-watt PoE ports, 2 x 10GbE SFP+ ports |
Power | |
Power / Voltage Required: | 100-240V |
Dimensions&Miscellaneous | |
Width: | 435.2 Mm |
Depth: | 327.7 Mm |
Height: | 44.2 Mm |
