About the product
High-performance 1.76Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments.
Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6.
High availability with industry-leading VSX redundancy and redundant power supplies and fans.
Aruba AOS-CX automation and programmability using built-in REST APIs and Python scripts with intelligent monitoring and visibility delivered by the Aruba Network Analytics Engine.
Modular Cloud-Native Architecture
HPE Aruba Networking CX 8100 Switch Series features AOS-CX which simplify the complexities of managing data center networks with automation options to match your IT organization's operating model.
Proactively detect issues and speed troubleshooting with actionable insights provided by an analytics engine embedded in every switch. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services.
Continual state synchronization provides superior fault tolerance and high availability. Always-on infrastructure designed for resiliency and upgrades with zero downtime.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Rack mounting enables you to organize wires & secure cables for professional installation
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Cascade to other network devices through the uplink port to expand your local area network
Technical Specifications
| Management & Protocols | |
| Manageable | Yes |
| Technical Information | |
| High Availability Supported | Yes |
| I/O Expansions | |
| Expansion Slot Type | QSFP |
| SFP+ | |
| QSFP28 | |
| SFP | |
| Total Number of Expansion Slots | 8 |
| Miscellaneous | |
| Application/Usage | Campus |
| Data Center | |
| IoT Devices | |
| Network | |
| Package Contents |
|
| Physical Characteristics | |
| Form Factor | Compact |
| Rack-mountable | |
| Compatible Rack Unit | 1U |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Layer 3 Switch |
| Manufacturer Part Number | R9W89AB2B |
| Manufacturer Website Address | http://www.hpe.com |
| Manufacturer | Hewlett Packard Enterprise |

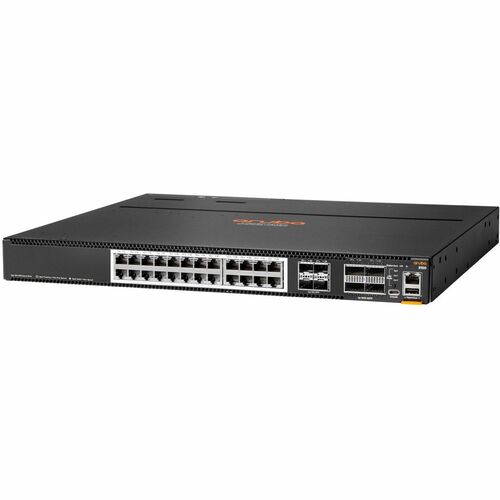

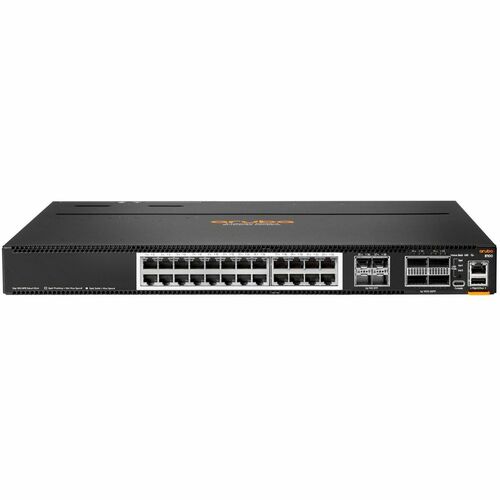

| Product Name | CX 8100 24x10G Base-T 4x10G SFP+ 4x40/100G QSFP28 BF 3Fan 2AC PSU Sw Bdl |
| Product Series | CX 8100 |
| Brand Name | Aruba |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 400 W |

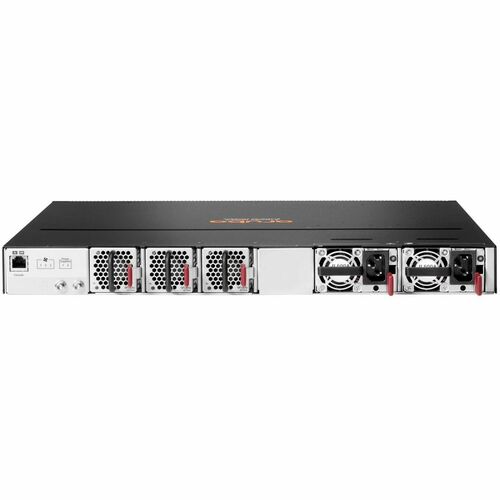

| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Number of Network Ports | 24 |
| Port/Expansion Slot Details | 1 x RJ-45 Serial Port |
| 1 x RJ-45 Ethernet Port | |
| 4 x 40/100 Gigabit Ethernet QSFP28 Expansion Slot | |
| 4 x 1/10 Gigabit Ethernet SFP+ Expansion Slot | |
| 1 x USB-C Console Port | |
| 1 x USB-Type A Port | |
| 24 x /1/2.5/5/10BASE-T Gigabit Ethernet RJ-45 Network Port | |
| Media & Performance | |
| Network Technology | 40GBase-X |
| 5GBase-T | |
| 2.5GBase-T | |
| 10GBase-X | |
| 10GBase-T | |
| 100GBase-X | |
| 1000Base-X | |
| 1000Base-T | |
| Maximum Data Transfer Rate | 12.50 GB/s |
| Ethernet Technology | Gigabit Ethernet |
| 5 Gigabit Ethernet | |
| 40 Gigabit Ethernet | |
| 2.5 Gigabit Ethernet | |
| 100 Gigabit Ethernet | |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.3by |
| IEEE 802.3x | |
| IEEE 802.3z | |
| IEEE 802.1ab | |
| IEEE 802.1ak | |
| IEEE 802.1AX | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.1t | |
| IEEE 802.1v | |
| IEEE 802.1w | |
| IEEE 802.3ab | |
| IEEE 802.3ad | |
| IEEE 802.3ae | |
| IEEE 802.3an | |
| IEEE 802.3ba |
