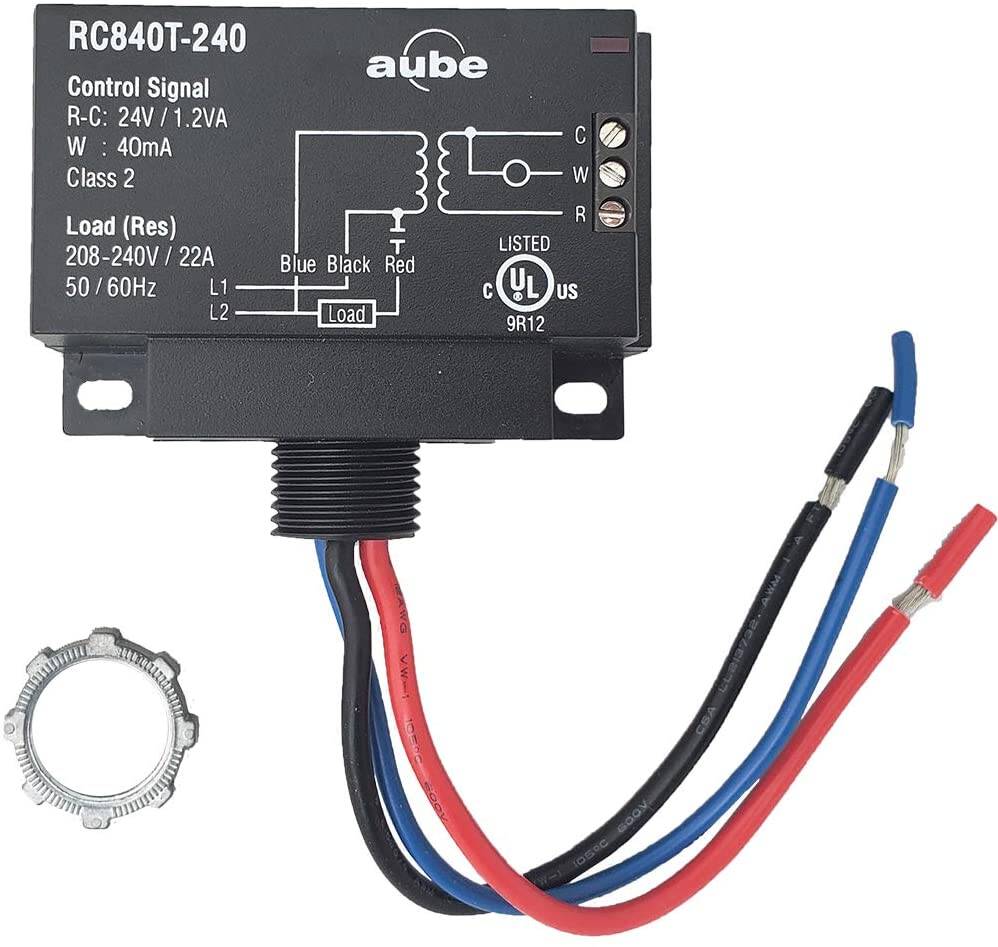

About the product
The Aube RC840T-240 is commonly used to control baseboard heaters or other 240V line voltage loads from a low voltage thermostat. This allows you to adapt your favourite WiFi, ZWave, Zigbee or standard thermostat to control your baseboard heat.
The built in transformer provides a 24VAC output that can power the thermostat so you don't need an external thermostat power supply.
This is a high voltage product and should only be installed by a certified professional.
Is has a built-in 24V transformer and the load side is rated at 4575W @208V or 5280W @ 240V. Relay is epoxy soundproofed for quiet operation.
Honeywell Aube RC840T-240 Features:
- Can be used to switch baseboard heaters and other 240V loads
- Built in 24VAC transformer can provide power to a low voltage thermostat
- Often used to adapt ZWave, WiFi or standard low voltage thermostats to control baseboard heaters.
- Control signal 24VAC 40mA or 24VDC 35mA
- Terminal Wire 12AWG
- 2640W @ 120V 22A resistive 0.8HP inductive
- 4575W @ 208V 22A resistive 1.0 HP inductive
- 5280W @ 240V 22A resistive 1.5HP inductive
- 5260W @ 277V 19A resistive
- 6245W @ 347V 18A resistive
- Dimensions 68Hx85Wx36D mm
- 60 Hz Only
- cULus approved
Technical Specifications
The Aube RC840T-240 is commonly used to control baseboard heaters or other 240V line voltage loads from a low voltage thermostat. This allows you to adapt your favourite WiFi, ZWave, Zigbee or standard thermostat to control your baseboard heat.
The built in transformer provides a 24VAC output that can power the thermostat so you don't need an external thermostat power supply.
This is a high voltage product and should only be installed by a certified professional.
Is has a built-in 24V transformer and the load side is rated at 4575W @208V or 5280W @ 240V. Relay is epoxy soundproofed for quiet operation.
Honeywell Aube RC840T-240 Features:
- Can be used to switch baseboard heaters and other 240V loads
- Built in 24VAC transformer can provide power to a low voltage thermostat
- Often used to adapt ZWave, WiFi or standard low voltage thermostats to control baseboard heaters.
- Control signal 24VAC 40mA or 24VDC 35mA
- Terminal Wire 12AWG
- 2640W @ 120V 22A resistive 0.8HP inductive
- 4575W @ 208V 22A resistive 1.0 HP inductive
- 5280W @ 240V 22A resistive 1.5HP inductive
- 5260W @ 277V 19A resistive
- 6245W @ 347V 18A resistive
- Dimensions 68Hx85Wx36D mm
- 60 Hz Only
- cULus approved
