About the product

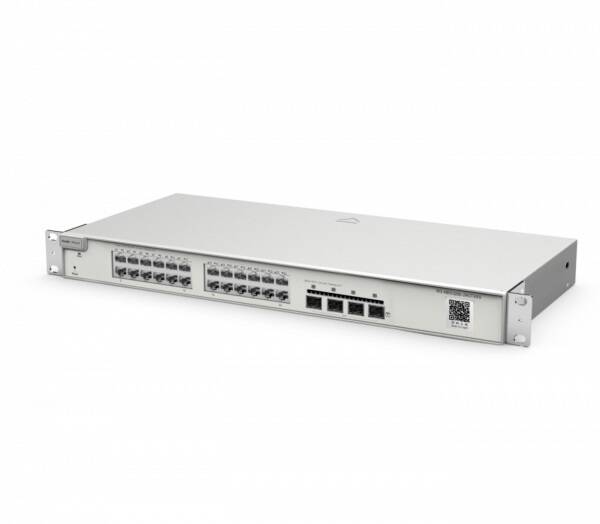

The Reyee Enterprise-Grade 24-Port Gigabit Layer 2 Cloud-Managed Switch simplifies network management while maintaining the high-powered performance required for industrial and high-traffic commercial installs.
Enterprise-class performance and multiple security policies make it easy for IT professionals and network admins to remotely monitor, organize and secure large-scale networks from virtually anywhere through the Ruijie cloud! Convenient tabletop or rack mounting options simplify deployment and optimize networks in new builds or scalable installs.
Equipped with 24x gigabit ethernet ports and 4 SFP+ ports for fibre optic modules or copper connections with a massive 128 Gbps switching capacity and 95.24 Mpps forwarding rate. Features like link aggregation vastly increase available bandwidth and provide essential network redundancy, while IGMP snooping, loop guard and storm control prevent unauthorized access and keep your connected hardware safe from damage. Layer 2 technology improves and optimizes the processing speed of blockchain networks, making it an ideal solution for secure data transmission from node-to-node across a physical LAN.
Self-organizing network features and auto camera detection automatically optimize and recognize networked cameras, ensuring 24/7 uptime and automatic addressing without needing dedicated operators. Ideal for multi-camera installs and mixed networking solutions.
RG-NBS3200-24GT4XS Specs and Features
- Ports: 24 x 10/100/1000Base-T ports, 4 SFP+ uplink
- Layer type: Layer 2
- Switching capacity: 128 Gbps
- Forwarding rate: 95.24 Mpps
- MAC address table: 16000
- Maximum VLAN: 4094
- Jumbo Frame (MTU): 9216
- Link Aggregation Group (LAG): 16
- ACL: 1900
- STP/RSTP: Supported
- Auto Errdisable Recovery: Supported
- Voice VLAN: Supported
- LLDP/LLDP-MED: Supported
- IGMP Snooping v1/v2: Supported
- CPP: Supported
- EEE: Supported
- Syslog: Supported
- HTTP/HTTPS: Supported
- Cloud Management: Via Ruijie Cloud
- SON (Self-Organizing Network) with IP: Supported
- Camera Recognition: Supported
- Power supply: Fixed, 100 - 240V AC, 1.5A
- Fan Airflow: Left-to-Rear
- Port surge: 6 kV
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Dimensions (W x D x H): 260 mm x 120 mm x 43.6 mm
- Weight (With package): 1.2 kg
- MTBF: > 200,000
- Warranty: 5 Year Manufacturer's Warranty
- Certificate: CE, RoHS
Technical Specifications
The Reyee Enterprise-Grade 24-Port Gigabit Layer 2 Cloud-Managed Switch simplifies network management while maintaining the high-powered performance required for industrial and high-traffic commercial installs.
Enterprise-class performance and multiple security policies make it easy for IT professionals and network admins to remotely monitor, organize and secure large-scale networks from virtually anywhere through the Ruijie cloud! Convenient tabletop or rack mounting options simplify deployment and optimize networks in new builds or scalable installs.
Equipped with 24x gigabit ethernet ports and 4 SFP+ ports for fibre optic modules or copper connections with a massive 128 Gbps switching capacity and 95.24 Mpps forwarding rate. Features like link aggregation vastly increase available bandwidth and provide essential network redundancy, while IGMP snooping, loop guard and storm control prevent unauthorized access and keep your connected hardware safe from damage. Layer 2 technology improves and optimizes the processing speed of blockchain networks, making it an ideal solution for secure data transmission from node-to-node across a physical LAN.
Self-organizing network features and auto camera detection automatically optimize and recognize networked cameras, ensuring 24/7 uptime and automatic addressing without needing dedicated operators. Ideal for multi-camera installs and mixed networking solutions.
RG-NBS3200-24GT4XS Specs and Features
- Ports: 24 x 10/100/1000Base-T ports, 4 SFP+ uplink
- Layer type: Layer 2
- Switching capacity: 128 Gbps
- Forwarding rate: 95.24 Mpps
- MAC address table: 16000
- Maximum VLAN: 4094
- Jumbo Frame (MTU): 9216
- Link Aggregation Group (LAG): 16
- ACL: 1900
- STP/RSTP: Supported
- Auto Errdisable Recovery: Supported
- Voice VLAN: Supported
- LLDP/LLDP-MED: Supported
- IGMP Snooping v1/v2: Supported
- CPP: Supported
- EEE: Supported
- Syslog: Supported
- HTTP/HTTPS: Supported
- Cloud Management: Via Ruijie Cloud
- SON (Self-Organizing Network) with IP: Supported
- Camera Recognition: Supported
- Power supply: Fixed, 100 - 240V AC, 1.5A
- Fan Airflow: Left-to-Rear
- Port surge: 6 kV
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Dimensions (W x D x H): 260 mm x 120 mm x 43.6 mm
- Weight (With package): 1.2 kg
- MTBF: > 200,000
- Warranty: 5 Year Manufacturer's Warranty
- Certificate: CE, RoHS
