About the product

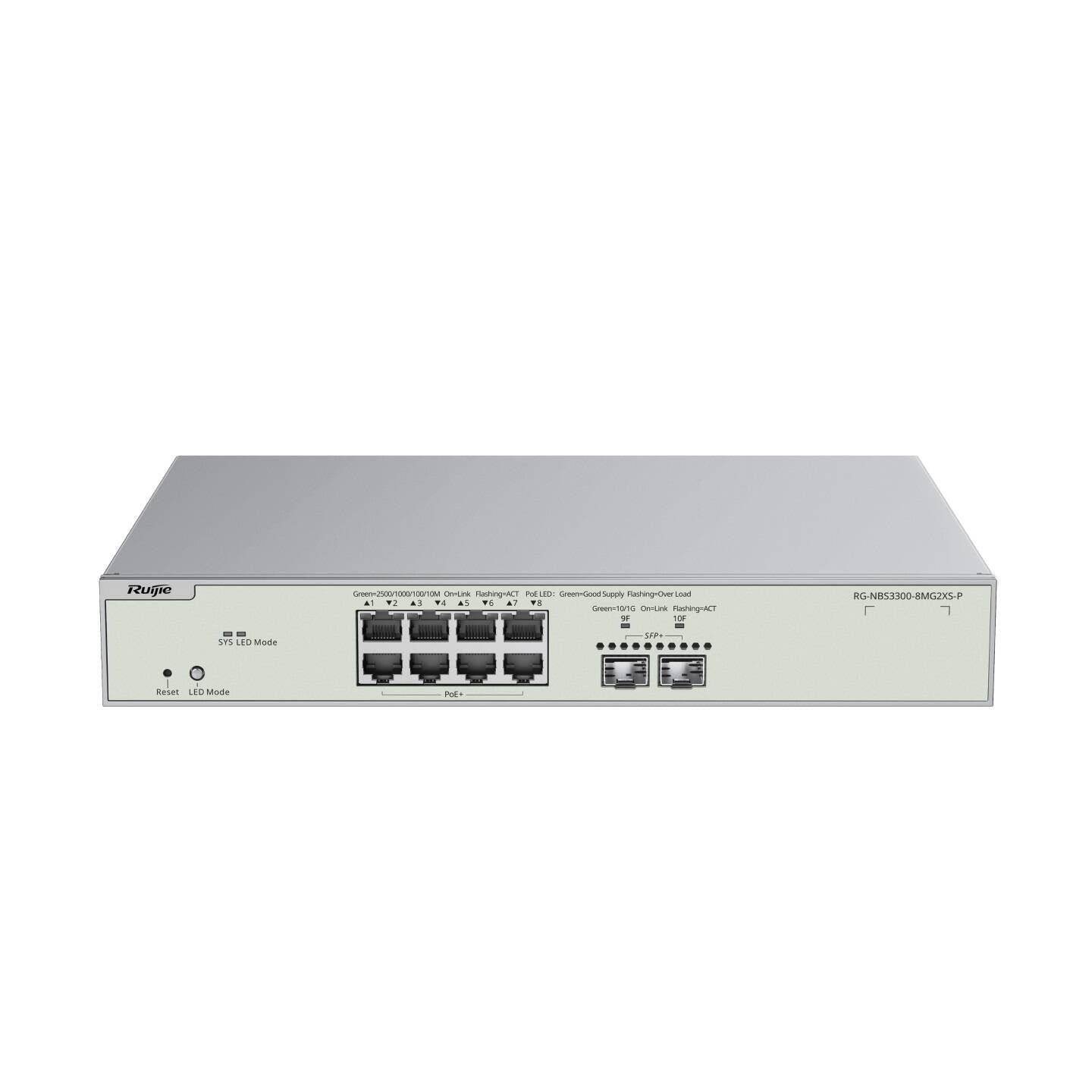

The Reyee Enterprise Grade 8-Port Gigabit Layer 2 Cloud-Managed Switch simplifies network management for network admins while maintaining Enterprise-class high performance required for industrial and high-traffic commercial installs.
Equipped with 8x gigabit ethernet ports and 2 SFP+ ports for fibre optic modules or copper connections with a substantial 80 Gbps switching capacity and 58.72 Mpps forwarding rate. Features like link aggregation vastly increase available bandwidth and provide essential network redundancy, while IGMP snooping prevents unauthorized access to your connected hardware. Layer 2 technology improves and optimizes the processing speed of blockchain networks, making it an ideal solution for secure data from node-to-node transmission across a physical LAN.
Enterprise-class performance and multiple security policies make it easy for IT professionals and network admins to remotely monitor, organize and secure large-scale networks from anywhere! Convenient tabletop or rack mounting options make it easy to deploy and optimize networks in new builds or infrastructure refreshes.
RG-NBS3300-8MG2XS-P Specs and Features
- Ports: 8 x 10/100/1000Base-T ports, 2 SFP+ uplink
- Layer type: Layer 2
- Switching capacity: 80 Gbps
- Forwarding rate: 58.72 Mpps
- MAC address table: 16000
- Maximum VLAN: 4094
- Jumbo Frame (MTU): 9216
- Link Aggregation Group (LAG): 16
- ACL: 1900
- IGMP Snooping v1/v2: Supported
- CPP: Supported
- EEE: Supported
- HTTP/HTTPS: Supported
- Cloud Management: Via Ruijie Cloud
- SON (Self-Organizing Network) with IP: Supported
- Camera Recognition: Supported
- Power supply:
- Rated voltage range: 100–240 V
- Maximum voltage range: 90–264 V
- Frequency: 50/60 Hz
- Rated current: 4.5 A
- Fan Airflow: Left-to-Right
- Port surge: 6 kV
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Dimensions (W x D x H): 300 mm x 233 mm x 43.6 mm (11.81 in. x 9.17 in. x 1.72 in.)
- Weight: 2.64 kg (5.82 lbs)
- Warranty: 5 Year Manufacturer's Warranty
- Certificate: CE, FCC
Technical Specifications
The Reyee Enterprise Grade 8-Port Gigabit Layer 2 Cloud-Managed Switch simplifies network management for network admins while maintaining Enterprise-class high performance required for industrial and high-traffic commercial installs.
Equipped with 8x gigabit ethernet ports and 2 SFP+ ports for fibre optic modules or copper connections with a substantial 80 Gbps switching capacity and 58.72 Mpps forwarding rate. Features like link aggregation vastly increase available bandwidth and provide essential network redundancy, while IGMP snooping prevents unauthorized access to your connected hardware. Layer 2 technology improves and optimizes the processing speed of blockchain networks, making it an ideal solution for secure data from node-to-node transmission across a physical LAN.
Enterprise-class performance and multiple security policies make it easy for IT professionals and network admins to remotely monitor, organize and secure large-scale networks from anywhere! Convenient tabletop or rack mounting options make it easy to deploy and optimize networks in new builds or infrastructure refreshes.
RG-NBS3300-8MG2XS-P Specs and Features
- Ports: 8 x 10/100/1000Base-T ports, 2 SFP+ uplink
- Layer type: Layer 2
- Switching capacity: 80 Gbps
- Forwarding rate: 58.72 Mpps
- MAC address table: 16000
- Maximum VLAN: 4094
- Jumbo Frame (MTU): 9216
- Link Aggregation Group (LAG): 16
- ACL: 1900
- IGMP Snooping v1/v2: Supported
- CPP: Supported
- EEE: Supported
- HTTP/HTTPS: Supported
- Cloud Management: Via Ruijie Cloud
- SON (Self-Organizing Network) with IP: Supported
- Camera Recognition: Supported
- Power supply:
- Rated voltage range: 100–240 V
- Maximum voltage range: 90–264 V
- Frequency: 50/60 Hz
- Rated current: 4.5 A
- Fan Airflow: Left-to-Right
- Port surge: 6 kV
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Dimensions (W x D x H): 300 mm x 233 mm x 43.6 mm (11.81 in. x 9.17 in. x 1.72 in.)
- Weight: 2.64 kg (5.82 lbs)
- Warranty: 5 Year Manufacturer's Warranty
- Certificate: CE, FCC
