About the product

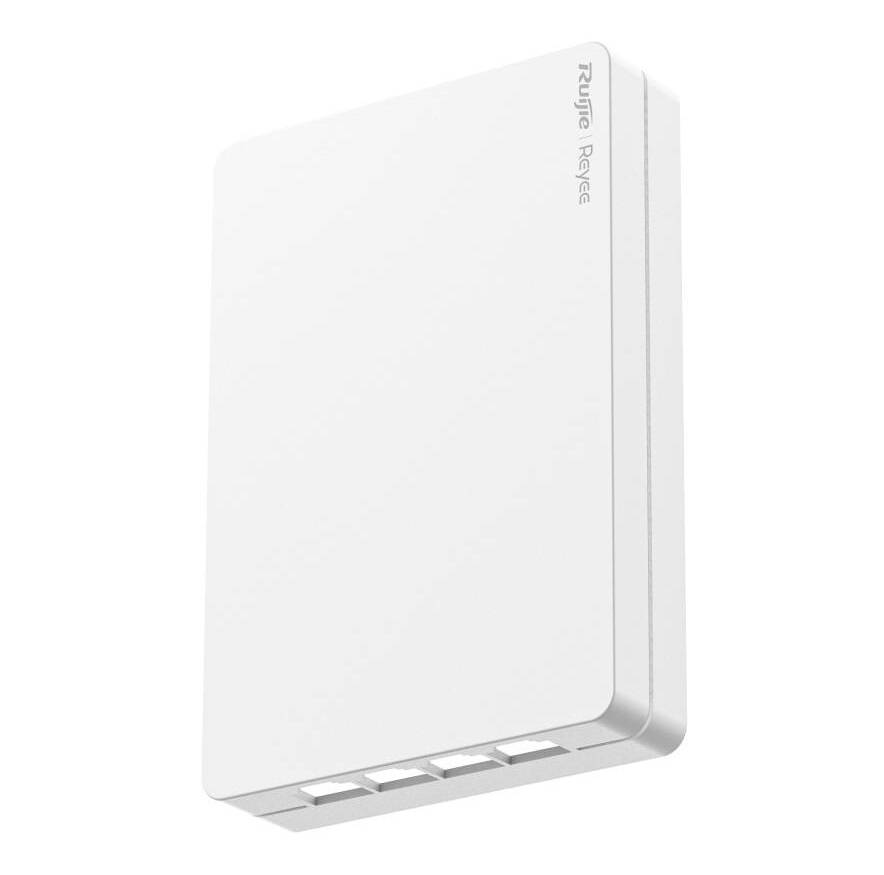

The Reyee AX3000 Wi-Fi 6 Indoor Dual-Band Wall Plate Access Point delivers cutting-edge gigabit wireless connectivity through reliable dual-radio transmission and MU-MIMO under 802.11ax for optimum performance under heavy loads from multiple users connecting on multiple different devices—all in a slim, wall-mounted profile. Perfect for hotels, conference halls, hospitals, universities, and other high-traffic sites. Capable of creating a mesh network with other Reyee APs via Reyee Mesh and 802.11/K/V/R, creating strong, powerful networks, even in large buildings.
Reduces latency for high-bandwidth tasks like video conferencing, with terminal access rate up to 900Mbps, ensuring smooth upload and download speeds—even with multiple users on a single AP. Smart AI roaming automatically switches to additional AP devices when users leave the effective range of the first signal, creating a gapless wireless signal that won’t “drop” or weaken in transitionary zones. Self-organizing network and cloud administration make maintaining and monitoring simple for the end-user. Automatic firmware and APP library updates reduce the need for extensive network maintenance for the best possible experience.
Provides up to 3000Mbps for up to 110 concurrent users, dual-band 2.4G and 5G transmission ensures reliable connections, even with obstacles like walls or racking in between the AP and the connected device. Convenient PoE power enables installers to use a single ethernet cable to power and network the device without additional power supply hardware required. Easy to install, package includes in-wall mounting hardware.
RG-RAP1260 Specs and Features
- Wi-Fi Standards: 802.11a/n/ac/ax 802.11b/g/n/ax
- MIMO: 2.4 GHz, 2x2, MU-MIMO 5 GHz, 2x2, MU-MIMO Max
- Wi-Fi Speed: 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps
- Number of Antennas: 5
- Antenna Type: Built-in omnidirectional antennas
- Antenna Gain: 2.4 GHz: 3 dBi 5 GHz: 5 dBi
- Transmit Power:
- 2400-2483.5 MHz, max output power ?30dBm & EIRP ? 36 dBm
- 5150-5250 MHz, max output power ?30dBm & EIRP ? 36 dBm
- 5250-5350 MHz, max output power <24dBm & EIRP ? 30 dBm
- 5470-5725 MHz, max output power <24dBm & EIRP ? 30 dBm
- 5725-5825 MHz, max output power ?30dBm & EIRP ? 36
- Fixed Ports: 1 x 10/100/1000Base-T Ethernet uplink port 4 x 10/100/1000Base-T Ethernet downlink ports 1 x Reset hole
- Max. Number of Concurrent STAs: 512
- Recommended Number of Concurrent STAs: 110
- Max. Number of SSIDs: 8
- Supported Frequency Bands 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
- WLAN Channel Bandwidth: 2.4 GHz: Auto/20 MHz/40 MHz 5 GHz: Auto/20 MHz/40 MHz/80 MHz/160 MHz
- Roaming: Layer 2 roaming, Layer 3 roaming, 802.11k/v/r roaming
- Supports OFDMA, Beamforming, Target Wake Time, Wi-Fi Multimedia and Radar Signal Detection and Frequency Hopping
- Automatic Wi-Fi optimization and STA limiting, including removing low-RSSI STAs
- Network Access Mode: PPPoE Client DHCP Client Static IP
- VLAN: Port-based VLAN VLAN over 802.1Q TV projection screen
- Dimensions (W x D x H): 124 mm x 86 mm x 24 mm (4.88 in. x 3.89 in. x 0.94 in.)
- Weight: 0.5 kg (1.10 lbs)
- Installation Method: In-wall mounting
- Mounting Bracket Dimensions (W x D x H): 122 mm x 80 mm x 3.8 mm (4.80 in. x 3.15 in. x 0.15 in.)
- Mounting Hole Pattern: Hole pattern 83.5 mm x 60 mm (3.29 in. x 2.36 in.)
- Mounting Hole Diameter: 2.25 mm (0.09 in.)
- Power Supply: IEEE 802.3af/at PoE
- Max. Power Consumption: 12 W
- Operating Temperature: 0°C to 40°C (32°F to 104°F )
- Storage Temperature: –40°C to +70°C (–40°F to +158°F )
- Operating Humidity: 5% to 95% RH (non-condensing)
- Storage Humidity: 5% to 95% RH (non-condensing)
- Ingress Protection Rating (IP Rating): IP41
- Surge Protection: +/–4kV
- MTBF: 400,000 hours
- Package Includes: 1x RG-RAP1260, 1x mounting bracket, 4x mounting screws, 1x user manual, 1x manufacturer’s warranty card
Technical Specifications
The Reyee AX3000 Wi-Fi 6 Indoor Dual-Band Wall Plate Access Point delivers cutting-edge gigabit wireless connectivity through reliable dual-radio transmission and MU-MIMO under 802.11ax for optimum performance under heavy loads from multiple users connecting on multiple different devices—all in a slim, wall-mounted profile. Perfect for hotels, conference halls, hospitals, universities, and other high-traffic sites. Capable of creating a mesh network with other Reyee APs via Reyee Mesh and 802.11/K/V/R, creating strong, powerful networks, even in large buildings.
Reduces latency for high-bandwidth tasks like video conferencing, with terminal access rate up to 900Mbps, ensuring smooth upload and download speeds—even with multiple users on a single AP. Smart AI roaming automatically switches to additional AP devices when users leave the effective range of the first signal, creating a gapless wireless signal that won’t “drop” or weaken in transitionary zones. Self-organizing network and cloud administration make maintaining and monitoring simple for the end-user. Automatic firmware and APP library updates reduce the need for extensive network maintenance for the best possible experience.
Provides up to 3000Mbps for up to 110 concurrent users, dual-band 2.4G and 5G transmission ensures reliable connections, even with obstacles like walls or racking in between the AP and the connected device. Convenient PoE power enables installers to use a single ethernet cable to power and network the device without additional power supply hardware required. Easy to install, package includes in-wall mounting hardware.
RG-RAP1260 Specs and Features
- Wi-Fi Standards: 802.11a/n/ac/ax 802.11b/g/n/ax
- MIMO: 2.4 GHz, 2x2, MU-MIMO 5 GHz, 2x2, MU-MIMO Max
- Wi-Fi Speed: 2.4 GHz: 574 Mbps; 5 GHz: 2402 Mbps
- Number of Antennas: 5
- Antenna Type: Built-in omnidirectional antennas
- Antenna Gain: 2.4 GHz: 3 dBi 5 GHz: 5 dBi
- Transmit Power:
- 2400-2483.5 MHz, max output power ?30dBm & EIRP ? 36 dBm
- 5150-5250 MHz, max output power ?30dBm & EIRP ? 36 dBm
- 5250-5350 MHz, max output power <24dBm & EIRP ? 30 dBm
- 5470-5725 MHz, max output power <24dBm & EIRP ? 30 dBm
- 5725-5825 MHz, max output power ?30dBm & EIRP ? 36
- Fixed Ports: 1 x 10/100/1000Base-T Ethernet uplink port 4 x 10/100/1000Base-T Ethernet downlink ports 1 x Reset hole
- Max. Number of Concurrent STAs: 512
- Recommended Number of Concurrent STAs: 110
- Max. Number of SSIDs: 8
- Supported Frequency Bands 802.11b/g/n/ax: 2.400 GHz to 2.483 GHz 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
- WLAN Channel Bandwidth: 2.4 GHz: Auto/20 MHz/40 MHz 5 GHz: Auto/20 MHz/40 MHz/80 MHz/160 MHz
- Roaming: Layer 2 roaming, Layer 3 roaming, 802.11k/v/r roaming
- Supports OFDMA, Beamforming, Target Wake Time, Wi-Fi Multimedia and Radar Signal Detection and Frequency Hopping
- Automatic Wi-Fi optimization and STA limiting, including removing low-RSSI STAs
- Network Access Mode: PPPoE Client DHCP Client Static IP
- VLAN: Port-based VLAN VLAN over 802.1Q TV projection screen
- Dimensions (W x D x H): 124 mm x 86 mm x 24 mm (4.88 in. x 3.89 in. x 0.94 in.)
- Weight: 0.5 kg (1.10 lbs)
- Installation Method: In-wall mounting
- Mounting Bracket Dimensions (W x D x H): 122 mm x 80 mm x 3.8 mm (4.80 in. x 3.15 in. x 0.15 in.)
- Mounting Hole Pattern: Hole pattern 83.5 mm x 60 mm (3.29 in. x 2.36 in.)
- Mounting Hole Diameter: 2.25 mm (0.09 in.)
- Power Supply: IEEE 802.3af/at PoE
- Max. Power Consumption: 12 W
- Operating Temperature: 0°C to 40°C (32°F to 104°F )
- Storage Temperature: –40°C to +70°C (–40°F to +158°F )
- Operating Humidity: 5% to 95% RH (non-condensing)
- Storage Humidity: 5% to 95% RH (non-condensing)
- Ingress Protection Rating (IP Rating): IP41
- Surge Protection: +/–4kV
- MTBF: 400,000 hours
- Package Includes: 1x RG-RAP1260, 1x mounting bracket, 4x mounting screws, 1x user manual, 1x manufacturer’s warranty card
